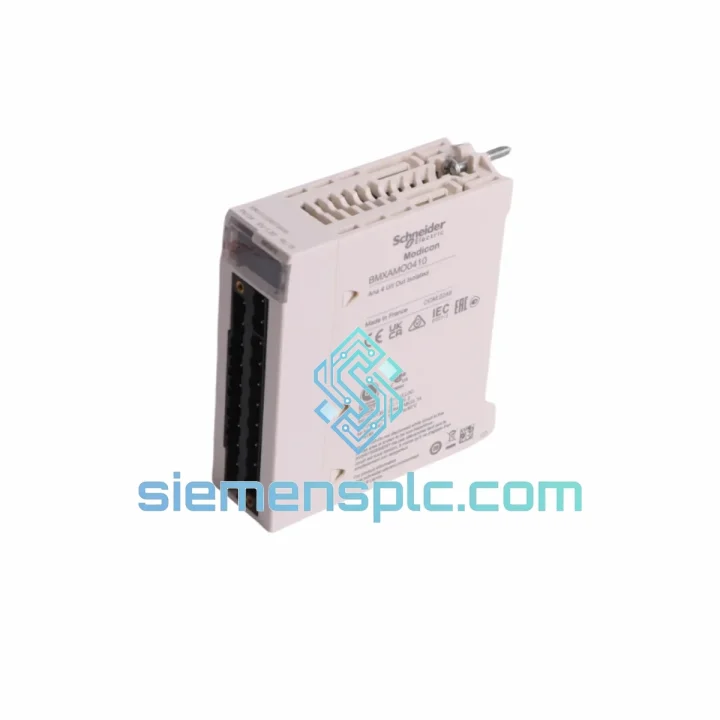

Schneider Electric BMXAMO0410 Analog Output Module – Modicon M340

Schneider Electric BMXAMO0410 — 4-Channel Analog Output Module for Modicon M340 Process Control Architectures

The BMXAMO0410 is a 4-channel analog output module engineered for the Schneider Electric Modicon M340 programmable automation controller platform. It occupies a single slot on the M340 X-Bus backplane and delivers independently configurable voltage or current output signals per channel, making it a precision signal-conditioning node between the controller’s process image and field-level actuators such as control valves, variable-frequency drives, and electro-pneumatic positioners.

Each channel supports three output modes — ±10 V, 0–20 mA, and 4–20 mA — selectable via software configuration in Unity Pro or EcoStruxure Machine Expert without any hardware jumper changes. The 12-bit digital-to-analog conversion yields a resolution of approximately 4.88 mV per LSB in voltage mode and 4.88 µA per LSB in 20 mA current mode, providing the granularity required for tight closed-loop PID regulation in continuous process environments.

The module’s update cycle is synchronized to the M340 CPU task period. In a standard MAST task configured at 10 ms, all four output channels are refreshed within that window, ensuring deterministic signal delivery to field devices. This synchronization is managed through the X-Bus backplane arbitration logic, which grants the module a fixed time slot per scan cycle, eliminating output jitter caused by bus contention.

From a hardware isolation standpoint, the BMXAMO0410 implements channel-to-bus galvanic isolation. The DAC output stage is referenced to a floating analog common, separated from the 24 V DC backplane supply rail by an isolated DC/DC converter. This architecture prevents ground loop currents — a common source of signal offset error in 4–20 mA loops — from coupling into the backplane and corrupting adjacent digital I/O modules. The isolation barrier is rated to withstand transient voltages consistent with IEC 61000-4-5 surge immunity requirements.

Short-circuit protection is implemented on each current output channel. If the loop impedance drops below the minimum load resistance threshold, the output driver limits current to a safe level and sets a diagnostic bit in the module’s status word, which the CPU can read via the I/O health monitoring DDT (Derived Data Type) structure. This allows the application program to trigger an alarm or initiate a safe-state sequence without requiring external fusing on individual loop conductors.

Wire-break detection is available in 4–20 mA mode. When the loop current falls below approximately 2 mA — indicating an open circuit — the module flags a channel fault in the process image. This diagnostic transparency is critical in safety-instrumented systems where undetected actuator signal loss could result in process deviation. The fault flag is accessible in real time through the Unity Pro I/O browser and can be mapped to HMI alarm pages without additional programming overhead.

The module draws its operating power entirely from the M340 backplane, consuming 24 V DC at a specified current that must be accounted for in the rack power budget calculation. Engineers sizing a BMX XBP rack should include the BMXAMO0410’s consumption alongside CPU, communication, and digital I/O modules to verify that the selected power supply module (BMX CPS ••••) has sufficient headroom. Schneider Electric’s SoMachine/Unity Pro rack configurator automates this calculation during project setup.

Operating temperature range spans 0 °C to +60 °C with a storage range of −25 °C to +70 °C, covering the majority of panel-mounted industrial enclosure environments. For applications in high-humidity or chemically aggressive atmospheres, the conformal-coated variant BMXAMO0410H provides additional protection without any change to electrical specifications or firmware behavior.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The BMXAMO0410’s internal architecture centers on a dedicated microcontroller that manages DAC sequencing, diagnostic polling, and X-Bus communication independently of the CPU. This local intelligence means the module does not consume CPU processing cycles for output refresh; instead, the CPU writes output values to a shared memory image on the backplane, and the module’s onboard controller reads and applies those values at its own update rate. This decoupled architecture is fundamental to achieving sub-millisecond channel update times without burdening the CPU’s MAST task.

EMC performance is addressed at the PCB layout level. The analog output traces are routed on inner layers with ground plane shielding above and below, minimizing capacitive coupling from adjacent digital signal lines. Ferrite beads are placed at the module’s terminal block interface to attenuate high-frequency conducted emissions from field wiring. The module complies with IEC 61000-4-4 (electrical fast transient/burst) at 2 kV and IEC 61000-4-5 (surge) at 1 kV line-to-earth, which are the standard immunity levels for industrial process control equipment installed in Class A environments.

The isolated DC/DC converter powering the analog output stage operates at a switching frequency above 200 kHz, placing its fundamental harmonic well outside the 50/60 Hz process signal bandwidth. Ripple on the analog supply rail is filtered to below 5 mV peak-to-peak, which translates to less than 0.05% of full-scale output noise — below the module’s stated accuracy floor. This design choice eliminates the need for external analog power conditioning in most panel installations.

Thermal management is passive. The module’s power dissipation at full load across all four channels is within the thermal budget of the M340 rack’s natural convection cooling. No forced-air cooling is required for ambient temperatures up to +60 °C, simplifying enclosure design and reducing maintenance requirements associated with fan replacement.

System Integration Benefits

• Zero-jumper channel configuration: All output mode selections (±10 V, 0–20 mA, 4–20 mA) are made in software, eliminating hardware reconfiguration during commissioning or process retooling.
• Deterministic output refresh: Channel updates are synchronized to the CPU MAST task cycle, providing predictable signal timing for closed-loop PID and feedforward control strategies.
• Native DDT integration: The module’s I/O data structure maps directly into Unity Pro’s Derived Data Type library, enabling structured variable access without manual address mapping.
• Real-time channel diagnostics: Short-circuit and wire-break faults are reported in the process image within one scan cycle, enabling the application program to respond to field wiring faults without polling delays.
• Rack power budget transparency: Precise power consumption data allows accurate sizing of BMX CPS power supply modules using Schneider Electric’s configurator tools.
• EcoStruxure Machine Expert compatibility: Full support in the current engineering environment ensures long-term software maintainability as projects migrate from Unity Pro.
• Conformal-coat upgrade path: The BMXAMO0410H variant is electrically and firmware-identical, allowing a direct hardware swap for applications requiring enhanced environmental protection without software changes.
• Broad rack compatibility: Operates in all standard M340 rack sizes (4, 8, and 12 slots), including the H-rated harsh-environment variants, providing flexibility in system architecture.
• Scalable channel density: Multiple BMXAMO0410 modules can be installed in a single rack to scale analog output capacity in 4-channel increments, up to the rack’s slot and power limits.
• Certified for global deployment: CE, UL, cUL, and RoHS certifications cover the major regulatory requirements for industrial installations across North America, Europe, and Asia-Pacific markets.

Quality Assurance & Global Logistics

Every BMXAMO0410 unit supplied by siemensplc.com is sourced through verified supply chains with full traceability to authorized distribution channels. Prior to shipment, each module undergoes a structured inspection protocol: visual examination of housing, label, and date code; connector pin integrity check; and functional verification of output signal accuracy across all four channels using calibrated test equipment. Units that do not meet Schneider Electric’s published accuracy specifications are quarantined and not shipped.

Packaging follows ESD-safe handling standards. Modules are shipped in anti-static bags within rigid foam-lined cartons, providing mechanical protection against transit shock and vibration consistent with ISTA 2A test profiles. A certificate of conformity and inspection record accompanies each shipment on request.

Logistics operations are based in Xiamen, China, with direct access to international express freight services including DHL Express, FedEx International Priority, and UPS Worldwide Express. Standard transit times to major industrial hubs are 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include tracking numbers and commercial invoice documentation suitable for customs clearance in destination countries.

A 12-month warranty covers manufacturing defects from the date of shipment. Warranty claims are processed with a target response time of 48 hours. Replacement units are dispatched upon confirmation of the defect, and failed units are returned for root-cause analysis. This warranty policy applies to all genuine Schneider Electric BMXAMO0410 units supplied through siemensplc.com.
