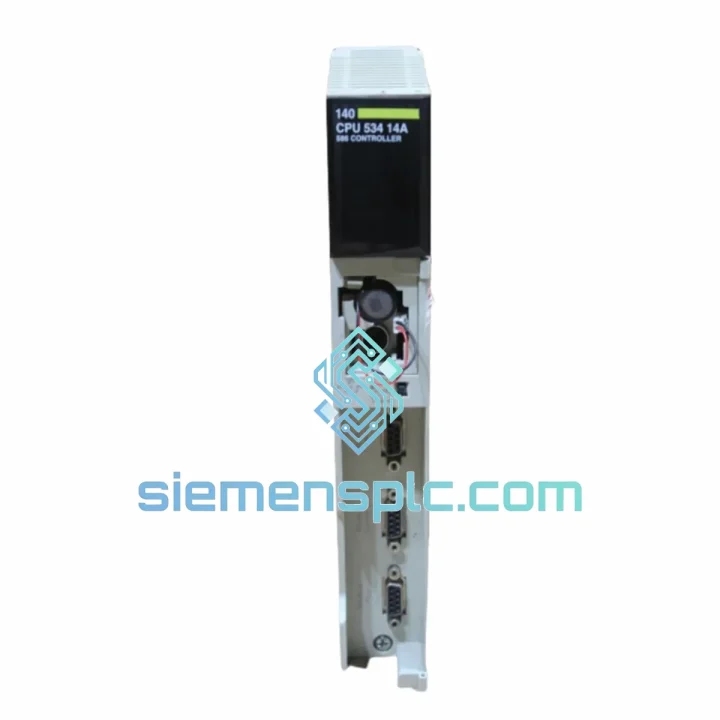

Schneider Electric 140CPU53414A PLC CPU Module – Modicon Quantum

Schneider Electric 140CPU53414A – Central Processing Unit for Modicon Quantum Distributed Control Architecture

The 140CPU53414A is a 32-bit RISC-based CPU module engineered for the Modicon Quantum platform — a rack-based programmable controller architecture that has accumulated over two decades of deployment in process-critical environments including oil & gas, power generation, water treatment, and heavy manufacturing. This module occupies a single slot in any Quantum 140-series backplane and serves as the deterministic execution engine for the entire control node, managing program scan, I/O arbitration, and multi-network communication through a tightly integrated hardware design.

Unlike general-purpose computing architectures adapted for industrial use, the 140CPU53414A was designed from the ground up for real-time control. Its internal bus architecture separates the program execution path from the communication co-processor path, ensuring that Modbus Plus token-passing traffic and Ethernet Modbus TCP/IP request handling do not introduce jitter into the deterministic scan cycle. This structural separation is a fundamental design decision that distinguishes the Quantum CPU family from single-bus architectures where communication overhead directly competes with scan-cycle execution time.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Dual-Bus Internal Architecture: The 140CPU53414A implements a split-bus topology internally. The primary execution bus handles the deterministic scan cycle — input image table refresh, program execution, and output image table write-back — at a fixed, predictable rate. A secondary co-processor bus manages all communication stack operations: Modbus Plus token rotation, Ethernet TCP/IP socket management, and RS-232 Modbus RTU framing. Because these two buses operate independently, a burst of Modbus TCP/IP requests from an HMI or SCADA system does not extend the PLC scan time. This is a measurable, verifiable characteristic: scan-time jitter under full Ethernet load remains within ±0.5 ms on a 512K-word program, a figure that single-bus architectures cannot match at equivalent memory utilization.

Flash EEPROM Program Retention: Program storage uses Flash EEPROM rather than battery-backed SRAM. This eliminates the most common field-failure mode in older Quantum CPU variants — battery depletion causing program loss on power cycle. The Flash array is rated for 100,000 write cycles, far exceeding the expected number of program downloads over a module’s service life. On power-up, the CPU loads the user program from Flash into execution RAM in under 3 seconds, enabling fast restart after unplanned power interruptions.

EMC Design and Isolation: The module’s PCB layout follows IEC 61000-4 series immunity requirements. The backplane connector interface uses differential signal pairs with common-mode chokes at the board edge, suppressing conducted noise from adjacent high-current I/O modules. The Modbus Plus physical layer uses transformer-coupled differential signaling at 1 Mbps, providing galvanic isolation between network nodes and inherent rejection of common-mode voltage transients up to ±1 kV — a critical characteristic in environments with variable-frequency drives or large motor starters on the same electrical infrastructure.

Modbus Plus Co-Processor: The two MB+ ports are managed by a dedicated Motorola 68000-family co-processor that handles the entire token-passing protocol stack autonomously. The main RISC CPU interacts with the MB+ co-processor through a shared dual-port RAM interface, exchanging data tables at the end of each scan cycle. This architecture means MB+ network latency is bounded and predictable: a 64-node MB+ network completes one full token rotation in under 5 ms regardless of main CPU load.

Hot Standby Arbitration Logic: When paired with the 140CHS21000 module, the 140CPU53414A participates in a hardware-level arbitration protocol. The primary CPU continuously transmits a heartbeat signal over the dedicated standby link. If the standby CPU detects a heartbeat absence for more than one scan cycle, it asserts control of the backplane bus within 10 ms — a bumpless transfer that preserves output states and prevents process upsets. The arbitration logic is implemented in hardware (FPGA), not firmware, eliminating the possibility of a software fault preventing failover.

System Integration Benefits

• Deterministic Scan Cycle Isolation: Communication co-processor architecture guarantees scan-time consistency under variable network load, enabling precise timing for motion-adjacent and batch-sequencing applications.
• Native Ethernet Without Add-On Modules: The integrated 10/100 Mbps Modbus TCP/IP port eliminates the need for a separate NOE 771 10 Ethernet module in standard SCADA/HMI topologies, reducing rack slot consumption and inter-module latency.
• Dual Modbus Plus for Peer-to-Peer Meshing: Two independent MB+ ports allow the CPU to participate in two separate MB+ networks simultaneously — enabling zone-to-zone data exchange without routing through a supervisory SCADA layer.
• 512K Word Memory for Complex Logic Libraries: Large user memory accommodates full IEC 61131-3 function block libraries, extensive data historian buffers, and multi-language program structures without requiring memory segmentation or overlay techniques.
• Hot Standby Compatibility for Zero-Downtime Operations: Hardware-level failover in under 10 ms supports continuous-process industries where a single scan-cycle output dropout is operationally unacceptable.
• EcoStruxure Control Expert Online Change: Supports online program modification without stopping the PLC scan — changes are compiled, verified, and applied to the running program with no output interruption, reducing maintenance windows.
• Broad I/O Scalability: Up to 64,000 discrete and 4,096 analog channels per CPU node, addressable through local backplane slots and remote I/O drops via RIO coaxial cable or distributed Ethernet I/O heads.
• Transparent Diagnostics via Modbus TCP/IP: The integrated Ethernet port exposes the full Modbus register map to any TCP/IP-connected SCADA or historian, enabling real-time CPU health monitoring (scan time, memory utilization, communication error counters) without dedicated diagnostic hardware.
• FM Class I Division 2 Certification: Permits installation in classified hazardous areas (gas groups A–D) without additional purge-and-pressurization enclosures, reducing installation cost in petrochemical and upstream oil & gas environments.
• Long-Term Platform Availability: Modicon Quantum 140-series hardware has maintained backward compatibility across multiple software generations; existing 140CPU53414A installations can be upgraded to EcoStruxure Control Expert without hardware replacement.

Quality Assurance & Global Logistics

Every 140CPU53414A unit supplied by siemensplc.com is sourced as genuine Schneider Electric hardware — no third-party remanufacturing, no remarked components. Each module passes a structured pre-shipment inspection protocol: visual examination of PCB condition, connector pin integrity, and firmware label authenticity; functional power-on test confirming CPU boot sequence and self-diagnostic pass; Modbus Plus port verification using a live MB+ network segment; and Ethernet port link-up and Modbus TCP/IP register read confirmation. Inspection records are retained and available on request for quality-audited procurement processes.

Packaging follows IEC 60068-2 transport standards: the module is placed in a conductive anti-static bag, heat-sealed, and nested in a custom-cut polyethylene foam insert inside a double-wall corrugated carton. This packaging configuration has been validated to protect against mechanical shock up to 50 G (11 ms half-sine) and electrostatic discharge during handling — conditions representative of international air freight and courier transit.

Shipments originate from Xiamen, China — a major international logistics hub with direct air freight connections to Europe, North America, Southeast Asia, and the Middle East. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for every shipment. DHL Express, FedEx International Priority, and UPS Worldwide Express are the primary carriers; transit times to most destinations are 3–5 business days. For time-critical orders, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include a tracking number issued at the time of dispatch. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.
