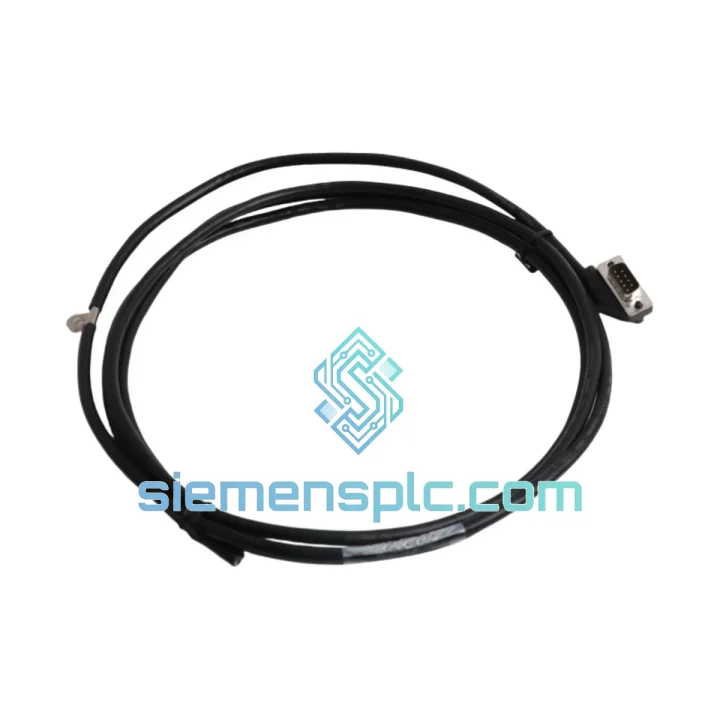

Schneider Electric 990NAD21110 PLC Connection Cable – Modicon Quantum

Schneider Electric 990NAD21110 — Modicon Quantum Series Communication Interface Cable

The Schneider Electric 990NAD21110 is a factory-specified connection cable engineered for the Modicon Quantum PLC platform. Within a distributed control architecture, the physical communication link between a CPU module and its peripheral I/O or communication nodes is not a passive conductor — it is an active determinism boundary. Any impedance mismatch, connector degradation, or shielding failure at this layer directly propagates latency jitter into the control loop, corrupting scan-cycle timing and triggering spurious fault states. The 990NAD21110 is designed to eliminate these failure vectors through OEM-matched electrical geometry, controlled-impedance construction, and connector housings rated for sustained industrial duty cycles.

Deployed across oil & gas pipeline SCADA systems, power generation turbine control panels, water treatment pump stations, and automotive assembly lines, the Modicon Quantum platform operates in environments where ambient EMI levels routinely exceed 10 V/m and thermal cycling spans −25 °C to +70 °C. The 990NAD21110 cable assembly is qualified to perform within these boundary conditions without signal degradation, making it a direct replacement or spare-stock component for maintenance engineers managing Quantum-based control infrastructure.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The Modicon Quantum backplane operates on a proprietary high-speed parallel bus architecture that arbitrates data transfer between the CPU module and up to 16 I/O or specialty modules per local rack. At the physical layer, this bus imposes strict timing constraints: setup and hold times for address and data lines are measured in nanoseconds, and any capacitive loading introduced by a non-specification cable will stretch these windows, causing intermittent read errors that manifest as diagnostic fault codes rather than hard failures — the most difficult category of fault to isolate in a live production environment.

The 990NAD21110 addresses this through three hardware-level design disciplines:

1. Controlled Differential Impedance: Signal pairs within the cable are manufactured to a target characteristic impedance matched to the Quantum bus driver output impedance. This minimizes reflections at the connector termination points, which is critical when the cable spans distances where propagation delay becomes a non-negligible fraction of the bus clock period.

2. Composite EMC Shielding Architecture: The cable employs a dual-layer shield — an inner aluminized polyester foil providing 100% optical coverage against high-frequency radiated fields, combined with an outer tinned-copper braid rated for low-frequency magnetic field attenuation. The drain wire is routed to a single-point chassis ground at the source end, preventing ground loop formation that would otherwise inject common-mode noise into the differential signal pairs. In environments with variable-frequency drives (VFDs) operating at switching frequencies of 4–16 kHz, this shielding architecture maintains signal-to-noise margins above the Quantum receiver threshold.

3. Connector Contact Geometry and Retention Force: The OEM connector housings on the 990NAD21110 are manufactured to Schneider Electric’s mechanical specification for contact normal force and wipe length. This ensures that the gold-plated contact surfaces achieve the minimum 50 mN normal force required to break through surface oxide films on mating contacts, maintaining contact resistance below 10 mΩ across the rated service life of 500 insertion cycles. Generic replacement cables frequently use lower-grade contacts that exhibit contact resistance drift after 50–100 cycles, introducing voltage drops that corrupt logic-level signals on the bus.

System Integration Benefits

• Deterministic Scan-Cycle Preservation: By maintaining bus signal integrity within OEM timing margins, the 990NAD21110 ensures the Quantum CPU completes its I/O scan within the configured scan time, preventing watchdog timeout faults that would force the CPU into STOP mode.
• Diagnostic Transparency: A correctly terminated bus allows the Quantum diagnostic buffer to accurately attribute faults to their source module rather than generating ambiguous bus communication errors, reducing mean time to repair (MTTR) during troubleshooting.
• Hot-Standby Redundancy Compatibility: In Quantum Hot Standby configurations (140CPU67160/67260 pairs), the inter-CPU synchronization link depends on deterministic data transfer. The 990NAD21110 supports the sub-millisecond synchronization window required for bumpless switchover.
• Remote I/O Drop Stability: When used in conjunction with Quantum RIO head-end adapters (140CRP series), the cable maintains the 1 Mbit/s RIO bus signal quality across the full rack-to-drop distance, preventing token-passing failures in multi-drop configurations.
• Reduced Spurious Fault Generation: Controlled impedance and shielding suppress the common-mode transients generated by adjacent power wiring, reducing nuisance trips in I/O modules that share the same cable tray routing.
• Long-Term Maintenance Cost Reduction: OEM-specified contact materials and retention forces extend the cable’s service interval beyond that of generic alternatives, reducing the frequency of planned maintenance replacements in high-cycle applications.
• Compatibility with Unity Pro / EcoStruxure Diagnostics: The Quantum platform’s software diagnostic tools (Unity Pro, EcoStruxure Control Expert) report bus health metrics that are only meaningful when the physical layer meets OEM specifications — a prerequisite satisfied by the 990NAD21110.
• Regulatory Compliance Support: For installations subject to IEC 61511 (functional safety in process industries) or IEC 62061 (machinery safety), using OEM-specified cables supports the hardware integrity argument in the safety case documentation, avoiding non-conformance findings during third-party audits.

Quality Assurance & Global Logistics

Every unit of the 990NAD21110 supplied by siemensplc.com is sourced exclusively from Schneider Electric’s authorized distribution network or verified OEM surplus channels. Prior to dispatch, each cable assembly undergoes a structured incoming inspection protocol:

• Part Number Verification: The Schneider Electric part number, date code, and country-of-origin marking are cross-referenced against the OEM product master database to confirm authenticity.
• Connector Integrity Check: Contact pins are inspected under magnification for deformation, corrosion, or plating defects. Connector housings are checked for latch mechanism function and keying alignment.
• Cable Jacket Inspection: The outer jacket is examined for cuts, abrasion, or heat damage that could compromise the shielding continuity or dielectric properties of the insulation.
• Continuity and Shield Integrity Test: Each conductor pair and the shield drain wire are tested for continuity and isolation from adjacent conductors.
• Anti-Static Packaging: Units are packed in ESD-protective bags, placed in rigid-wall cartons with foam cushioning, and sealed with tamper-evident tape. This packaging standard is maintained for all international shipments regardless of destination.

Logistics operations are managed from our warehouse in Xiamen, China — a major export hub with direct access to international freight carriers including DHL Express, FedEx International Priority, UPS Worldwide Expedited, and sea freight consolidators for bulk orders. Standard air express transit times are 3–7 business days to Europe, 5–10 business days to the Americas, and 2–5 business days to Southeast Asia and the Middle East. Full export documentation — commercial invoice, packing list, certificate of origin, and MSDS where applicable — is provided with every shipment to support customs clearance in regulated markets. The 12-month warranty covers manufacturing defects and is supported by our technical team throughout the warranty period.
