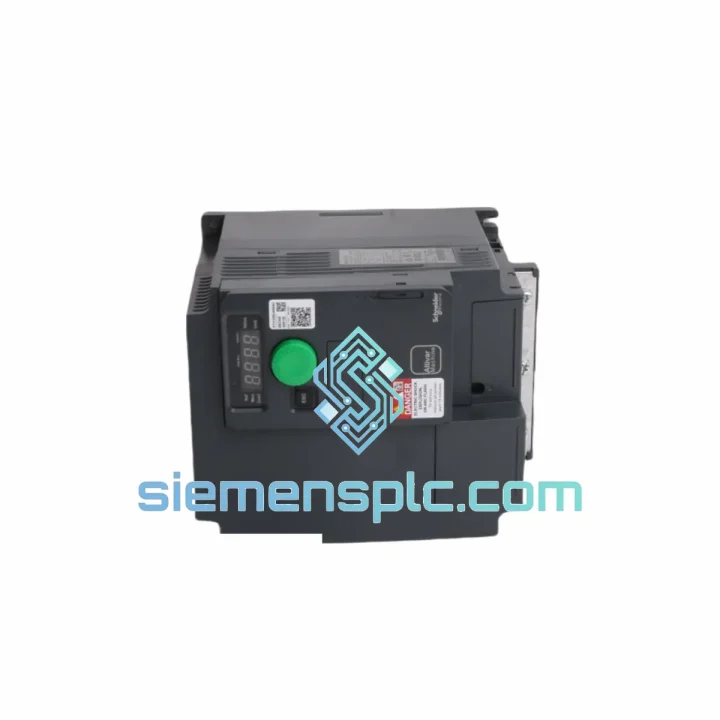

Schneider Electric ATV320U40N4C Variable Frequency Drive – Altivar 320

ATV320U40N4C — 4 kW Three-Phase Variable Frequency Drive with Integrated Class C2 EMC Filter

The Schneider Electric ATV320U40N4C is a 4 kW (5 HP) variable frequency drive from the Altivar 320 series, designed for continuous-duty motor control in industrial environments where panel space, EMC compliance, and fieldbus integration are non-negotiable engineering constraints. The “C” suffix in the part number designates a factory-integrated Class C2 EMC filter — a distinction that eliminates an external filter stage, reduces wiring complexity, and directly satisfies IEC 61800-3 Category C2 conducted emission limits without additional cabinet hardware.

This drive operates on a 3-phase 380–500 V AC supply (±15% tolerance) and delivers a rated output current of 9.5 A at 400 V, sustaining 150% overload for 60 seconds — a margin sufficient for pump start-up against closed-valve back-pressure or fan inertia during acceleration. The output frequency range of 0.5 to 500 Hz accommodates both standard 50/60 Hz induction motors and high-speed spindle applications requiring above-base frequency operation.

Control topology is selectable between Volts-per-Hertz (V/f), open-loop sensorless vector control (SVC), and closed-loop flux vector control with encoder feedback. SVC mode delivers torque accuracy within ±5% of rated torque at 1 Hz without a speed sensor — adequate for most pump and fan variable-torque loads. Closed-loop vector mode tightens speed regulation to ±0.01% of rated speed, enabling precise positioning and tension control in winding or draw-wire applications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The ATV320U40N4C is built on a three-level IGBT inverter bridge with a DC bus voltage of approximately 565 V DC at 400 V AC input. The gate driver stage employs isolated bootstrap circuits per IGBT leg, with a dead-time insertion of 2–4 µs to prevent shoot-through under all switching frequency settings. The adjustable switching frequency range of 2–16 kHz allows engineers to trade off between audible motor noise (higher kHz reduces acoustic emission) and drive thermal dissipation (lower kHz reduces IGBT switching losses).

The integrated Class C2 EMC filter consists of a common-mode choke wound on a nanocrystalline core and X/Y capacitor arrays referenced to the PE conductor. This topology attenuates common-mode conducted emissions in the 150 kHz–30 MHz band to levels below CISPR 11 Class A limits, with margin. The filter is thermally rated to the drive’s full output current, eliminating the derating penalties associated with externally mounted filter assemblies.

The STO (Safe Torque Off) function is implemented via a dual-channel hardware gate-inhibit circuit that disables both the upper and lower IGBT gate drivers simultaneously. The STO response time is <10 ms from input de-energisation to confirmed gate inhibit — verified by the internal STO diagnostic logic that monitors both channels independently. This architecture satisfies IEC 62061 SIL 2 and ISO 13849-1 PLd without requiring external safety relays or contactors in the motor circuit, reducing BOM cost and panel wiring density.

The control board runs a 32-bit DSP executing the motor control algorithm at a 4 kHz current-loop update rate. The speed observer in SVC mode uses a Luenberger-type state estimator that reconstructs rotor flux from measured stator current and voltage, compensating for stator resistance variation due to winding temperature drift. This allows stable torque delivery at low speed without encoder feedback — a practical advantage in pump and fan applications where encoder installation is mechanically impractical.

The RJ45 Modbus RTU port supports baud rates from 4800 to 19200 bps with configurable parity and stop bits. The drive’s Modbus register map exposes over 200 parameters including speed reference, output frequency, output current, DC bus voltage, drive temperature, and fault history — enabling full remote diagnostics from a PLC or SCADA system without local panel access.

System Integration Benefits

• Deterministic fieldbus response: Modbus RTU polling cycle of <5 ms at 19200 bps ensures speed reference updates are applied within one control cycle, maintaining closed-loop PID stability in pressure or flow control applications.
• Built-in PID controller: The onboard PID function block accepts a 4–20 mA process feedback signal and generates a speed reference internally, eliminating the need for an external PLC PID loop for single-drive pump or fan control.
• Multi-pump sequencing: Up to 3 auxiliary pump contactors can be staged via the programmable relay outputs, enabling a lead-lag pump control architecture without additional logic hardware.
• Energy-saving sleep/wake function: The drive monitors PID error and automatically enters sleep mode when demand falls below a configurable threshold, reducing motor run-hours and energy consumption in variable-demand systems.
• Catch-on-the-fly (flying restart): The drive detects residual motor rotation speed and phase before applying output voltage, preventing current surge and mechanical shock when restarting a coasting motor — critical in fan and pump applications with high rotor inertia.
• Thermal management transparency: The drive continuously monitors IGBT junction temperature via an NTC thermistor and reports the value over Modbus register 3201. Predictive thermal derating begins at 80% of the thermal limit, providing early warning before a fault trip occurs.
• Fault history and diagnostics: A 10-event fault log with timestamp, output frequency, output current, and DC bus voltage at the moment of fault is stored in non-volatile memory, accessible via the keypad or Modbus — reducing mean time to diagnose (MTTD) in field service scenarios.
• Plug-in communication card architecture: The option card slot accepts Schneider VW3A3xxx series cards (CANopen, PROFIBUS DP, DeviceNet, EtherNet/IP, PROFINET) without drive replacement, protecting the capital investment when network topology changes during plant upgrades.

Quality Assurance & Global Logistics

Every ATV320U40N4C unit dispatched from our Xiamen, China facility is sourced through verified Schneider Electric authorised distribution channels. Each unit undergoes a pre-shipment inspection protocol that includes label and serial number verification against Schneider Electric’s product authentication database, firmware version confirmation, visual inspection of PCB assemblies and terminal blocks, and functional power-on test with output voltage symmetry measurement across all three phases.

Units are packed in original or equivalent ESD-safe anti-static polyethylene foam inserts within double-wall corrugated cartons rated for 32 ECT. Desiccant sachets are included for humidity control during sea freight. For air freight orders, units are packed to IATA 6.2 standards. Export documentation includes commercial invoice, packing list, and certificate of origin (Form E for ASEAN preferential tariff where applicable).

Shipping from Xiamen port or Xiamen Gaoqi International Airport reaches major industrial hubs in Southeast Asia within 3–5 business days by air, 7–14 days by sea to European ports, and 5–8 business days by air to North American destinations. DHL Express, FedEx International Priority, and UPS Worldwide Express are standard carriers for urgent orders. Sea freight via COSCO, MSC, or Evergreen is available for pallet-quantity orders. All shipments are covered by cargo insurance and tracked with a consignment number provided at time of dispatch.

A 12-month warranty from the date of shipment covers manufacturing defects and component failure under normal operating conditions as defined in Schneider Electric’s product warranty policy. Warranty claims are processed within 5 business days of receipt of the returned unit at our Xiamen facility.
