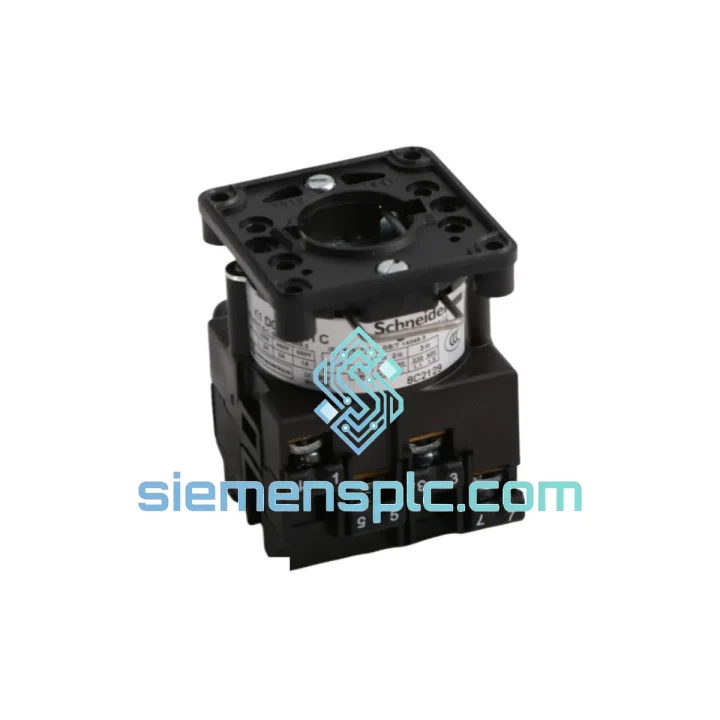

Schneider Electric K1D004NCHC Cam Changeover Switch

K1D004NCHC Down? Every Minute of Downtime Has a Price Tag — Get Back Online Fast

Your motor control panel is dead. The cam switch seized mid-rotation, the contact block burned out, or the actuator snapped under repeated cycling. Whatever the failure mode, the result is the same: production stopped, your maintenance team is staring at a panel, and procurement is scrambling. The Schneider Electric K1D004NCHC is on our shelf in Xiamen right now. We ship DHL Express within 24 hours of payment confirmation. That’s the only number that matters when your line is down.

This is not a catalog listing. This is a field-ready replacement guide written by engineers who have pulled failed cam switches out of live panels at 2 AM. Read it, order the part, get your system back.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures on the K1D004NCHC:

• Intermittent contact loss at position 2 or 3 — silver alloy contacts develop micro-pitting after 50,000+ cycles under inductive load. If your multimeter shows continuity at rest but drops out under load, the contact block is the culprit, not the cam disc. Replace the full assembly; partial contact block swaps on a worn cam body are a temporary fix at best.
• Stiff or locked rotation — the detent spring inside the cam mechanism fatigues in high-vibration environments. If the handle requires excessive torque to rotate or snaps past positions, the cam disc has deformed. Do not force it — you risk cracking the housing and contaminating the contact chamber.
• Burnt smell / discoloration at terminal screws — indicates sustained overcurrent through a high-resistance contact. Check the upstream circuit breaker coordination. A K1D004NCHC running above its rated current will fail thermally within weeks. Verify your load current against the switch’s rated Ith before reinstalling.
• Position indicator misalignment — if the front handle position does not correspond to the actual cam position, the handle-to-shaft coupling has slipped. This is a safety-critical fault. Lock out the panel before any inspection.

Step-by-step replacement procedure:

1. LOTO first. Isolate the panel, apply lockout/tagout, and verify zero energy with a calibrated voltage tester. The K1D004NCHC sits in the control circuit, but upstream bus voltage can be present on adjacent terminals.
2. Photograph the wiring before disconnection. The K1D004NCHC has multiple terminal positions. A single miswired terminal will invert your changeover logic and can cause a motor to start in the wrong direction — a dangerous condition in pump or conveyor applications.
3. Record the cam position. Note which position (0, I, II, III) the switch is in before removal. The replacement must be installed in the same position to maintain circuit continuity during commissioning.
4. Remove terminal screws systematically. Label each wire with tape flags as you disconnect. The Harmony K terminal block accepts 1.5–6 mm² conductors; check that your existing wire ferrules are undamaged before reinsertion.
5. Check the panel cutout. The K1D004NCHC uses a standard Harmony K panel cutout. If the cutout shows heat discoloration or deformation, clean and inspect before mounting the new unit. A warped panel face will prevent proper IP65 sealing.
6. Torque terminal screws to spec. Under-torqued terminals are the leading cause of premature contact failure. Schneider specifies 1.2 N·m for the Harmony K terminal block. Use a calibrated torque screwdriver — not a feel-based estimate.
7. Functional test before energizing. With the panel still de-energized, use a continuity tester to verify each switching position against the cam diagram. Confirm that position 0 is open, and positions I through III switch the correct circuit paths.
8. Energize and verify under load. Monitor current draw at each position for the first 5 minutes of operation. Any anomaly — unexpected heating, current imbalance, or control signal dropout — indicates a wiring error or a downstream fault that the failed switch was masking.

Configuration notes: The K1D004NCHC does not have DIP switches or firmware — it is a purely mechanical device. However, if you are integrating it into a PLC-controlled system where the cam position is read by digital inputs, verify that your input card’s voltage threshold matches the control voltage on the switch’s auxiliary contacts. A 24 VDC PLC input reading a 110 VAC auxiliary contact signal through an improperly rated interface relay is a common commissioning error that wastes hours of debug time.

Reliability in Harsh Conditions

The Harmony K series was not designed for climate-controlled server rooms. It was built for the environments where equipment actually fails: coastal chemical plants with salt-laden air, steel mill switchrooms running at 55°C ambient, offshore platform panels subjected to continuous mechanical vibration from diesel generators running 24/7.

The K1D004NCHC’s IP65 front-face rating means the cam mechanism and contact chamber are sealed against dust ingress and low-pressure water jets — relevant when panels are hosed down during facility cleaning or exposed to condensation cycles in unheated enclosures. The silver alloy contacts maintain stable contact resistance across the full -25°C to +70°C operating range, which matters in applications where thermal cycling causes inferior contact materials to work-harden and crack.

Vibration resistance is a function of the cam mechanism’s positive detent design. Unlike toggle switches that can vibrate out of position, the Harmony K cam locks mechanically into each position. In high-vibration environments — compressor rooms, mobile equipment, ship engine rooms — this detent action prevents inadvertent position changes that would cause uncontrolled motor starts or stops.

Units supplied through siemensplc.com are stored in climate-controlled warehousing in Xiamen. Each unit is individually packaged in anti-static, moisture-barrier packaging. We do not supply loose or bulk-packed components for critical control applications. If your application requires a humidity indicator card or desiccant pack inside the shipping carton, specify this at the time of order.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here is what the logistics chain looks like from your order confirmation to your receiving dock:

• Day 0 (Payment confirmed): Order picked from warehouse stock, inspected, and packed. Commercial invoice, packing list, and certificate of conformity prepared. Export customs declaration filed same day for orders confirmed before 14:00 CST.
• Day 1: Shipment collected by DHL Express or FedEx International Priority. Tracking number issued to your email within 2 hours of collection. For orders to the EU, HS code 8536.50 is declared on the commercial invoice to facilitate customs clearance.
• Day 2–4 (Most destinations): DHL Express transit to major hubs — Frankfurt, Dubai, Los Angeles, Singapore. Typical delivery to Western Europe: 3–4 business days. Southeast Asia: 2–3 business days. North America: 4–5 business days. Middle East: 3–4 business days.
• Customs clearance support: We provide a detailed commercial invoice with accurate HS codes, country of origin declaration (France for Schneider Electric OEM parts), and unit values. For destinations with import duty exemptions on industrial automation components, we can provide supporting documentation on request.
• Urgent same-day dispatch: For confirmed emergencies, contact us via WhatsApp before 12:00 CST. We will prioritize your order for same-day collection by the express carrier.

We do not use consolidation freight or economy postal services for industrial components. Every shipment moves on a tracked express service with full insurance coverage. If your shipment is delayed by customs or carrier issues, we actively follow up on your behalf — you will not be left chasing a tracking number alone.
