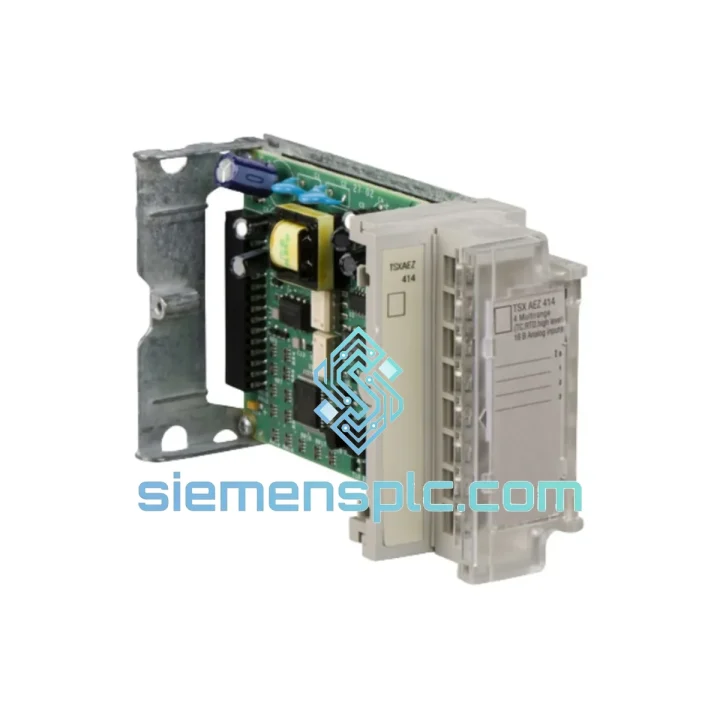

Schneider TSXAEZ414 Analog Input Module

Schneider TSXAEZ414 – Stop the Clock on Your Downtime. Ship Today.

Your line is down. Every minute costs money. The Schneider Electric TSXAEZ414 is a 4-channel differential analog input module for the TSX Premium PLC platform — and we have it on the shelf in Xiamen, ready to move via DHL or FedEx within hours of your order confirmation. No waiting on distributor lead times. No back-order limbo. You get the module, you get back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that most TSXAEZ414 failures fall into three buckets. Know them before you pull the module.

1. Channel drift / erratic readings (most common)
Symptom: one or two channels report values that wander outside expected range even with stable sensor input. Root cause is almost always capacitor aging on the signal conditioning board — accelerated by high ambient temperature above 50°C. Before condemning the module, verify your 4–20 mA loop supply voltage is stable (24 VDC ±1%). A sagging loop supply mimics a failing module perfectly. If loop supply checks out, swap the module.

2. Module not recognized after rack power-up (I/O bus fault)
The TSX Premium CPU logs a fault code %MWxy.0 word with bit 4 set when it cannot handshake with the AI module on the X-bus. Nine times out of ten this is a seating issue — the module edge connector has micro-corrosion from humidity cycling. Remove, clean the gold fingers with IPA, reseat firmly. If the fault persists after reseating, the module’s bus interface ASIC has failed. Replace the module. When installing the replacement: power down the rack completely before insertion. Hot-swap is not supported on TSX Premium AI modules regardless of what the manual implies.

3. Address conflict after replacement
TSX Premium uses rack-slot-based I/O addressing. The TSXAEZ414 does not have DIP switches — its address is derived automatically from its physical slot position. When you install the replacement in the same slot, Unity Pro / PL7 Pro will recognize it at the same address with zero reconfiguration. However, if you are forced to use a different slot (e.g., slot damaged), you must update the I/O configuration in your project and download a new application. Do not attempt to run the old application with a mismatched slot address — the CPU will fault immediately on the first scan.

Firmware note: TSXAEZ414 hardware revision B and later requires PL7 Pro ≥ V4.1 or Unity Pro ≥ V2.3. Check the revision label on the module side panel before assuming your existing software version is compatible. Revision A modules work with PL7 Pro V4.0.

Channel configuration after swap: Input range (voltage vs. current) is set in software, not hardware. Your existing Unity Pro / PL7 project retains the channel configuration — no re-parameterization needed if you are doing a like-for-like replacement in the same slot.

Reliability in Harsh Conditions

Industrial panels are not server rooms. The TSXAEZ414 was engineered for the floor, not the lab. Galvanic isolation between the field wiring and the backplane bus blocks ground loops — a daily reality in plants where welding equipment, VFDs, and analog sensors share the same cable trays. The module’s conformal-coated PCB resists condensation during temperature cycling, which matters in facilities where HVAC is inconsistent or non-existent.

Vibration tolerance meets IEC 60068-2-6 (sinusoidal) and IEC 60068-2-27 (shock) — the same standards used for rail-mounted equipment. In cement plants, mining operations, and offshore platforms where panel vibration is continuous, the TSXAEZ414’s press-fit backplane connector maintains contact integrity far longer than screw-terminal alternatives. Operating range of 0°C to +60°C covers the vast majority of industrial enclosure environments, even in summer without forced cooling.

Every unit we ship has been powered on, all four channels exercised with calibrated signal sources, and verified against factory tolerance bands. We do not ship untested stock. If a unit fails within 12 months of shipment, we replace it — no argument, no lengthy RMA process.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the country’s primary export hubs with direct DHL and FedEx gateway access. Here is exactly what happens after you confirm your order:

Day 0 (order confirmed before 15:00 CST): Module pulled from shelf, tested, packed in anti-static bag with foam insert, placed in double-wall carton. Commercial invoice and packing list generated with correct HS code (8537.10) for customs clearance.

Day 0–1: Shipment handed to DHL Express or FedEx International Priority. Tracking number sent to your email within 2 hours of pickup scan.

Transit times (typical, not guaranteed): Southeast Asia 1–2 days. Europe 3–5 days. North America 3–5 days. Middle East 4–6 days. South America 5–8 days. All shipments are door-to-door with customs brokerage handled by the carrier.

For genuinely critical situations — plant down, production stopped — contact us on WhatsApp before placing the order. We can arrange same-day pickup cutoff extension and priority lane booking with the carrier. We have done this before. We know what a stopped line costs.

Export documentation is clean. We have shipped Schneider Electric modules to 40+ countries without customs holds. Proper HS code classification, accurate declared value, and complete commercial documentation are standard practice, not an afterthought.
