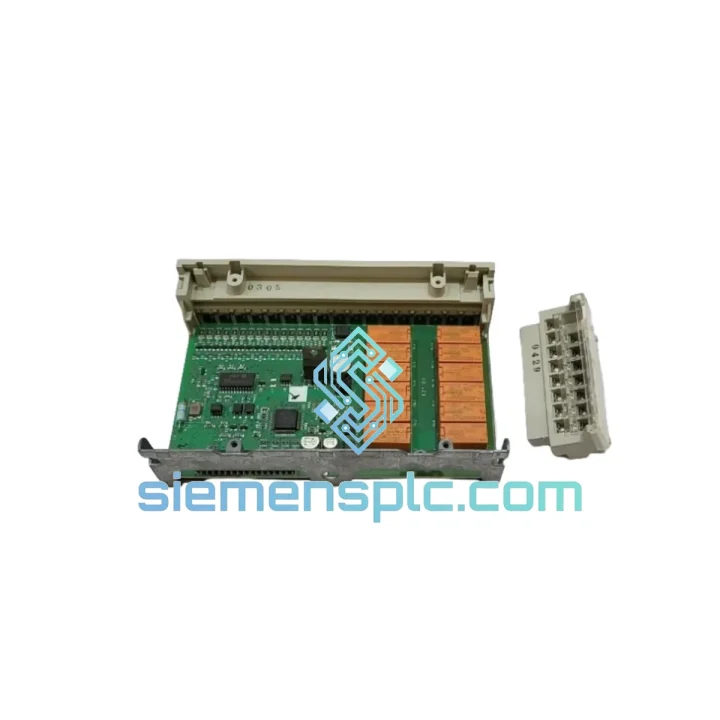

Schneider TSXDMZ28DR PLC I/O Module

TSXDMZ28DR Down? Every Minute of Downtime Costs You — Get It Back Online Now

Your TSX Micro line just stopped. The TSXDMZ28DR relay I/O base is flagged faulty. Maintenance is standing by. Procurement is calling. You’ve been here before — and you know the clock is running. We stock the Schneider Electric TSXDMZ28DR in Xiamen, inspected and ready to ship via DHL or FedEx within 24 hours of order confirmation. No waiting weeks for OEM lead times. No compromise on authenticity.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on TSX Micro systems teach you the same lessons. Here’s what actually matters when you’re swapping a TSXDMZ28DR under pressure:

1. Slot-Based Auto-Addressing — No DIP Switches Required
Unlike some older Modicon platforms, the TSXDMZ28DR uses automatic slot-based I/O addressing. The PLC assigns %I and %Q addresses based on physical slot position in the TSX 37 base rack. Before pulling the faulty module, note the slot number. The replacement must go into the exact same slot — otherwise your I/O map shifts and the program will misread field signals. Do not assume the software will auto-correct.

2. Firmware Compatibility — TSX Micro OS Version Check
If your TSX 37 base unit is running an early firmware revision (pre-V3.0), verify compatibility with PL7 Micro before powering up the replacement. Mismatched firmware can cause the base unit to reject the module or generate a configuration error on startup. Connect PL7 Pro, go to PLC → Configuration → I/O Module and confirm the module type is recognized without fault flags.

3. Common Fault Codes to Diagnose Before Replacement

• I/O Bus Fault (red LED on base unit): Could be the module or the backplane connector. Reseat the module first. If fault persists after reseating, the module is confirmed failed.
• Output Channel Fault (individual channel LED off, load not energized): Check relay coil continuity with a multimeter across the output terminals. A welded or open relay contact is the most common failure mode on high-cycle applications.
• Input Not Recognized (channel LED off, field signal confirmed present): Verify field wiring polarity. TSXDMZ28DR inputs are sink/source compatible but wiring errors cause silent failures. Check the common terminal (COM) connection.
• Module Not Detected After Power Cycle: Inspect the backplane connector pins on both the module and the rack. Oxidation or bent pins on aged racks are a frequent culprit — clean with contact cleaner before condemning the module.

4. Relay Output Derating for Inductive Loads
If your application switches solenoid valves, motor starters, or transformer primaries, the 2 A resistive rating does not apply directly. Inductive loads generate back-EMF spikes that degrade relay contacts rapidly. Install RC snubbers or MOV suppressors across each inductive load. Failure to do this is the single most common cause of premature TSXDMZ28DR relay failure in the field — and it’s entirely preventable.

5. Terminal Block Removal — Don’t Forget This Step
The TSXDMZ28DR uses a removable screw-terminal connector block. Before pulling the module, label and photograph the wiring, then remove the terminal block as a unit. It transfers directly to the replacement module. This eliminates rewiring errors and cuts swap time from 45 minutes to under 10.

6. Post-Replacement Verification Sequence
Power up the rack. Confirm no fault LEDs on the base unit. In PL7, force each output channel individually and verify field device response. Cycle each input and confirm %I bit state in the data table. Run one full machine cycle in manual mode before returning to automatic. Sign off on the maintenance log with the replacement module’s serial number.

Reliability in Harsh Conditions

Industrial environments don’t forgive weak hardware. The TSXDMZ28DR was engineered for exactly the conditions that destroy lesser modules. The relay output stage is fully isolated at 1,500 V AC from the internal bus — meaning ground faults on the field side do not propagate into the PLC logic. The module body carries IP20 protection, and when properly installed in a sealed enclosure, it handles the particulate and humidity levels typical of food processing, chemical dosing, and outdoor pump stations.

Vibration is where relay modules often fail first — solder joint fatigue and relay contact fretting are the mechanisms. Schneider’s manufacturing process for the TSX Micro I/O family uses conformal coating on the PCB and relay contact materials rated for the vibration profiles defined in IEC 61131-2. In practice, units from this series routinely exceed 15 years of service in continuous-duty applications — provided relay outputs are not overloaded and inductive suppression is in place.

Temperature cycling between 0 °C and 60 °C is within spec, but thermal management inside the enclosure matters. Ensure the rack has adequate ventilation clearance (minimum 50 mm above and below). Modules running at the top of the thermal envelope age faster. If your plant runs hot, check enclosure airflow before blaming the module.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of the most logistics-connected export hubs in Asia. From the moment your payment clears, the process is straightforward and fast:

• Day 0 — Order Confirmed: Unit pulled from stock, inspected, photographed, and packed in anti-static bag with foam-lined export carton.
• Day 1 — Dispatch: Shipped via DHL Express or FedEx International Priority with full tracking. Export documentation (commercial invoice, packing list, HS code 8537.10) prepared for customs clearance.
• Day 2–4 — Delivery: Most destinations in Europe, Southeast Asia, and the Middle East receive within 2–4 business days. North America typically 3–5 business days. Remote destinations may add 1–2 days.
• Incoterms: EXW, CIF, and DAP available for B2B purchase orders. Proforma invoice issued for wire transfer payments.
• Customs Support: We provide complete export documentation. For destinations with import duty concerns, we advise on declared value and HS classification to facilitate smooth clearance.

We have shipped TSXDMZ28DR units to manufacturing plants in Germany, Malaysia, Saudi Arabia, Mexico, and Australia — all with zero customs holds. When your line is down, logistics execution is not the place for uncertainty.
