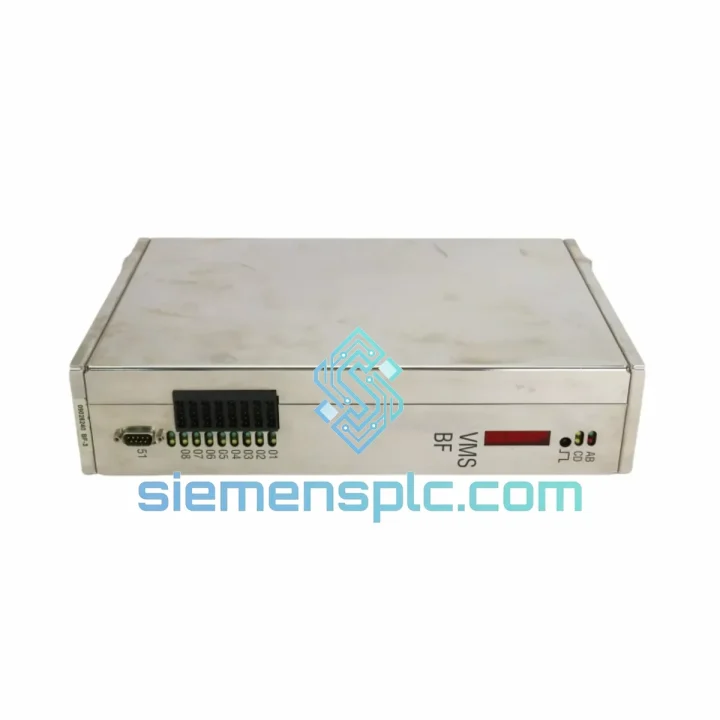

SCHUBERT 09026240 BF3-UNI3 VMS BF Control Module

SCHUBERT 09026240 BF3-UNI3 — Stop the Bleed: Every Hour of Downtime Has a Price Tag

Your Schubert TLM packaging line is down. The VMS BF control module has failed. Robotic pick-and-place arms are frozen, servo axes have lost sync, and your production supervisor is already on the phone. You know the math: a halted pharmaceutical or food packaging cell doesn’t just lose output — it triggers compliance holds, missed delivery windows, and penalty clauses. The SCHUBERT 09026240 BF3-UNI3 SEC-4400MC-UC CPASC1-M1H-K-P-2.5 CPASC1-VI-SA VMS BF Control Module is in stock at our Xiamen warehouse. We ship today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 09026240 VMS BF module:

• Error F3xx / VMS Bus Timeout: The TLM central controller loses cyclic communication with the BF3-UNI3 backplane. The HMI throws a VMS bus fault and all servo axes enter safe-stop. Root cause is typically a failed FPGA on the 09026240 or corrupted firmware in the SEC-4400MC-UC pairing. Swap the 09026240 first — it’s the faster test.
• Axis synchronization drift (E2xx codes): Intermittent position errors on pick-and-place robots during high-speed cycles. Often caused by degraded real-time clock signal on the VMS BF module. If re-homing doesn’t resolve it, the module’s internal oscillator is suspect.
• CPASC1 cascade communication loss: If the CPASC1-VI-SA interface adapter reports a link fault but the servo drives themselves test healthy, the 09026240’s downstream bus port is the failure point — not the drives.
• Module hot to the touch / thermal shutdown: The BF3-UNI3 platform runs warm by design, but sustained temperatures above 65°C at the module surface indicate a failing internal DC-DC converter. Do not attempt to run through thermal shutdowns — permanent FPGA damage follows within hours.

Replacement procedure — field-tested sequence:

1. Perform a full TLM controller backup via the Schubert service software before powering down. The parameter set for the 09026240 is stored in the central controller — you will need it for restore.
2. Power down the entire BF3-UNI3 backplane. Do not hot-swap this module. The VMS bus does not support live insertion and you risk corrupting the SEC-4400MC-UC firmware.
3. Note the DIP switch configuration on the failed module before removal. The 09026240 uses address switches SW1–SW4 to set its node ID on the VMS bus. Replicate the exact same switch positions on the replacement unit. Mismatch here causes immediate bus collision on startup.
4. Seat the replacement module firmly into the BF3-UNI3 backplane connector. The locking levers must click fully — a partially seated module will pass visual inspection but fail under vibration within days.
5. Power up and allow the TLM controller to perform its automatic node discovery. If the 09026240 does not appear within 30 seconds, recheck SW1–SW4 and the backplane connector seating.
6. Restore the parameter backup. Verify servo axis homing positions and VMS cycle time settings match pre-failure values before releasing the line to production.
7. Firmware version check: confirm the replacement module’s firmware matches the SEC-4400MC-UC version currently running. Mismatched firmware versions between the VMS BF controller and the motion controller cause subtle timing errors that only appear at full production speed — not during slow-speed commissioning.

Configuration notes: The 09026240 does not support automatic self-addressing on the BF3-UNI3 platform. Node ID is hardware-defined via DIP switches — there is no software override. If you are replacing a module that was previously configured by Schubert service, photograph the switch positions before removal. This single step eliminates the most common post-replacement commissioning failure.

Reliability in Harsh Conditions

Schubert TLM lines run in environments that would kill consumer-grade electronics inside a week. The 09026240 is engineered for exactly this reality. The BF3-UNI3 platform is designed to IEC 61131-2 environmental standards, with the VMS BF module validated for continuous operation across the following conditions:

• Vibration: Rated to IEC 60068-2-6 sinusoidal vibration profiles — the module maintains bus communication integrity even on lines with significant mechanical resonance from high-speed carton erecting mechanisms. Internal PCB components are conformal-coated and mechanically secured to prevent solder joint fatigue under sustained vibration.
• Temperature: Operating range 0°C to +55°C ambient, with short-term tolerance to +60°C. The internal thermal management relies on convective airflow through the BF3-UNI3 cabinet — ensure cabinet cooling fans are functional before blaming the module for thermal faults.
• Humidity: Rated for 5–95% relative humidity, non-condensing. In food and beverage facilities with high-pressure washdown zones adjacent to the control cabinet, condensation ingress is a real risk. Inspect cabinet door seals during any module replacement — a failed seal is often the root cause of repeated module failures in the same slot.
• EMC: The VMS BF module operates in close proximity to servo drives and high-current motor cables. The 09026240 is shielded to EN 61000-6-2 industrial immunity standards. If you are seeing intermittent VMS bus faults that correlate with servo acceleration events, check cable shielding continuity on the CPASC1 cascade wiring before condemning the module.

Every unit we ship has been bench-tested for VMS bus communication integrity, power rail stability across the full operating voltage range, and DIP switch continuity. Anti-static ESD packaging with foam cushioning is standard — not optional. We have seen too many modules arrive at site DOA because a distributor shipped them in a cardboard box with bubble wrap.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for confirmed orders received before 14:00 CST. Here is exactly what happens after you confirm your order:

• Hour 0–2: Order confirmation and export documentation preparation. Commercial invoice, packing list, and certificate of origin are generated. If you need additional documentation — EUR.1, Form A, or a specific customs declaration format — tell us at order confirmation, not after the shipment has left.
• Hour 2–4: Module pulled from stock, bench-tested one final time, ESD-packaged, and handed to the courier. We use DHL Express and FedEx International Priority as primary carriers. Carrier selection is based on your destination country’s current transit time performance — we check this at the time of booking, not by habit.
• Hour 4–6: Airway bill number issued to you via email. You can track the shipment in real time from this point.
• Transit times (typical): Southeast Asia 1–2 business days. Europe 2–3 business days. North America 2–4 business days. Middle East and Africa 3–5 business days. These are DHL/FedEx published transit times from Xiamen — customs clearance at destination is the variable. We prepare documentation to minimize customs holds.

For genuine production emergencies, contact us on WhatsApp before placing the order. We can confirm stock, generate a proforma invoice, and have the shipment booked within 90 minutes of your first message.
