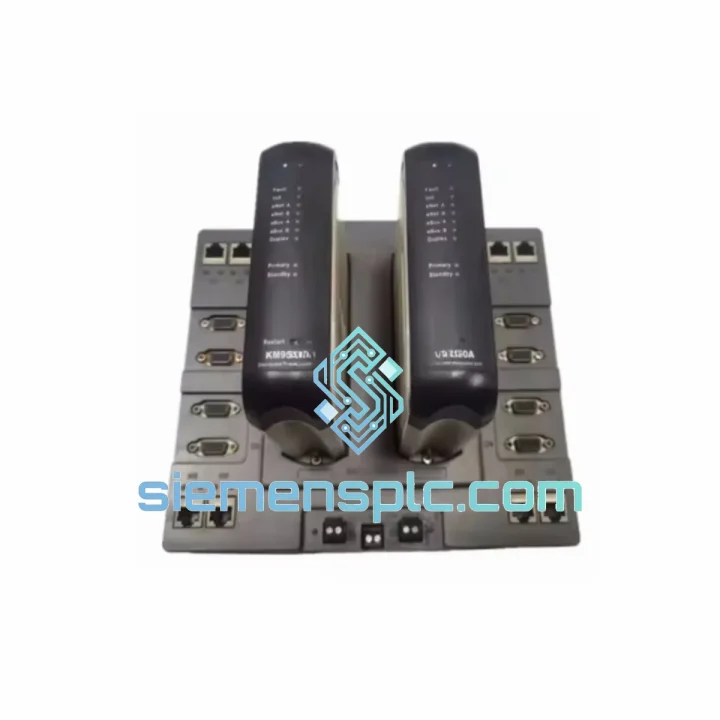

Sciyon KM950A BM131A DCS Module – MACS6 Series

Sciyon KM950A BM131A — Bus Interface Module in MACS6 Distributed Control Architecture

The Sciyon KM950A BM131A is a bus interface and communication card engineered for deployment within the MACS6 distributed control system platform developed by Sciyon (Hollysys Automation Technologies). In a MACS6 control loop, the BM131A module functions as the physical and logical bridge between the main controller backplane and the field I/O subsystem. Its role is not peripheral — without a correctly functioning bus interface card, the controller loses the ability to read process variables and issue actuator commands, effectively rendering the entire control loop inoperative.

The MACS6 platform uses a proprietary high-speed deterministic bus architecture to interconnect controller modules, I/O racks, and communication gateways. The KM950A BM131A is designed to operate natively within this bus topology, handling frame arbitration, address decoding, and cyclic data exchange at the hardware level. Unlike generic fieldbus adapters, this module’s firmware and physical layer are matched to the MACS6 backplane timing requirements, ensuring that scan cycle jitter remains within the sub-millisecond range required for closed-loop process control in power generation and petrochemical applications.

Sciyon’s MACS6 platform is installed across hundreds of thermal power plants, coal chemical complexes, and large-scale process facilities throughout China and Southeast Asia. The KM950A BM131A is a field-replaceable unit within this ecosystem, and its availability as a spare part is a direct operational requirement for any facility running MACS6 as its primary DCS platform. Procurement delays on this module translate directly into extended mean-time-to-repair (MTTR) for the affected control loop.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The KM950A BM131A implements a layered hardware architecture that separates the controller-side backplane interface from the field-side I/O signal paths using optical isolation barriers. This galvanic separation is critical in industrial environments where ground potential differences between the control cabinet and field junction boxes can reach tens of volts, particularly in large petrochemical plants with extended cable runs. The optocoupler stage on the BM131A provides a minimum isolation voltage of 500 V DC, preventing ground loop currents from corrupting digital signal integrity or damaging the controller backplane.

On the backplane side, the module implements a hardware arbitration circuit that manages bus access priority in multi-master MACS6 configurations. When redundant controller modules are present, the BM131A participates in the arbitration handshake that determines which controller holds the active token. This logic is implemented in dedicated gate-array logic rather than in firmware, reducing arbitration latency to the nanosecond range and eliminating the risk of software-induced arbitration deadlock.

The module’s EMC design incorporates multi-layer PCB construction with dedicated ground planes, ferrite bead filtering on all power supply rails, and transient voltage suppression (TVS) diodes on exposed signal lines. These measures address conducted and radiated interference sources common in switchgear rooms and motor control centers, where variable-frequency drives and high-current contactors generate broadband electromagnetic noise across the 150 kHz to 30 MHz range. The BM131A’s susceptibility threshold is designed to remain within IEC 61000-4-3 Class A limits under these conditions.

Thermal management on the BM131A relies on conductive heat spreading through the card’s aluminum substrate to the rack chassis, with no active cooling components. This passive thermal design eliminates fan failure as a reliability concern and is consistent with the MACS6 platform’s target MTBF specification for continuous process applications.

System Integration Benefits

• Deterministic Scan Cycle Compliance: The BM131A’s hardware bus interface maintains consistent data exchange timing with the MACS6 controller, preserving the deterministic scan cycle required for PID loop execution in process control applications. Cycle-to-cycle jitter is held below 1 ms under normal bus loading conditions.
• Transparent Fault Diagnostics: The module continuously monitors its own bus communication status and reports fault codes to the MACS6 engineering station via the backplane. Fault categories include bus timeout, CRC error accumulation, and power supply undervoltage — each mapped to a distinct diagnostic code for rapid fault isolation.
• Hot-Swap Replacement Without Loop Shutdown: The BM131A supports in-service replacement in MACS6 systems configured with redundant I/O paths. The replacement procedure does not require a controller restart or process loop shutdown, reducing planned maintenance windows to the time required for physical card swap and bus re-initialization (typically under 90 seconds).
• Redundancy Arbitration Support: In dual-redundant MACS6 configurations, the BM131A participates in the active/standby switchover protocol. Switchover is completed within one scan cycle, with no data loss to the historian or DCS operator display.
• Firmware Version Traceability: Each BM131A stores its firmware version and hardware revision in non-volatile memory, readable from the MACS6 engineering station without physical card removal. This supports configuration management and change control requirements under IEC 61511 functional safety frameworks.
• Reduced Wiring Complexity: The module’s backplane-powered design eliminates the need for dedicated power wiring to the card slot, reducing cabinet wiring density and the associated risk of wiring errors during maintenance.
• Compatibility Across MACS6 Rack Generations: The KM950A BM131A is compatible with multiple generations of MACS6 I/O rack hardware, allowing it to serve as a common spare across mixed-vintage installations without firmware modification.
• Integrated Signal Conditioning: The module’s field-side interface includes hardware signal conditioning that filters high-frequency noise from field wiring before digitization, reducing the burden on the controller’s software filtering algorithms and improving raw signal quality at the point of acquisition.

Quality Assurance & Global Logistics

Every Sciyon KM950A BM131A unit supplied by siemensplc.com is sourced through verified procurement channels with full traceability documentation. Each module undergoes a structured pre-shipment inspection protocol covering physical board integrity, connector pin condition, label and serial number authenticity, and packaging seal verification. Units that do not pass inspection are quarantined and not dispatched.

Packaging follows anti-static handling standards: each card is individually sealed in an ESD-protective bag, placed in foam-lined inner packaging, and enclosed in a double-wall corrugated outer carton rated for international air and sea freight handling. For multi-unit orders, individual card packages are consolidated with void-fill material to prevent movement during transit.

Shipments originate from Xiamen, China — a major international logistics hub with direct air freight connections to Singapore, Dubai, Frankfurt, Los Angeles, and Tokyo. Standard international delivery timelines are 3–7 business days for air freight to most destinations in Asia, the Middle East, Europe, and the Americas. Express options with 1–3 business day delivery are available on request. All shipments include full tracking, commercial invoice, and packing list documentation suitable for customs clearance in most jurisdictions.

A 12-month warranty is provided on all supplied modules, covering manufacturing defects and premature failure under normal operating conditions. Warranty claims are processed with a target response time of 2 business days from receipt of the defective unit.
