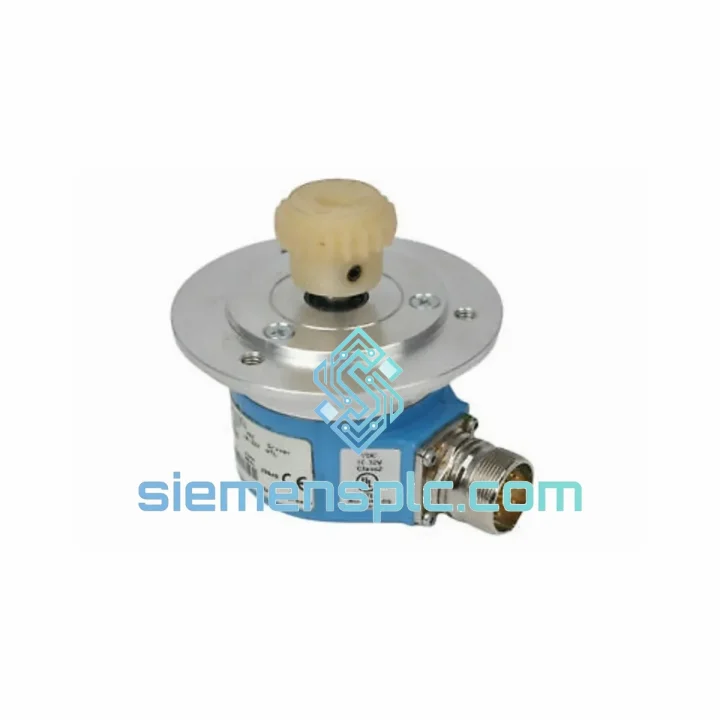

SICK DRS60-E4M01024 Incremental Rotary Encoder

SICK DRS60-E4M01024 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your servo axis has faulted. The drive is throwing an encoder error. Production is stopped. You’ve already pulled the failed unit and confirmed it’s the DRS60-E4M01024. The clock is running. This page exists for exactly that moment.

We stock the SICK DRS60-E4M01024 in Xiamen and dispatch same-day via DHL Express or FedEx Priority. From our warehouse to your dock — whether you’re in Southeast Asia, the Middle East, or Europe — transit typically runs 2–5 business days. No waiting on factory lead times. No distributor back-order queues. One call, one shipment, line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on encoder failures distill down to a short list of things that bite you during a swap. Work through these before you power up:

1. Confirm the fault is the encoder, not the cable. Encoder error codes on Siemens SINAMICS (F07801, F07802) and ABB ACS drives (Fault 91, 92) can be triggered by a broken shield, a corroded M12 pin, or a cable pinched in a cable chain — not the encoder body itself. Before pulling the encoder, swap the cable first if you have a spare. Saves 20 minutes.

2. Mechanical alignment is non-negotiable. The DRS60-E4M01024 uses a 6 mm solid shaft. When coupling to the motor shaft, angular misalignment beyond 0.5° will generate bearing load that kills the new encoder within weeks. Use a bellows coupling rated for the shaft diameter. Check runout with a dial gauge — target <0.02 mm TIR.

3. HTL output voltage must match your drive input. The DRS60-E4M01024 outputs push-pull HTL signals referenced to supply voltage (10–30 V DC). If your drive’s encoder input card expects RS-422 differential (TTL), you need a signal converter. Siemens SMC20 and SMC30 modules handle HTL natively. Verify your drive’s encoder interface specification before installation.

4. Zero/index pulse homing after replacement. After fitting the new encoder, your servo axis has lost its reference position. Execute a homing cycle before running the machine. On Siemens S7 + SINAMICS, trigger p2596 (reference point approach) or use the drive’s built-in homing mode. Skipping this step causes position offset faults on the first move.

5. Cable shielding and grounding. Ground the cable shield at the drive end only (single-point grounding). Grounding at both ends creates a ground loop that injects noise into the encoder signal — you’ll see erratic position counts and intermittent faults. Use an EMC cable gland at the drive cabinet entry.

6. Firmware and parameter check. If you’re replacing a DRS60 with a unit from a different firmware batch, verify the encoder resolution parameter in your drive matches 1024 PPR. On SINAMICS: p0408 (encoder pulses per revolution). Mismatch here causes velocity loop instability — the axis will oscillate or trip immediately on enable.

Common fault codes associated with DRS60-E4M01024 failure:

• Siemens SINAMICS: F07801 (encoder 1 signal fault), F07802 (encoder 1 zero mark fault), A07850 (encoder signal quality warning)
• ABB ACS880: Fault 91 (encoder cable break), Fault 7081 (encoder signal loss)
• Yaskawa Sigma-7: A.810 (encoder backup error), A.820 (encoder checksum error)
• Mitsubishi MR-J4: AL.16 (encoder error 1), AL.20 (encoder error 2)

Reliability in Harsh Conditions

The DRS60 platform was not designed for a climate-controlled lab. SICK engineered it for the floor — where coolant mist settles on everything, ambient temperature swings 40 degrees between morning startup and afternoon peak load, and the machine frame vibrates at frequencies that loosen connectors over months.

IP65 sealing means the encoder body withstands sustained water jets from any direction. In metalworking cells where flood coolant is standard, this matters. The shaft seal is rated for the same protection level — not just the housing. Dust ingress is fully blocked, which is critical in grinding and cutting applications where abrasive particulate is airborne.

The operating temperature range of −20 °C to +85 °C covers outdoor installations in northern climates and enclosed machine cabinets in summer without derating. Shock resistance at 100 g / 6 ms means the encoder survives the mechanical impacts common in stamping and forging environments. Vibration resistance at 20 g across 10–2000 Hz covers the full spectrum of industrial machinery resonance frequencies.

The bearing system inside the DRS60 is rated for radial loads up to 80 N and axial loads up to 40 N — sufficient for direct shaft coupling without a separate bearing support in most servo motor configurations. SICK’s manufacturing process for the DRS60 series is ISO 9001:2015 certified, with 100% functional testing of every unit before shipment from the factory.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day pick, pack, and handover to DHL Express or FedEx Priority.
• Commercial invoice and packing list: Prepared with correct HS code (8543.70 / 9031.80 depending on destination customs classification) to prevent clearance delays.
• Transit times (typical): Southeast Asia 1–3 days | Middle East 3–4 days | Europe 3–5 days | North America 4–6 days | Australia 3–5 days.
• Tracking: AWB number sent via email and WhatsApp within 2 hours of dispatch. Real-time tracking link included.
• Customs support: We provide end-use certificates and origin documentation on request for import clearance in regulated markets.
• Emergency freight: For critical shutdowns requiring next-flight-out courier, contact us directly on WhatsApp for a dedicated logistics quote.

We’ve shipped to manufacturing plants in Germany, Thailand, Saudi Arabia, Mexico, and Australia — all on urgent timelines. The process is repeatable and documented. Your procurement team will receive a complete shipping dossier for every order.

Contact Information

Ready to place an order or need a lead time confirmation before raising a PO?

• Email: [email protected]
• WhatsApp: +86 18359268345
