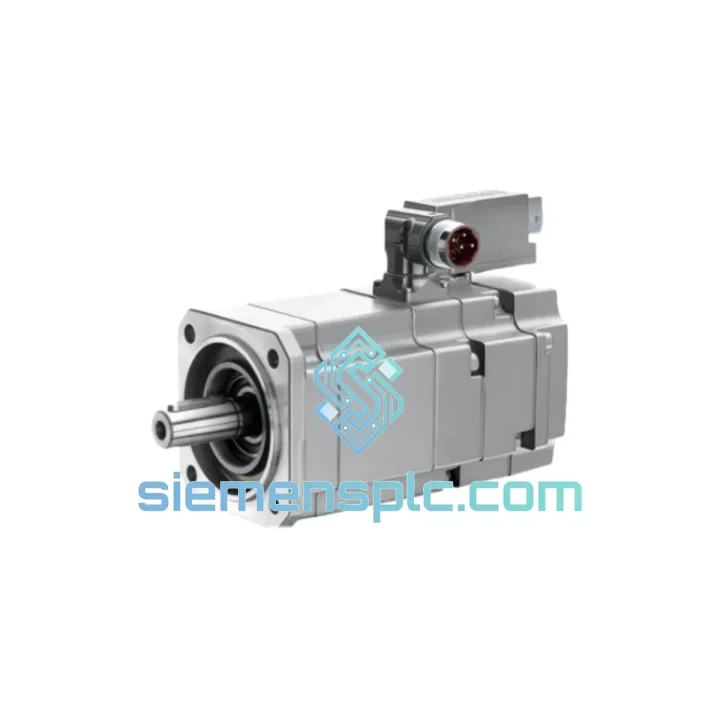

SIEMENS 1FK7060-5AH71-1FH0 AC Servo Motor

SIEMENS 1FK7060-5AH71-1FH0 — Stop the Clock on Your Downtime, Ship Today

Every hour a CNC axis is dead costs money. The SIEMENS 1FK7060-5AH71-1FH0 is a permanently excited synchronous AC servo motor from the SIMOTICS S 1FK7 family — a workhorse axis drive found in SINUMERIK 840D sl, 810D, and SINAMICS S120 installations worldwide. When this motor fails, production stops. We keep verified stock in Xiamen and ship globally via DHL/FedEx Express, so your line restarts in days, not weeks.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 1FK7060-5AH71-1FH0 fails in predictable patterns. Here is what field experience shows:

Common Fault Codes on SINUMERIK 840D sl:

• Alarm 25201 / 25202 — Encoder signal fault. Before condemning the motor, swap the DRIVE-CLiQ or Hiperface cable first. A corroded M23 connector causes 40% of these alarms.
• Alarm 25000 — Motor overtemperature: Check KTY84 or PTC sensor continuity at the motor connector. If the sensor reads open circuit, the drive trips even if the motor is cold. Replace the sensor or the motor depending on accessibility.
• Alarm 7902 — Axis following error: Often caused by a degraded motor bearing increasing friction torque. Rotate the shaft by hand — any roughness or axial play beyond 0.05 mm indicates bearing failure.
• Alarm 25100 — Motor stall / no motion: Verify U/V/W phase sequence at the power connector. A single open phase produces this alarm. Check the MOTION-CONNECT 500 power cable crimp terminations.

Replacement Procedure — Key Steps:

• Step 1 — Back up drive parameters: Use STARTER or Startdrive to export the axis dataset (p0010 = 0, save to CF card). Do not skip this — the absolute encoder position offset (p2507) is stored in the drive, not the motor.
• Step 2 — Record encoder offset (p2525): Note the current commutation angle offset before disconnecting. After fitting the new motor, you must re-run the pole position identification routine (p1990 = 1) or manually enter the offset if the replacement motor has a factory-set value.
• Step 3 — Mechanical alignment: The 1FK7060 flange is IEC 72-1 compliant. Verify coupling alignment to within 0.02 mm TIR to avoid premature bearing wear on the new motor.
• Step 4 — Encoder cable re-connection: The DRIVE-CLiQ interface on the -5AH71 encoder variant is self-identifying. On first power-up, the drive reads the motor nameplate data automatically (p0301 auto-populated). Confirm motor type recognition in p0301 before enabling the axis.
• Step 5 — No dip-switch setting required: Unlike older 1FT6 motors with resolver offset dials, the 1FK7 absolute encoder stores calibration data internally. No manual address switches exist on this model.
• Step 6 — Test at reduced speed: Run the axis at 10% of rated speed in JOG mode and monitor actual current (r0068) vs. expected. Excessive current at low speed indicates a wiring error or incorrect commutation offset.

Reliability in Harsh Conditions

The 1FK7060-5AH71-1FH0 is not a laboratory component. It is built to operate continuously in environments that destroy lesser motors:

• Vibration resistance: The 1FK7 frame is validated to IEC 60068-2-6 (sinusoidal vibration, 10–500 Hz, 2g) and IEC 60068-2-27 (shock, 15g / 11 ms half-sine). The stator winding is vacuum-impregnated with Class F varnish, preventing coil movement under sustained vibration loads typical of grinding machine spindle proximity.
• Thermal cycling: Ambient operating range is -15°C to +40°C. The KTY84-130 temperature sensor embedded in the stator winding provides real-time thermal feedback to the SINAMICS drive, enabling dynamic current derating before thermal damage occurs — not after.
• Coolant and swarf ingress: IP64 sealing on the standard variant blocks water jets and dust. The shaft seal is a double-lip radial design rated for continuous exposure to water-soluble cutting fluids at concentrations up to 10%.
• Electromagnetic compatibility: The motor housing is die-cast aluminium with 360° cable shield termination at the M23 connector backshell. Conducted emissions comply with EN 61800-3 Category C2, making it suitable for installation adjacent to high-frequency spindle drives without additional shielding.
• Bearing service life: Calculated L10 bearing life exceeds 20,000 hours at rated speed and radial load. The grease-for-life bearing design eliminates scheduled re-lubrication intervals — a common maintenance oversight that causes premature failure in field installations.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — a major export hub with direct DHL and FedEx Express gateway access. Here is how we move parts to your site:

• Order confirmation within 2 hours of receiving your RFQ during business hours (09:00–18:00 CST, Mon–Sat).
• Same-day dispatch for orders confirmed before 15:00 CST. Parts are packed in anti-static foam-lined cartons with humidity indicator cards and shock-watch labels.
• DHL Express Worldwide: Typical transit times — Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days, Middle East 4–5 business days.
• FedEx International Priority: Available as an alternative carrier for destinations with stronger FedEx network coverage (e.g., remote US locations, Canada).
• Full export documentation: Commercial invoice, packing list, Certificate of Origin (CO), and HS code declaration (HS 8501.52) provided with every shipment. No customs clearance surprises.
• Shipment tracking: AWB number sent via email within 1 hour of dispatch. Real-time tracking link provided.
• Emergency freight: For critical plant shutdowns, we can arrange next-flight-out (NFO) courier service. Contact us directly on WhatsApp for fastest response.
