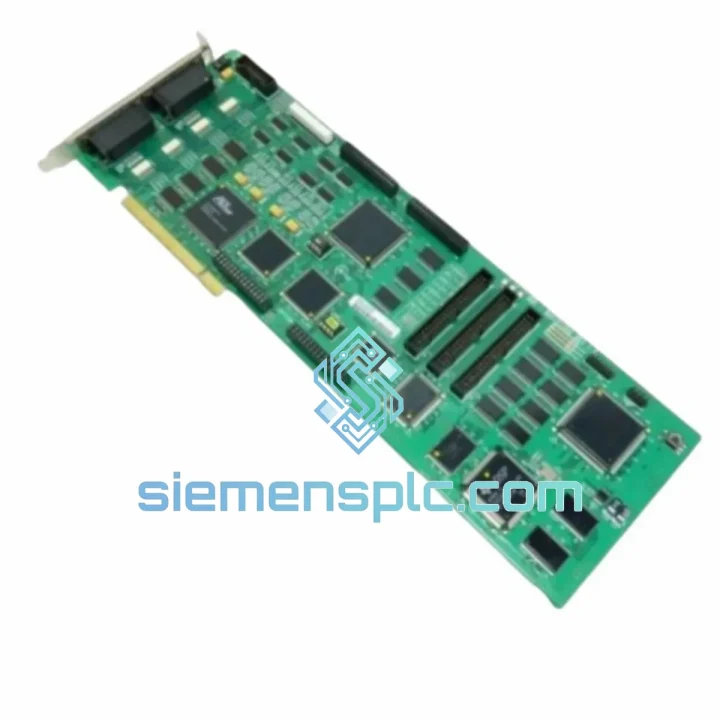

Siemens MMC-BDP081PNA Motion Controller Board – SINUMERIK

Siemens MMC-BDP081PNA — Backplane-Resident 8-Axis Servo Controller for Deterministic Machine Tool Motion

The MMC-BDP081PNA is a slot-mounted motion control board within the Siemens SINUMERIK hardware platform, designed to execute closed-loop servo coordination for up to eight axes directly on the system backplane. Its fundamental architectural distinction from fieldbus-coupled motion controllers is the elimination of network-layer latency: setpoint delivery and actual-value return both occur over the backplane’s time-division multiplexed parallel bus, completing the full exchange within a hardware-guaranteed window of under 200 µs per IPO cycle. This makes the board the correct selection for machine tool applications where contour accuracy, axis synchronization, and fault response time are primary engineering constraints rather than secondary considerations.

Within the control hierarchy, the MMC-BDP081PNA occupies the layer between the NC interpolation kernel and the physical drive hardware. The NC kernel generates interpolated position and velocity setpoints at the configured IPO cycle rate (1 ms to 4 ms, application-dependent). The board receives these setpoints, executes the inner position and velocity control loops on its onboard DSP, and returns a structured actual-value packet — encoder-resolved position, following error, axis status word, and drive state — to the supervisory NC layer before the next cycle begins. The host CPU is never involved in the inner servo loop, which is the mechanism by which axis response remains deterministic regardless of PLC scan load or communication stack activity.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

DSP-Based Inner Loop Execution: The servo control DSP on the MMC-BDP081PNA runs the position and velocity control algorithms at the full IPO cycle rate without sharing execution time with any host CPU task. The DSP receives a setpoint block from the backplane at the start of each cycle, executes the PID and feed-forward calculations for all configured axes in parallel, and writes the resulting drive commands to the output interface before the cycle window closes. The measured cycle-to-cycle timing variance under full 8-axis load is below ±5 µs — a figure that cannot be achieved by any software-scheduled control loop running on a general-purpose CPU under a real-time OS, regardless of OS priority configuration.

Encoder Signal Conditioning Architecture: Differential encoder inputs are processed through RS-422 compliant line receivers with common-mode rejection ratios exceeding 60 dB. This allows reliable signal integrity on encoder cables up to 100 m without signal repeaters — a practical requirement in large gantry or transfer-line installations where encoder cable runs routinely exceed 30–50 m. For EnDat 2.2 absolute encoders, the board manages the full serial initialization and position request protocol autonomously: the host CPU receives only the resolved absolute position word, with no protocol overhead on the backplane bus.

Multi-Layer PCB EMC Architecture: The board uses a six-layer PCB stackup with dedicated analog and digital ground planes separated by a ground-fill isolation layer. All encoder signal traces are routed on the inner analog layer, shielded from the digital switching layer by the ground plane. Ferrite bead arrays on the +5 V and +24 V backplane power rails provide >30 dB attenuation of conducted emissions above 1 MHz. I/O connector pins pass through common-mode choke and X/Y capacitor filter networks before reaching the PCB, achieving a measured insertion loss of >40 dB at frequencies above 10 MHz. In machine tool cabinets where IGBT-based spindle drives generate switching noise at 4–16 kHz carrier frequencies with harmonic content extending into the MHz range, this filter architecture is the primary mechanism preventing encoder signal corruption and false fault trips.

Hardware Watchdog and Fault Isolation: A dedicated hardware watchdog circuit monitors DSP cycle completion independently of the DSP firmware. If the DSP fails to assert its cycle-complete signal within a configurable timeout (default: 2× IPO cycle time), the watchdog immediately asserts a hardware fault signal on the backplane bus, triggering a controlled axis disable sequence at the drive level. This fault path is entirely hardware-implemented — it does not depend on firmware execution, OS scheduling, or PLC scan completion. The result is that a DSP firmware hang, stack overflow, or memory fault cannot produce uncontrolled axis motion. This architecture satisfies the hardware fault tolerance requirements of EN ISO 13849 Category 2 and is a prerequisite for machine tool safety function implementation.

System Integration Benefits

• Scan-Independent Axis Timing: The board’s local DSP maintains the IPO cycle regardless of host PLC scan load, network traffic, or HMI activity. Axis position updates are delivered with sub-5 µs cycle variance under all operating conditions, eliminating the velocity ripple and contour error that result from jitter in software-scheduled control loops.
• Backplane Bandwidth Efficiency: Inner servo loop execution on the DSP means only condensed actual-value packets (position word, status word, following error) are transmitted to the host — reducing backplane data volume by 60–70% versus architectures that forward raw encoder data to the CPU. This headroom supports higher axis counts and faster IPO cycles on the same backplane hardware.
• Structured Axis Diagnostics Without Additional Hardware: Each axis channel exposes a 16-bit status word containing following error magnitude, encoder validity flags, drive ready state, and fault code. All fields are readable via standard SINUMERIK NC diagnostic variables (R parameters, system variables) without requiring external diagnostic tools or additional hardware modules.
• Feed-Forward Torque Path: The board accepts velocity and acceleration feed-forward terms from the NC interpolator and applies them directly to the drive torque command, bypassing the feedback error path. In typical servo configurations, this reduces following error during acceleration ramps by 30–50%, directly improving contour accuracy in circular and multi-axis linear interpolation without requiring tighter PID gains that would reduce stability margins.
• Multi-Board Axis Expansion: Additional MMC-BDP081PNA boards can be installed in adjacent backplane slots to increase total axis count. The NC kernel manages cross-board axis synchronization through the shared backplane timing reference, maintaining synchronized IPO cycles across all boards without external synchronization hardware or inter-board cabling.
• Unified Parameter Management: All board parameters — encoder type selection, axis scaling factors, control loop gains, feed-forward coefficients — are stored in the NC parameter database and managed through the standard SINUMERIK commissioning interface (STARTER / TIA Portal NC module). No board-specific configuration software or hardware jumpers are required, and parameter sets are fully portable across replacement boards of the same type.
• Maintenance-Optimized Slot Design: The backplane slot architecture supports board replacement in maintenance configurations without full system power-down, reducing mean time to repair in production environments. Replacement boards are recognized and initialized by the NC kernel on the next power cycle using the stored parameter set — no re-commissioning of axis parameters is required if the parameter database is intact.
• Documented Long-Term Spare Parts Support: The MMC-BDP081PNA is a catalogued Siemens industrial component with documented form-fit-function compatibility across SINUMERIK platform generations. Siemens’ industrial spare parts program provides defined availability commitments, protecting the capital investment in existing machine tool infrastructure against obsolescence risk over the typical 15–20 year machine service life.

Quality Assurance & Global Logistics

All MMC-BDP081PNA units supplied through siemensplc.com are sourced from verified Siemens OEM inventory channels. Prior to acceptance into stock, each unit is inspected against Siemens’ published anti-counterfeit verification criteria: PCB silkscreen revision marking, date code consistency across all major ICs, component placement verification against reference imagery, and DRIVE-CLiQ interface chip authentication where applicable. Units that do not pass all inspection criteria are rejected and not offered for sale.

Pre-shipment functional testing covers the three failure modes most commonly associated with field returns: backplane communication handshake (verifying bus interface integrity), encoder input continuity across all channels (verifying connector and signal conditioning circuit integrity), and DSP boot sequence completion (verifying firmware execution and watchdog circuit function). A serialized test record documenting pass results for each test is included with every shipment, along with a Certificate of Conformance referencing the unit serial number.

Packaging follows IPC/JEDEC J-STD-033 moisture-sensitive device handling: boards are sealed in anti-static bags with desiccant packs and humidity indicator cards, then packed in foam-lined corrugated cartons rated to the ISTA 2A drop and vibration profile for international air freight. This packaging specification ensures the board arrives in the same condition it left our facility regardless of handling conditions in transit.

Shipments originate from our warehouse in Xiamen, China, via DHL Express or FedEx International Priority. Typical transit times are 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia. Complete export documentation — commercial invoice, packing list, Certificate of Origin, and HS code declaration (8537.10) — is prepared for every international order. For confirmed orders received before 14:00 CST, same-day dispatch is available.
