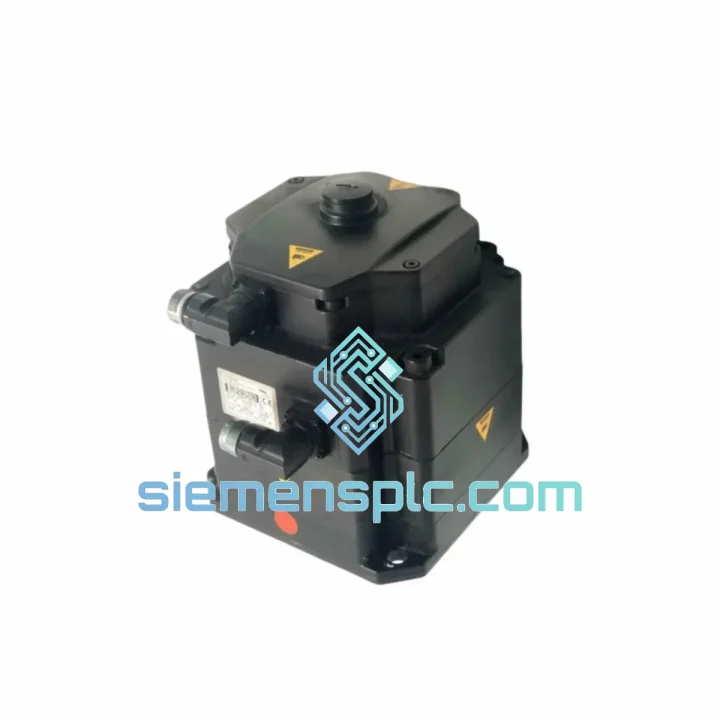

Siemens 1FK7105-5AY81-1SH3-Z/S11 Servo Motor – 1FK7 Series

Siemens 1FK7105-5AY81-1SH3-Z/S11 — Permanent Magnet Synchronous Servo Motor for High-Torque Robot Axis Applications

The Siemens 1FK7105-5AY81-1SH3-Z/S11 (KUKA cross-reference: 00-197-799) belongs to the SIMOTICS S-1FK7 Compact series — a family of permanent magnet synchronous motors (PMSM) engineered for servo axis applications where torque density, encoder fidelity, and drive-system integration are non-negotiable. Rated at 8.3 kW continuous shaft power, this frame occupies the upper mid-range of the 1FK7 portfolio and is factory-specified for KUKA KR series robot axis drives, including axes in automotive body-in-white welding cells, press-tending systems, and high-payload palletizing stations.

Each character in the Siemens order designation carries a deterministic hardware implication. The 1FK7105 frame code encodes the stator stack length and rotor diameter, both optimized for the torque-to-inertia ratio required by multi-axis coordinated motion. The 5AY81 suffix specifies the winding configuration and DC-link voltage class. The 1SH3 encoder suffix identifies a single-turn absolute encoder with DRIVE-CLiQ serial interface — 20-bit resolution, 1,048,576 positions per revolution. The Z/S11 mechanical suffix denotes a smooth shaft with keyway, dimensionally matched to KUKA axis gearbox input flanges. Substituting any suffix without engineering validation introduces risk of drive fault codes, thermal derating, or mechanical misalignment at the gearbox interface.

In production environments where unplanned servo axis failure translates to downtime costs measured in thousands of dollars per hour, sourcing the exact OEM-specified replacement — not a generic substitute — is the only path to restoring certified axis performance without full drive re-commissioning.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1FK7105 stator uses a distributed winding topology with a high copper slot-fill factor. This geometry reduces resistive (I²R) losses at rated current and allows the motor to sustain peak torque output for extended duty cycles without driving winding temperature above the Class F threshold. The rotor employs surface-mounted neodymium-iron-boron (NdFeB) permanent magnets with a high remanence flux density (B_r ≈ 1.2–1.4 T), which directly determines the motor’s torque constant (k_T) and back-EMF coefficient. The surface-mount configuration keeps rotor inertia low relative to the torque output — a critical parameter for axes executing high-acceleration, short-stroke positioning moves.

The NdFeB magnet grade selected for the 1FK7 series is rated for demagnetization resistance under the short-circuit fault currents that a SINAMICS S120 Motor Module can generate during a drive trip event. This is not a trivial design constraint: a demagnetized rotor in a robot axis motor produces a permanent reduction in k_T, which manifests as axis following error and eventual drive fault — a failure mode that is not recoverable without motor replacement.

The DRIVE-CLiQ encoder interface (suffix 1SH3) replaces the conventional resolver or incremental encoder wiring with a single shielded cable carrying both the serial encoder data stream and the 24 V DC encoder supply. The DRIVE-CLiQ protocol is a Siemens-proprietary serial interface operating at 100 Mbit/s, with cyclic data exchange synchronized to the SINAMICS S120 current controller sampling cycle (62.5 µs). This synchronization eliminates the encoder data latency that would otherwise introduce phase error into the current vector control loop — a latency that becomes significant at high shaft speeds where the electrical angle advances rapidly between samples.

The single-turn absolute encoder retains position within one mechanical revolution without battery backup, using a capacitive energy storage element to maintain the ASIC state during brief power interruptions. The SINAMICS S120 firmware reconstructs multi-turn absolute position from the drive’s internal reference after a controlled power cycle, removing the requirement for axis re-referencing after a planned shutdown — a workflow that would otherwise consume 5–15 minutes of robot downtime per axis per restart.

EMC performance is addressed at the connector level: the DRIVE-CLiQ connector shell provides 360° circumferential shield termination, and the power cable connector incorporates a sequenced PE (protective earth) contact that bonds the motor frame to the drive cabinet ground before the phase conductors make contact during mating. This contact sequencing prevents transient ground potential differences during hot-plug maintenance procedures, which can otherwise induce encoder data corruption or drive fault events.

The motor housing is die-cast aluminum alloy with an integrated fin geometry on the non-drive-end (NDE) bell. Under IC410 natural convection cooling, the thermal resistance from winding to ambient is managed through the fin surface area and the conduction path through the stator lamination stack to the housing. The IP64 seal is achieved via a labyrinth shaft seal at the drive-end (DE) bearing and a molded elastomer gasket at the terminal box — both rated for continuous exposure to coolant mist and metallic particulate typical of machining and welding environments.

System Integration Benefits

• Automatic electronic nameplate transfer via DRIVE-CLiQ: On first power-up, the motor transmits its complete electronic nameplate — rated current, pole pair count, encoder resolution, thermal model time constants, and motor inertia — directly to the SINAMICS S120 Motor Module. The drive self-configures without manual parameter entry, reducing replacement commissioning time from several hours to under 10 minutes.
• 62.5 µs current control cycle compatibility: The SINAMICS S120 current controller operates at a 62.5 µs sampling period when paired with 1FK7 motors via DRIVE-CLiQ. This enables torque rise times below 1 ms, which is a prerequisite for the coordinated multi-axis interpolation that KUKA KRC4 path planning executes during high-speed contouring moves.
• Non-volatile absolute position within one revolution: The single-turn absolute encoder eliminates the need for axis mastering after a controlled E-stop or planned power-down. Combined with the KRC4’s stored axis mastering data, the robot resumes from a known mechanical position without manual intervention — a direct reduction in restart downtime.
• Real-time I²t thermal monitoring: The SINAMICS S120 firmware runs a continuous thermal model of the 1FK7105 winding using the motor’s nameplate thermal time constants. An overload warning is issued before the physical winding temperature reaches the Class F limit, allowing the PLC or robot controller to reduce cycle rate proactively rather than triggering an unplanned emergency stop.
• PROFIdrive status word diagnostics over PROFINET: Motor utilization percentage, peak current event counters, and thermal headroom are accessible as standard PROFIdrive status words over PROFINET IO. This data can be integrated into Siemens SINEMA, Siemens MindSphere, or third-party OEE platforms without additional hardware or custom protocol adapters.
• Safe Torque Off (STO) hardware compatibility: The motor is designed for use with SINAMICS S120 Safety Integrated Basic Functions. STO disables the drive output stage without removing the DC bus voltage, enabling faster axis restart after a safety event compared to a full DC bus discharge and recharge sequence — typically reducing safety-stop recovery time by 30–60 seconds per event.
• IEC 72-1 mechanical interchangeability across KR variants: The 1FK7105 mounting flange and shaft dimensions conform to IEC 72-1, ensuring dimensional compatibility with KUKA axis gearbox input interfaces across KR 60, KR 90, and KR 120 robot variants that use this frame size. No gearbox adapter plate or shaft modification is required for a like-for-like replacement.
• Unified connector family across 1FK7 frame sizes: The DRIVE-CLiQ and power connector families used on the 1FK7 Compact series are shared across multiple frame sizes. A single set of connector spares covers multiple motor variants in a mixed-robot installation, reducing MRO inventory SKU count and associated carrying cost.

Quality Assurance & Global Logistics

Every unit dispatched by siemensplc.com is sourced through verified supply channels with full traceability to Siemens AG manufacturing records. Prior to dispatch, each motor undergoes a structured incoming inspection: label authenticity verification against Siemens holographic security features, connector pin continuity check using a calibrated tester, DRIVE-CLiQ encoder handshake verification where test equipment permits, and visual inspection of the shaft seal condition and bearing end-play. Units that do not pass all inspection checkpoints are quarantined and removed from available stock.

Packaging conforms to IEC 60068-2 transport stress guidelines: the motor is wrapped in anti-static polyethylene foam, placed in a rigid corrugated carton with a minimum 50 mm clearance on all faces, and sealed with tamper-evident tape. International shipments include a desiccant sachet to control humidity during ocean freight transit. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8501.53) — is prepared for every shipment to facilitate customs clearance in the destination country without delay.

Dispatch from our Xiamen, China warehouse is executed within 1–3 business days of order confirmation. Express air freight via DHL, FedEx, or UPS reaches most destinations in Europe, North America, Southeast Asia, and the Middle East within 3–7 business days. Sea freight consolidation is available for multi-unit orders where lead time permits. All shipments include a carrier tracking number issued at dispatch. A 12-month warranty from dispatch date covers manufacturing defects, processed under a replacement-first policy to minimize customer production downtime.
