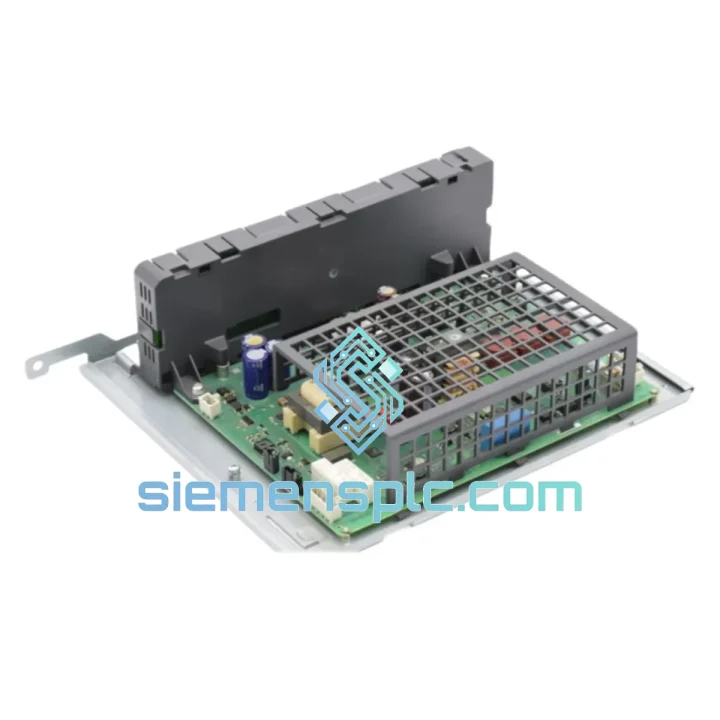

Siemens 6SL3200-0SP01-0AA0 Drive Module – SINAMICS S120

Siemens 6SL3200-0SP01-0AA0 — Supplementary System Power Module for SINAMICS S120 Drive Line-Up

The Siemens 6SL3200-0SP01-0AA0 is a factory-original supplementary power component engineered for integration within the SINAMICS S120 booksize drive system. Its primary function is to extend the DC-link bus capacity and provide a defined low-impedance interconnection path between adjacent drive modules on a shared DC bus rail. In multi-axis servo configurations where regenerative energy must be redistributed across axes rather than dissipated as heat, this module acts as the passive backbone that maintains DC-link voltage stability within the ±10 V tolerance band required by the CU320-2 control unit’s voltage monitoring threshold.

Unlike active line modules that perform AC-to-DC rectification, the 6SL3200-0SP01-0AA0 operates purely at the DC bus level. It carries no switching transistors, no gate-driver circuitry, and no firmware dependency — making it one of the most mechanically and electrically robust components in the S120 booksize family. Its mean time between failures (MTBF) is substantially higher than active power stages, and it requires no firmware update cycle throughout its service life.

In practical terms, this module is specified when the system designer calculates that the aggregate DC-link capacitance of the installed motor modules is insufficient to absorb the peak regenerative pulse from a high-inertia load — such as a centrifuge spindle, a large-format press flywheel, or a winding tension control axis. By inserting the 6SL3200-0SP01-0AA0 between the active line module and the first motor module, the engineer increases the effective bus capacitance, reduces the rate of voltage rise (dV/dt) during regenerative braking events, and prevents nuisance over-voltage trips that would otherwise interrupt the production cycle.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SL3200-0SP01-0AA0 is constructed around a low-ESR (Equivalent Series Resistance) DC bus capacitor bank housed within a booksize-format enclosure that mechanically and electrically mates with the S120 drive line-up via the shared DC bus bar and the 24 V DC auxiliary power rail. The following hardware design characteristics are noteworthy for system engineers:

DC Bus Capacitor Architecture: The internal capacitor bank uses film-type capacitors rather than electrolytic types. Film capacitors exhibit no electrolyte degradation over time, maintain stable capacitance across the full operating temperature range (±5 % from −25 °C to +85 °C), and tolerate higher peak ripple currents without thermal stress. This directly extends the service interval compared to electrolytic-based designs common in lower-cost drive accessories.

EMC Shielding and Bus Bar Geometry: The DC bus bar within the module is designed with controlled impedance geometry. The flat, wide copper bus bar minimizes parasitic inductance (target: <50 nH across the module length), which is critical for suppressing high-frequency voltage spikes generated during IGBT switching transitions in adjacent motor modules. Lower bus bar inductance means the dV/dt seen at the capacitor terminals is reduced, protecting both the capacitors and the connected motor module input stages.

Thermal Management Integration: The module shares the forced-air cooling channel of the S120 booksize line-up. Internal thermal sensors (NTC type) report module temperature to the CU320-2 via the DRIVE-CLiQ interface on the adjacent active line module. If the module temperature exceeds the 70 °C threshold, the control unit issues a warning (A07910 class) before triggering a fault shutdown, giving the system time to execute a controlled ramp-down rather than an abrupt trip.

Mechanical Locking and Bus Bar Contact Integrity: The booksize connector system uses a spring-loaded bus bar contact that maintains a minimum contact force of 50 N across the full vibration envelope specified in IEC 60068-2-6. This eliminates the risk of intermittent contact resistance increases that could cause localized heating at the bus bar joint — a failure mode common in systems using bolted bus bar connections that are subject to thermal cycling.

System Integration Benefits

• DC-Link Voltage Stabilization: Increases aggregate DC bus capacitance, reducing peak voltage overshoot during regenerative braking from high-inertia loads by up to 15–20 % depending on system configuration, keeping bus voltage within the CU320-2 monitoring window.
• Reduced Nuisance Trips: By damping the dV/dt of regenerative pulses, the module eliminates F30002 (DC link overvoltage) faults in multi-axis systems where axes decelerate simultaneously.
• No Firmware Dependency: The module contains no programmable logic. It is transparent to TIA Portal commissioning workflows and requires zero configuration steps in Startdrive or STEP 7.
• Plug-and-Play Booksize Integration: Mechanical and electrical mating is achieved through the standard S120 booksize bus bar system. No additional wiring, terminal blocks, or cable assemblies are required.
• Extended Drive Line-Up Scalability: Allows system designers to add motor modules to an existing line-up without recalculating the active line module’s DC bus capacitance margin — the supplementary module absorbs the incremental capacitance deficit.
• Diagnostic Transparency via DRIVE-CLiQ: Temperature data is reported to the CU320-2 in real time, visible in the Startdrive diagnostics panel and loggable via the S7-1500 OPC UA server for predictive maintenance workflows.
• Compatibility with Braking Modules: The module is fully compatible with the SINAMICS S120 Braking Module (6SL3100-1BE21-3AA0 and variants), allowing the system to combine capacitive energy buffering with resistive braking for applications with extreme regenerative energy profiles.
• Long Service Life: Film capacitor technology and the absence of active switching components result in a component with a design service life exceeding 20 years under standard industrial duty cycles, reducing lifecycle replacement costs.

Quality Assurance & Global Logistics

Every Siemens 6SL3200-0SP01-0AA0 unit dispatched from our Xiamen, China facility is a factory-original Siemens AG component. We do not stock remanufactured, relabeled, or third-party substitute parts. Each unit is verified against the following criteria before packaging:

• Label integrity check: MLFB order number, date code, and serial number verified against Siemens product database format.
• Physical inspection: bus bar contacts, housing latches, and DRIVE-CLiQ port (if applicable) inspected for mechanical damage.
• Anti-static packaging: each module is sealed in an ESD-protective bag (surface resistance <10⁹ Ω per IEC 61340-5-1), placed in foam-lined carton with minimum 50 mm cushioning on all faces.
• Export documentation: commercial invoice, packing list, and certificate of origin prepared to destination country customs requirements.

Shipping from Xiamen, China: DHL Express (3–5 business days to EU/US), FedEx International Priority, and UPS Worldwide Express are standard options. Sea freight (LCL/FCL) is available for bulk orders. In-stock units ship within 1–2 business days of payment confirmation. Tracking numbers are provided within 24 hours of dispatch.

12-Month Warranty: All units carry a 12-month warranty from the date of dispatch. Warranty claims are processed within 5 business days. Replacement units are dispatched before the defective unit is returned for qualified B2B accounts.
