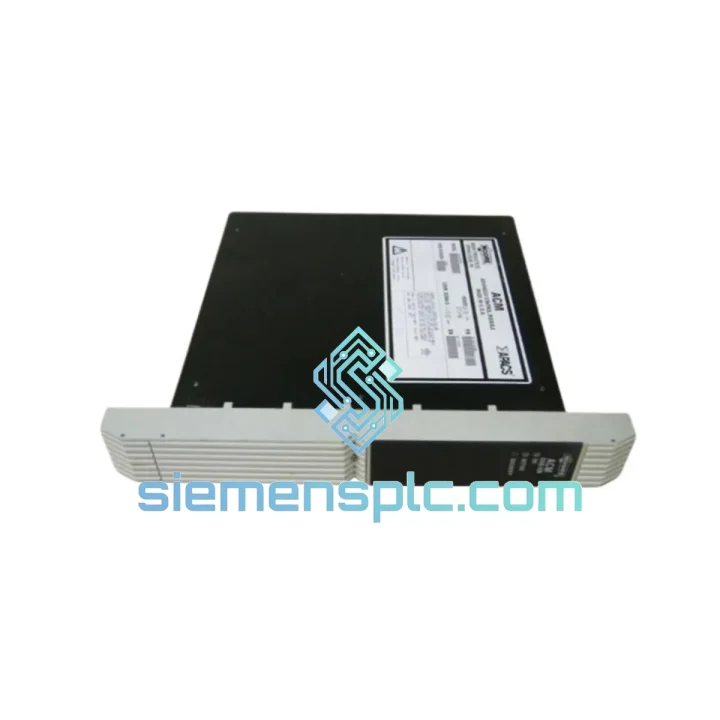

Siemens 39ACM24BAN 16139-76/09 Advanced Control Module

Siemens 39ACM24BAN 16139-76/09 – Stop the Clock on Your Downtime

Your TELEPERM M loop is dead. The board is gone. Every hour that distillation column, boiler, or reactor sits idle is burning money — and your maintenance window is already closing. The Siemens 39ACM24BAN (16139-76/09) Advanced Control Module is on the shelf in Xiamen right now. We ship same day. DHL Express puts it at your door in 24–72 hours, anywhere on the planet. That’s the only number that matters when you’re staring at a flatlined trend screen at 2 AM.

URGENT REQUIREMENT?
📧 [email protected] | 📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience — not the manual.

Step 1 — Confirm the fault before you pull the card. On the TELEPERM M front panel, a steady red LED on the ACM slot combined with a “Module Failure” alarm on the OS indicates a hardware fault, not a configuration issue. If the LED is flashing amber, check the backplane bus first — a loose rack connector has killed more ACMs than actual component failure.

Step 2 — Note your revision before ordering. The /09 revision is backward-compatible with /07 and /08 backplanes, but if your system software is running a release older than the mid-1990s baseline, the extended diagnostic registers in /09 may not be polled correctly. The loops will still run — you just lose some fault detail. Confirm your TELEPERM M software version before assuming full feature parity.

Step 3 — No DIP switch re-configuration required for standard swap. Unlike some I/O modules in the 6DS1 series, the ACM does not use hardware address switches for slot assignment. Slot addressing is handled via the backplane bus and the system configuration database. Slot-pull and re-insert is sufficient — the module self-identifies on power-up.

Step 4 — Re-parameterize, don’t assume. After seating the replacement module, force a configuration download from the engineering station. Do not assume the module will inherit parameters from the failed unit — ACM parameters are stored in the system database, not on the module EEPROM. A missing download step is the single most common cause of “replaced the card but the loop still won’t tune” callbacks.

Step 5 — Verify analog I/O channel calibration. After download, put the loop in manual, apply a known 4 mA and 20 mA reference to each input channel, and verify the engineering unit readback matches expected values. Factory calibration on surplus units is intact, but field wiring resistance variations can shift zero by 0.1–0.3% — enough to cause offset in tight flow control loops.

Common fault codes on TELEPERM M OS:

• “ACM FAIL” — Module not responding on backplane bus. Check power supply rail voltage at the rack; below 22 V DC will cause intermittent module dropouts before full failure.
• “LOOP DEVIATION” — PV/SP deviation exceeds configured alarm band. Usually a field instrument issue, not the ACM — but a failing ACM output DAC can cause the valve to stick at last output value, mimicking a process upset.
• “CONFIG MISMATCH” — Module hardware revision does not match the revision recorded in the system database. Update the database entry to /09 and re-download.
• “AI OVERRANGE” — Input signal exceeds 20.5 mA. Check field transmitter power supply and loop wiring before condemning the module.

Reliability in Harsh Conditions

The 39ACM24BAN was not designed for a climate-controlled server room. It was built for the real world — the kind where ambient temperature in the control room hits 55 °C in summer, where the floor vibrates from a 10 MW turbine running 30 meters away, and where a coastal refinery’s salt-laden air gets into every unsealed enclosure.

The PCB uses conformal coating on signal-layer traces, providing a moisture and contamination barrier that keeps corrosion off the analog signal paths even in high-humidity environments. The DIN 41612 backplane connector uses gold-plated contacts rated for 500+ insertion cycles — critical for a module that may be pulled and reseated during every annual shutdown. Onboard power conditioning handles supply rail noise up to the EN 61000-4-4 burst immunity level, which means a nearby VFD switching transient won’t corrupt your PID output mid-cycle.

Vibration performance meets IEC 60068-2-6 — tested at 10–150 Hz sweep with 1 g acceleration. In practice, units installed in turbine hall control panels adjacent to rotating machinery have run continuously for 8–12 years without mechanical failure of the PCB assembly. The 6U Eurocard form factor with positive rack retention means the module cannot work itself loose from vibration alone.

Thermal cycling is the real long-term killer for DCS hardware. The 39ACM24BAN’s operating range of 0–60 °C with a storage range down to −25 °C means it survives the cold-start conditions in unheated substations during winter commissioning, then runs continuously at elevated temperatures without derating. Electrolytic capacitors on the power supply section are the first components to age — our inspection process specifically checks for capacitor bulge and ESR drift before any unit ships.

Global Express Logistics

Stock is held at our Xiamen warehouse, positioned specifically for fast international dispatch. Xiamen Gaoqi International Airport has direct freight connections to DHL and FedEx hubs, which means your order doesn’t sit in a domestic consolidation center before it starts moving toward you.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 1–2 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Kuwait): 2–3 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 2–4 business days via DHL Express Worldwide
• North America (USA, Canada): 3–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 4–6 business days via DHL Express
• Australia / New Zealand: 2–3 business days via DHL Express

What’s included with every shipment:

• Anti-static bag + foam-lined double-wall carton
• Humidity indicator card (for moisture-sensitive international routes)
• Commercial invoice with HS code 8537.10 and country of origin declaration (Germany)
• Packing list and inspection record
• DHL/FedEx tracking number provided within 2 hours of dispatch

For orders placed before 14:00 CST on business days, same-day dispatch is standard. Emergency orders flagged via WhatsApp before 12:00 CST can be dispatched within 4 hours of payment confirmation. We handle export documentation in-house — no third-party freight forwarder delays.
