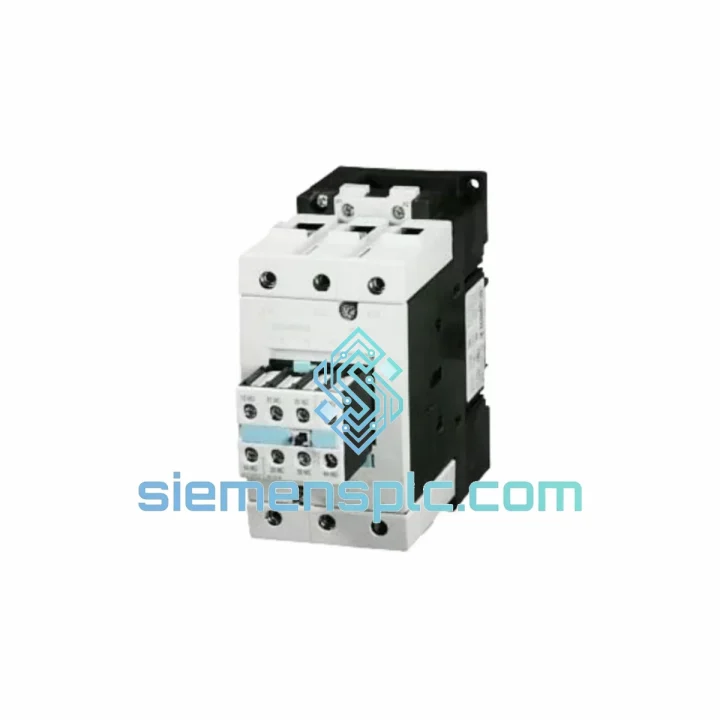

Siemens 3RT1046-1AN20 AC Contactor – SIRIUS 3RT Series

Siemens 3RT1046-1AN20 AC Contactor 95A 220V Coil S3 Frame — Core Role in Motor Control Circuits

The Siemens 3RT1046-1AN20 is a three-pole, non-reversing AC contactor from the SIRIUS 3RT series, designed for direct-on-line motor switching in industrial power distribution and motor control center (MCC) applications. Rated at 95 A under AC-3 duty (IEC 60947-4-1), it handles squirrel-cage induction motors up to 45 kW at 400 V and up to 55 kW at 690 V. The control coil operates at 220 V AC, 50/60 Hz, making it directly compatible with standard single-phase auxiliary supply rails common in European and Asian industrial installations.

Within a control loop, the 3RT1046-1AN20 functions as the primary power-switching element between the upstream protective device (typically a 3RV motor circuit breaker or fuse combination) and the motor terminals. Its main contacts carry full load current continuously, while the integrated auxiliary contact block interface allows interlocking with PLCs, safety relays, or overload relays without external wiring adapters. The contactor’s mechanical and electrical endurance ratings — 10 million mechanical operations and 1 million electrical operations at AC-3 — position it for high-cycle applications such as compressor drives, conveyor systems, and pump stations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3RT1046-1AN20 employs a double-break main contact geometry per pole. Each pole contains two contact bridges that open simultaneously, distributing the arc energy across two quenching gaps rather than one. This halves the arc voltage stress per gap and significantly extends contact life under repetitive switching loads — a measurable advantage in applications with frequent start-stop cycles such as cooling tower fans or batch conveyor drives.

The magnetic circuit uses a laminated silicon-steel E-I core with a shading ring on the stationary pole face. The shading ring — a short-circuited copper band — generates a phase-shifted flux component that prevents the armature from releasing during the zero-crossing of the AC supply, eliminating the 100/120 Hz mechanical chatter that would otherwise cause contact bounce and accelerated wear. This is a fundamental design requirement for AC-operated contactors and is implemented with precision in the SIRIUS 3RT platform.

EMC performance is addressed at the coil suppression level. The 3RT1046-1AN20 accepts optional surge suppressor modules (RC element or varistor type, e.g., 3RT2916-1EA0) that clamp the inductive kick voltage generated when the coil de-energizes. Without suppression, coil de-energization can produce transients exceeding 1,000 V, which couple into adjacent signal wiring and degrade PLC digital input reliability. The suppressor module mounts directly onto the contactor body without additional wiring, maintaining panel wiring density.

The auxiliary contact block interface on the 3RT1046-1AN20 accepts snap-on auxiliary contact modules (3RH2911 series) that expand the signaling capacity to up to 4 NO + 4 NC without increasing the contactor’s footprint. The auxiliary contacts are mechanically linked to the main armature through a positive-opening mechanism, ensuring that the NC auxiliary contact physically cannot remain closed if the main contacts have welded — a safety-critical feature required by IEC 60947-5-1 for interlocking circuits.

System Integration Benefits

• Direct SIRIUS ecosystem compatibility: The 3RT1046-1AN20 mounts directly alongside 3RV2 motor circuit breakers and 3RU2 overload relays on a shared busbar system, eliminating inter-device wiring and reducing panel assembly time by a measurable margin compared to discrete component wiring.
• Deterministic switching latency: Operate time (coil energization to main contact closure) is specified at ≤20 ms, and release time at ≤20 ms, providing predictable timing margins for PLC-controlled sequencing without requiring empirical tuning of output delays.
• Integrated diagnostic transparency: The auxiliary contact state is directly readable by PLC digital inputs, enabling real-time feedback on contactor position without additional current sensors. This supports contactor-welding detection logic in safety-rated control programs.
• Modular auxiliary expansion: Snap-on 3RH2911 auxiliary contact blocks add signaling channels without rewiring, supporting multi-zone interlocking schemes in MCC configurations with minimal engineering overhead.
• Coil voltage tolerance: The 220 V AC coil operates reliably across 85–110% of rated voltage (187–242 V), accommodating supply fluctuations common in industrial environments without nuisance dropout.
• DIN rail and screw mounting flexibility: The S3 frame supports both 35 mm DIN rail clip mounting and direct screw mounting to back panels, giving panel builders layout flexibility without requiring frame adapters.
• Thermal derating data availability: Siemens publishes full thermal derating curves for the 3RT1046 at elevated ambient temperatures, allowing engineers to calculate actual current capacity at installation-specific conditions rather than relying on conservative derating rules of thumb.
• Reversing contactor upgrade path: Two 3RT1046-1AN20 units combined with a 3RA1946 mechanical interlock kit form a certified reversing starter assembly, providing a documented upgrade path without replacing the base contactors.

Quality Assurance & Global Logistics

Every 3RT1046-1AN20 unit supplied by siemensplc.com is sourced as genuine Siemens factory production, carrying the original Siemens holographic label, batch traceability code, and CE/UL markings. Units are not reconditioned, relabeled, or sourced from gray-market channels. Each shipment is accompanied by a packing list referencing the Siemens order number and production batch, which customers may use for incoming inspection against Siemens’ published product authentication procedures.

Inventory is held at our Xiamen, China warehouse, positioned for efficient access to major international freight hubs including Xiamen Gaoqi International Airport (XMN) and Xiamen Port. Standard dispatch lead time is 1–3 business days from order confirmation. Express air freight via DHL, FedEx, or UPS reaches most destinations in Europe, Southeast Asia, the Middle East, and North America within 3–7 business days. Sea freight consolidation is available for bulk orders requiring cost-optimized logistics. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements. HS Code 8536.49 applies to this product category for customs classification purposes.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed through direct communication with our technical team, who can coordinate with Siemens’ regional service network where applicable. Pre-shipment functional verification is available upon request for critical project orders.
