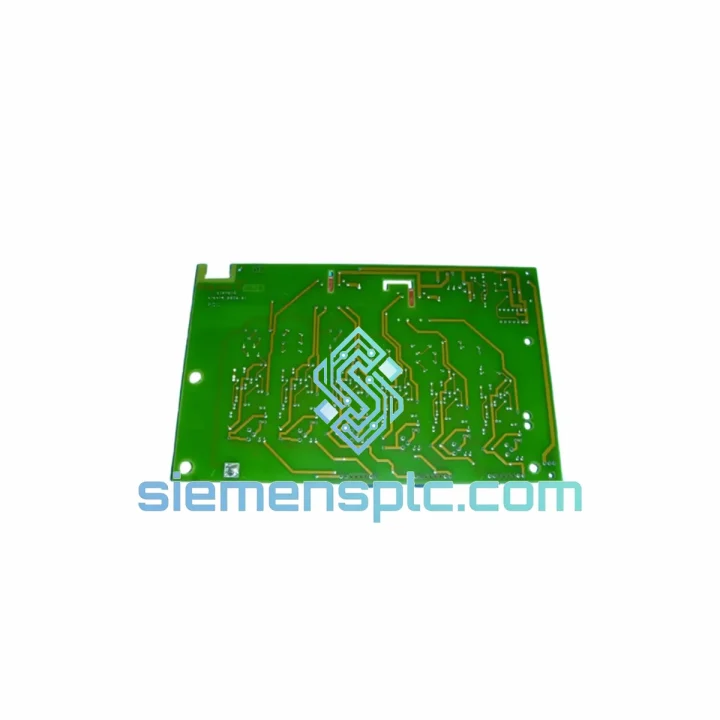

Siemens 476478.0056.01 Inverter Converter Control Board – SIMOVERT MASTERDRIVES

Siemens 476478.0056.01 Inverter Converter Control Board – Core Signal Processing Architecture in SIMOVERT MASTERDRIVES Variable Speed Drive Systems

The Siemens 476478.0056.01 is the dedicated inverter/converter control board engineered for the SIMOVERT MASTERDRIVES drive platform. Within the drive’s control hierarchy, this PCB occupies the position between the operator interface layer and the power semiconductor switching stage. It executes the pulse-width modulation (PWM) algorithm, manages DC bus voltage supervision, coordinates gate-drive signal distribution to the IGBT bridge, and handles closed-loop current regulation — all within a deterministic real-time cycle that the MASTERDRIVES architecture demands for stable motor control across the full speed range.

Unlike generic aftermarket replacements, the 476478.0056.01 carries Siemens AG factory firmware and hardware revision traceability. The board interfaces directly with the MASTERDRIVES power section backplane via a defined connector pinout, ensuring that parameter sets stored in the drive’s non-volatile memory remain valid after board exchange without requiring full recommissioning. This characteristic is operationally significant in production environments where unplanned downtime carries measurable cost per hour.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 476478.0056.01 operates as the signal-processing core of the MASTERDRIVES inverter stage. Its hardware design reflects the engineering constraints of high-power industrial drive control, where switching noise, thermal gradients, and ground potential differences between control and power domains must be managed at the board level rather than relying solely on cabinet-level mitigation.

Galvanic Isolation Architecture: The gate-drive output channels are isolated from the control logic domain using optocoupler-based signal transmission. Each of the six IGBT gate channels carries its own isolated drive path, preventing common-mode transients generated during IGBT switching (dV/dt events in the range of 5–10 kV/µs on the DC bus) from coupling back into the DSP or microcontroller logic. The isolation barrier is rated to withstand repetitive transient voltages consistent with the MASTERDRIVES DC bus operating range.

EMC Design — Differential Signal Routing: Analog feedback signals from current transducers are routed as differential pairs on the PCB, with guard traces referenced to analog ground. This layout practice attenuates common-mode interference induced by the switching frequency harmonics (typically 2–16 kHz carrier frequency in MASTERDRIVES configurations) before the signals reach the ADC input stage. The analog and digital ground planes are joined at a single star point, preventing digital switching currents from modulating the analog reference.

DC Bus Overvoltage Supervision: A dedicated hardware comparator circuit monitors the DC bus voltage divider output independently of the main DSP control loop. If the DC bus exceeds the programmed trip threshold — a condition that occurs during regenerative braking with insufficient braking chopper capacity — the hardware comparator asserts a direct gate-drive inhibit signal without waiting for a software interrupt cycle. This hardware-first protection architecture reduces the risk of IGBT overvoltage failure during transient load rejection events.

Thermal Derating Logic: The board incorporates NTC thermistor inputs from the power module heatsink. The thermistor signal is conditioned and fed to the control processor, which implements a current derating curve as heatsink temperature approaches the thermal protection threshold. This graduated derating strategy avoids abrupt drive trips in high-ambient installations, allowing the process to continue at reduced load rather than shutting down entirely.

Firmware Integrity: The MASTERDRIVES control board stores drive parameters and firmware in non-volatile memory. The 476478.0056.01 is supplied with factory-original firmware, ensuring that the parameter structure matches the MASTERDRIVES parameter database. This is operationally relevant because aftermarket boards with mismatched firmware versions can cause parameter access errors or incorrect scaling of analog I/O channels.

System Integration Benefits

• Direct OEM Drop-In Replacement: The 476478.0056.01 uses the identical backplane connector and mechanical envelope as the original factory-fitted board, eliminating the need for wiring modifications or bracket fabrication during field replacement.
• Parameter Set Preservation: Because the board’s firmware revision is consistent with the MASTERDRIVES parameter database, existing drive parameter sets (P-numbers) stored in the drive’s EEPROM remain valid after board swap, reducing recommissioning time from hours to minutes.
• Deterministic PWM Cycle Consistency: The board’s gate-drive timing is synchronized to the MASTERDRIVES system clock, maintaining the carrier frequency and dead-time settings that were established during original drive commissioning. This prevents motor current waveform distortion that can occur when replacement boards introduce timing offsets.
• Closed-Loop Current Regulation Accuracy: The analog front-end design maintains the current feedback scaling that the MASTERDRIVES vector control algorithm expects, preserving torque linearity across the full speed range without requiring current controller re-tuning.
• Hardware Fault Isolation: The board’s independent hardware protection circuits (overvoltage comparator, gate-drive inhibit) operate outside the software control loop, providing a fault isolation layer that remains active even if the main processor enters a fault state.
• Reduced Diagnostic Ambiguity: Replacing a known-good OEM board eliminates the board as a variable during fault diagnosis, allowing maintenance engineers to focus troubleshooting effort on the power section, motor, or mechanical load rather than chasing intermittent control board faults.
• Compatibility with MASTERDRIVES Communication Boards: The 476478.0056.01 maintains the internal bus protocol compatibility required by optional communication boards (CBC for CAN, CBP2 for PROFIBUS-DP), preserving fieldbus integration without reconfiguration of the PLC or SCADA communication layer.
• Long-Term Spare Parts Availability: Sourcing OEM boards through verified supply channels extends the operational life of installed MASTERDRIVES systems beyond the standard product lifecycle, deferring capital expenditure on full drive replacement in facilities where the existing drive infrastructure is otherwise serviceable.

Quality Assurance & Global Logistics

Every Siemens 476478.0056.01 unit dispatched from our Xiamen, China facility passes through a structured pre-shipment verification process. Visual inspection covers PCB surface condition, component seating, solder joint integrity, and connector pin condition. Functional verification confirms that the board powers up correctly and that gate-drive output signals are present and correctly timed across all six channels. Units that do not meet acceptance criteria are quarantined and not dispatched.

Packaging follows ESD-safe handling protocols: the board is placed in a conductive anti-static bag, sealed, and cushioned within a foam-lined inner carton. The outer carton is double-wall corrugated, rated for the board’s weight class, and labeled with handling instructions. This packaging specification is designed to protect the board against electrostatic discharge, mechanical shock, and humidity ingress during international air and sea freight transit.

Logistics from Xiamen covers major industrial markets including Southeast Asia, the Middle East, Europe, and the Americas. Air freight options provide delivery within 3–7 business days to most destinations. Sea freight consolidation is available for multi-unit orders where lead time permits. All shipments include a tracking reference and commercial invoice documentation suitable for customs clearance. Export classification and HS code documentation are prepared in accordance with the destination country’s import requirements.

A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of dispatch. Warranty claims are processed through direct communication with our technical team, who can advise on fault diagnosis before initiating a return authorization. This process minimizes unnecessary returns and accelerates resolution for cases where the fault is attributable to installation or system-level conditions rather than the board itself.
