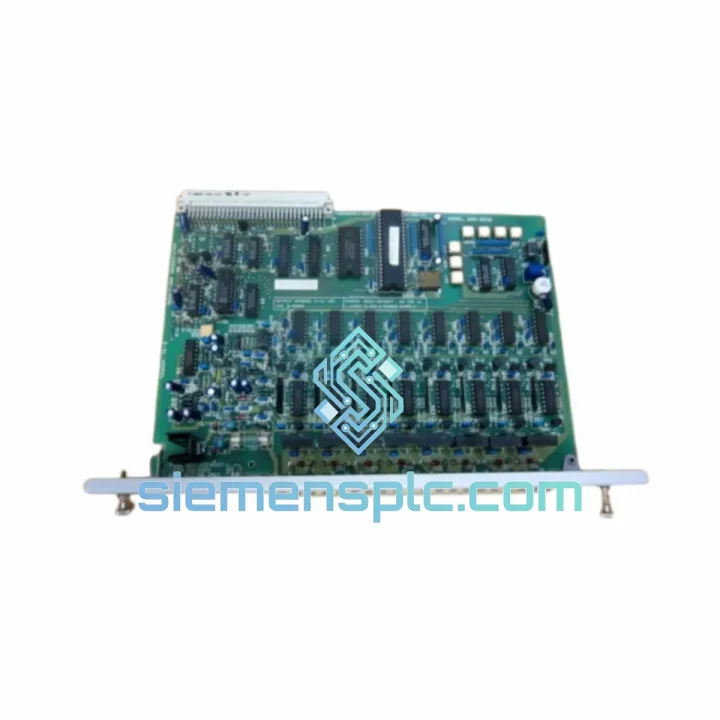

Siemens 505-6208 Analog Output Module

Siemens 505-6208: Cut the Downtime, Restore Your Process in Hours — Not Days

Every minute your line sits idle, the losses compound. A failed analog output module on a SIMATIC 505 rack doesn’t just halt one loop — it can cascade into a full process shutdown, missed batch targets, and contractual penalties. The Siemens 505-6208 is an 8-channel analog output module purpose-built for the SIMATIC 505 platform, and we keep it on the shelf precisely for moments like this. No waiting on OEM lead times. No scrambling through distributor back-channels. We ship from Xiamen within 24 hours of order confirmation.

This isn’t a generic listing. What follows is a field-grade technical breakdown written for the engineer who needs to make a decision fast, install correctly the first time, and get the process back online before the next shift.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 505-6208 fails in predictable ways. Here’s what field experience tells you to check before you pull the module — and what to watch when you install the replacement.

Common Fault Indicators:

• All 8 channels output 0 mA / 0 V simultaneously — almost always a blown internal DC/DC converter or a failed backplane power rail. Check 5 VDC backplane voltage at the rack before condemning the module.
• One or two channels stuck at full-scale (20 mA / 10 V) — DAC latch-up on individual channel ASICs. Power-cycle the rack first; if the fault persists across a cold restart, the channel is hard-failed.
• Intermittent output drift on current channels — check field wiring loop resistance. The 505-6208 current output compliance voltage is limited; excessive loop resistance causes the output to saturate below setpoint. Verify total loop resistance is within spec before replacing the module.
• Module LED shows RUN but TISOFT reports I/O fault — backplane slot addressing conflict. Verify the slot number in your TISOFT I/O configuration matches the physical rack position. The 505 platform uses fixed slot addressing — there is no auto-discovery.
• Voltage output channels reading correctly, current channels reading zero — check the output mode jumpers on the module PCB. The 505-6208 uses on-board jumpers (JP1–JP8) to select current vs. voltage mode per channel. These must match your field wiring and TISOFT configuration.

Replacement Procedure — Step by Step:

• Step 1 — Document before you touch anything. Screenshot or photograph the TISOFT I/O configuration for this slot. Note the slot number, channel assignments, output mode (mA/V), and any scaling parameters configured in software.
• Step 2 — De-energize the field loop. Do not hot-swap the 505-6208 under live field power. Disconnect field wiring at the terminal block or isolate the field supply. The module itself can be removed with the rack powered (the 505 platform supports live insertion), but field devices must be isolated to prevent process upsets.
• Step 3 — Verify jumper settings on the replacement module. Before inserting the new 505-6208, confirm JP1–JP8 match the channel output mode configuration of the failed unit. If you don’t have the original jumper map, cross-reference your TISOFT channel configuration — current mode channels require the jumper in the mA position.
• Step 4 — Insert and verify slot addressing. Seat the module firmly into the same rack slot. The 505 platform assigns I/O addresses by physical slot position — no DIP switch or rotary address setting is required on this module. Confirm the slot number in TISOFT matches.
• Step 5 — Re-energize and force-test each channel. Use TISOFT’s force output function to drive each channel to 50% of full scale (12 mA for current, 5 V for voltage). Verify at the field terminal with a calibrated meter before returning the loop to automatic control.
• Step 6 — Check firmware compatibility. The 505-6208 does not carry user-upgradeable firmware, but confirm your TISOFT version supports the module revision. Older TISOFT 2 installations may not recognize later hardware revisions — update TISOFT if the module shows as unrecognized after insertion.

Reliability in Harsh Conditions

The SIMATIC 505 platform was engineered for continuous-duty industrial environments, and the 505-6208 reflects that design philosophy. The module’s optically isolated output channels provide galvanic separation between the backplane logic and field wiring, protecting the CPU from ground loops, transient spikes, and wiring faults that are routine in heavy industrial settings.

Vibration tolerance is built into the card-edge connector and PCB mounting design — the 505-6208 has been deployed in compressor stations, offshore platforms, and steel mill auxiliary systems where structural vibration is constant. The conformal coating applied to production boards provides moisture resistance against condensation cycles common in outdoor enclosures and coastal facilities.

Operating temperature range of 0°C to 60°C covers the majority of industrial control room and panel environments. For installations approaching the upper limit — such as non-air-conditioned enclosures in tropical climates — ensure rack ventilation is unobstructed and that adjacent high-dissipation modules are not creating localized hot spots above the module’s rated ambient.

All units we ship are inspected for physical damage, corrosion on the backplane connector, and capacitor condition. Electrolytic capacitors are the primary aging component in analog output modules; units showing bulging or leakage are rejected before dispatch. You receive a module that is ready to install, not one that will fail again in six months.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. For urgent replacement orders, here’s exactly what happens after you confirm:

• Same-day processing: Orders confirmed before 15:00 CST are packed and handed to the carrier the same business day.
• DHL Express / FedEx International Priority: Standard routing for urgent shipments. Transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 3–5 days, Middle East 2–3 days, Australia 3–4 days.
• Full tracking from pickup to delivery: Tracking number provided within 2 hours of carrier pickup. We monitor shipments proactively and flag any customs holds immediately.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared to your destination country’s import requirements. HS code 8537.10 applied for customs classification.
• ESD-safe packaging: Module shipped in anti-static bag, foam-lined box, with desiccant. Outer carton rated for international air freight handling.
• Customs clearance support: We provide all documentation needed for smooth customs clearance. For destinations with specific import requirements (e.g., India BIS, Brazil INMETRO), contact us before ordering to confirm compliance status.

If your plant is down and every hour counts, call or WhatsApp us directly. We will confirm stock, provide a shipping quote, and have the module moving within hours.
