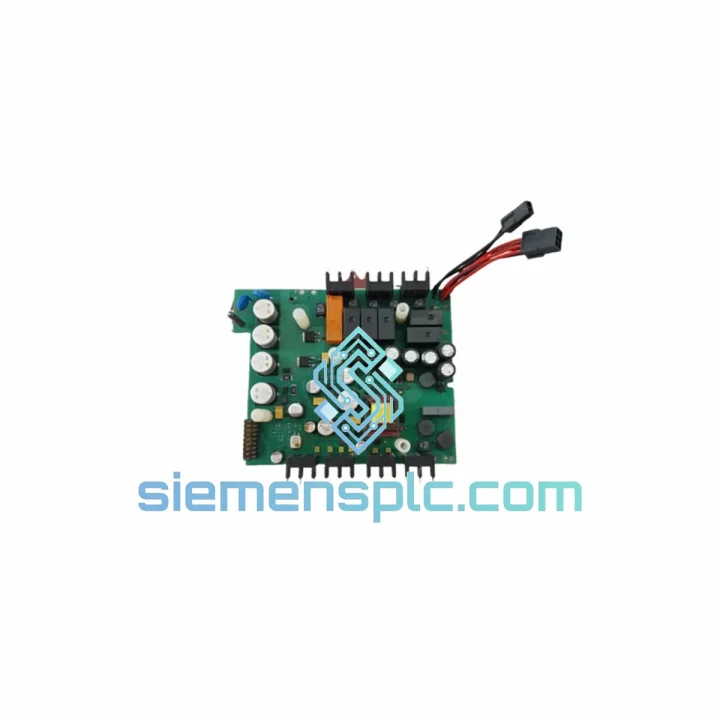

Siemens 535-2088-05 VFD Control Board

535-2088-05 Gate Firing Board: Stop the Clock on Your Downtime — Ships Today from Xiamen

Every hour your Simovert P drive sits dead, the losses compound — halted conveyors, idle operators, missed production targets. The Siemens 535-2088-05 is the exact gate firing and control board that lives at the heart of your 6SE35-series VFD, and when it fails, nothing else gets the drive back online. We stock it. We ship it. DHL Express from Xiamen, door-to-door, often within 48 hours of order confirmation. That’s the difference between a two-day incident and a two-week nightmare.

This is not a generic substitute or a re-labeled clone. The 535-2088-05 is a genuine Siemens OEM board — PCB revision markings, conformal coating, and connector pinout verified against factory documentation. Drop it in, re-commission per the Simovert P startup procedure, and your drive is back in service. No re-wiring. No parameter remapping. No surprises.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on Simovert P drives, the 535-2088-05 board fails in predictable patterns. Knowing them saves you hours of chasing ghosts.

Fault F002 / F005 — IGBT Gate Signal Loss: This is the most common failure signature. The drive trips immediately on enable with no DC bus fault, no overcurrent — just a clean gate fault. Nine times out of ten, the 535-2088-05 has a failed gate driver IC or a cracked solder joint on the fiber-optic transmitter. Before condemning the power stack, swap this board first. It’s a 20-minute job versus a 4-hour IGBT replacement.

Fault F011 — Firing Pulse Asymmetry: Intermittent F011 faults that clear on reset but return under load point directly to the gate firing board. Thermal cycling degrades the timing capacitors on the 535-2088-05 over years of operation. If your drive is more than 8 years old and showing F011 under load, treat this board as a consumable maintenance item.

Replacement Procedure — Key Steps:

• De-energize the drive and verify DC bus discharge below 50 V before opening the cabinet. The 6SE35 bus capacitors hold charge for up to 5 minutes after mains disconnect.
• Document the existing board’s DIP switch positions before removal. The 535-2088-05 uses onboard DIP switches to set current scaling and feedback gain — these must match your drive’s motor nameplate data. Factory default is not always correct for your application.
• Disconnect the fiber-optic cables carefully. The plastic ferrules on 6SE35-era drives are brittle with age. Mark each cable with tape before removal — TX/RX reversal will cause immediate fault on power-up.
• After installing the replacement board, set DIP switches to match the removed board’s configuration. If the original settings are unknown, refer to the Simovert P commissioning manual (document A5E00125122) for the motor-specific calculation.
• Power up with the drive inhibited. Check for fault-free status before enabling. Run a short no-load test at 10 Hz before returning to full production speed.
• Firmware on the 535-2088-05 is hardware-embedded — no firmware flashing required. The board is plug-and-play within the 6SE35 family, but confirm your drive’s full model suffix (e.g., 6SE3521-3DG40) to ensure frame-size compatibility before ordering.

Common Mistake to Avoid: Engineers sometimes replace the control unit (CU board) first because it’s more accessible. If your fault is gate-related, the CU is almost never the culprit. The 535-2088-05 sits between the CU and the IGBT stack — it’s the first place to look for gate faults, and the last place most people check.

Reliability in Harsh Conditions

The Simovert P 6SE35 platform was engineered for industrial environments that would destroy consumer-grade electronics in weeks. The 535-2088-05 board reflects that design philosophy at the component level.

The PCB is fully conformal-coated to IEC 60721-3-3 Class 3C2, providing resistance to condensation, industrial solvents, and airborne contaminants common in paper mills, chemical plants, and coastal installations. Vibration resistance is validated to IEC 60068-2-6 — the board remains stable under the continuous mechanical stress of compressor and pump applications where cabinet vibration is a constant factor.

Operating temperature range spans -10°C to +55°C ambient, with the board’s thermal design accounting for the heat generated by adjacent IGBT modules in a fully loaded cabinet. The gate driver ICs are rated for junction temperatures well above the board’s ambient limit, providing a genuine thermal margin rather than a paper specification.

Units sourced through siemensplc.com are inspected for signs of thermal stress, electrolytic capacitor bulging, and PCB delamination before dispatch. Any unit showing evidence of prior overload or moisture ingress is rejected. You receive a board that is ready to perform, not one that will fail again in six months.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. This matters when your production line is down and every hour costs money.

Standard export process for the 535-2088-05:

• Order confirmed by 14:00 CST → same-day dispatch in most cases.
• DHL Express Worldwide — transit time 2–4 business days to Europe, 3–5 days to North America, 1–3 days to Southeast Asia.
• FedEx International Priority — available as an alternative for destinations with stronger FedEx coverage (Middle East, South America).
• Full commercial invoice, packing list, and HS code documentation (HS 8537.10) prepared for customs clearance. We have shipped to 60+ countries — customs delays caused by incomplete documentation are not a risk you take with us.
• Anti-static packaging with humidity indicator card. Fragile marking and orientation arrows on outer carton. Insurance available on request for high-value shipments.
• Tracking number provided within 2 hours of dispatch. WhatsApp updates available for urgent shipments.

If your logistics team requires a specific Incoterm (EXW, DAP, DDP), we accommodate. DDP shipments to EU destinations include import VAT handling to eliminate customs delays at destination.
