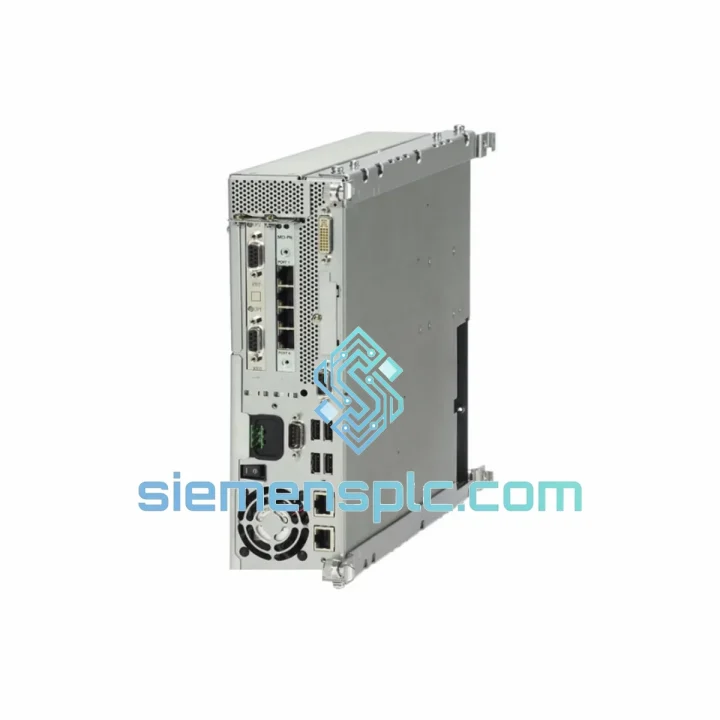

Siemens 6AU1350-3AK41-1BE2 PROFIBUS Communication Board – P350-3

Siemens 6AU1350-3AK41-1BE2 P350-3 ISOPROFIBUS Board — Isochronous Fieldbus Interface for SINUMERIK 840D sl NCU

The Siemens 6AU1350-3AK41-1BE2 is the P350-3 ISOPROFIBUS communication board engineered exclusively for the SINUMERIK 840D sl and 840Di sl numerical control platforms. Its primary function is to establish a deterministic, isochronous PROFIBUS-DP master connection between the NCU (Numerical Control Unit) backplane and the distributed field layer — encompassing servo drives, distributed I/O stations, and peripheral field devices. Unlike standard asynchronous PROFIBUS-DP implementations, the isochronous mode (also referred to as equidistant bus cycle) enforces a fixed, jitter-free telegram cycle that is phase-locked to the interpolation clock of the CNC kernel. This synchronization is non-negotiable in multi-axis contouring applications where position setpoints must arrive at each drive node within a bounded latency window, typically sub-1 ms.

The board occupies a dedicated slot on the NCU module carrier and communicates with the NCU processor via the internal NCU backplane bus. It does not consume a standard PROFIBUS address from the user-configurable node space; instead, it operates as the isochronous DP master at the hardware level, with the NCU firmware managing cycle scheduling. The physical PROFIBUS-DP port (9-pin D-Sub, RS-485) supports baud rates up to 12 Mbit/s and is fully compliant with IEC 61158 and EN 50170.

The hardware revision suffix -1BE2 denotes a specific PCB revision level that aligns with NCU firmware branches from V4.5 onward. Substituting an earlier revision (e.g., -1AA0 or -1AB0) without verifying firmware compatibility can result in non-recognition of the board during NCU boot, or degraded isochronous performance. The -1BE2 revision incorporates updated EMC filtering on the RS-485 transceiver stage and revised FPGA logic for improved cycle-time stability under high node-count topologies.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The P350-3 board’s architecture centers on an FPGA-based PROFIBUS-DP master controller that interfaces directly with the NCU backplane bus. The FPGA implements the complete DP master state machine in hardware logic rather than firmware running on a general-purpose processor, which eliminates software scheduling jitter from the communication cycle. The isochronous mode requires the PROFIBUS bus cycle to be an integer multiple of the NCU interpolation clock period (Ipo clock). The FPGA on the P350-3 receives the Ipo clock signal from the NCU backplane and uses it as the phase reference for generating the equidistant PROFIBUS telegram sequence — specifically the Global Control (GC) broadcast that triggers synchronous data exchange across all isochronous slaves simultaneously.

EMC Design: The RS-485 transceiver stage incorporates common-mode chokes and transient voltage suppression (TVS) diodes on both the A and B signal lines, providing protection against conducted interference up to ±2 kV (IEC 61000-4-5, Level 3). The PCB layout enforces a split ground plane between the digital logic domain and the RS-485 interface domain, with a single-point ground bridge to prevent ground loop currents from coupling into the signal path. The -1BE2 revision added a second-order LC filter on the RS-485 supply rail, reducing high-frequency noise injection from the backplane switching regulators by approximately 20 dB compared to earlier revisions.

Redundancy and Fault Isolation: The board includes a hardware watchdog timer that monitors the PROFIBUS master state machine. If the FPGA fails to complete a bus cycle within 2× the configured cycle time, the watchdog asserts a fault signal to the NCU backplane, triggering a controlled NCU alarm (e.g., Alarm 380500 series) rather than a silent communication failure. This fail-safe behavior ensures that axis drives receive a defined safe state (velocity setpoint = 0) rather than holding the last valid setpoint, which is critical for personnel safety in machine tool environments.

Connector and Mechanical Interface: The board uses a high-density board-to-board connector for the NCU backplane interface, rated for a minimum of 100 insertion cycles. The PROFIBUS D-Sub port is mechanically keyed and includes a locking screw provision (M2.5) to prevent cable disconnection under vibration — a requirement for machine tool environments where spindle and axis vibration can reach 2 g at frequencies up to 150 Hz.

System Integration Benefits

• Deterministic axis synchronization: Isochronous PROFIBUS-DP eliminates variable telegram latency, ensuring that position setpoints from the NCU interpolator reach all drive nodes (SINAMICS S120 via PROFIBUS) within a fixed, bounded window. This is the prerequisite for coordinated multi-axis contouring with path deviation below 1 µm at programmed feed rates.
• Reduced wiring complexity vs. analog interfaces: A single PROFIBUS trunk cable replaces individual ±10 V analog setpoint cables and encoder feedback cables for each axis, reducing cabinet wiring volume by 40–60 % in typical 5-axis machining center installations.
• Transparent drive diagnostics: PROFIBUS-DP cyclic data exchange carries not only setpoint/actual-value pairs but also drive status words and fault codes in every telegram cycle. The NCU can therefore detect drive faults (overcurrent, encoder error, thermal overload) within one bus cycle — typically 1–4 ms — without requiring a separate diagnostic polling mechanism.
• Scalable I/O expansion: ET 200S and ET 200M distributed I/O stations connect to the same PROFIBUS trunk, allowing incremental addition of digital and analog I/O without modifying the NCU hardware. Each ET 200S station supports up to 63 I/O modules, providing granular expansion for machine-specific functions (tool changers, coolant valves, safety interlocks).
• Firmware-managed cycle scheduling: The NCU firmware (SINUMERIK Operate) manages the isochronous bus cycle schedule, including the allocation of time slots for each slave device. This eliminates the need for manual bus cycle calculation by the machine builder; the NCU automatically validates that the configured cycle time is achievable given the number of nodes and their data lengths.
• Alarm transparency to HMI: PROFIBUS diagnostic telegrams (DPV1 Class 2) are forwarded by the P350-3 board to the NCU alarm buffer, where they appear as structured alarm messages on the SINUMERIK Operate HMI. Maintenance personnel can identify the specific slave device, slot, and fault type without connecting a separate PROFIBUS diagnostic tool.
• Hot-swap awareness: While the P350-3 board itself is not hot-swappable (NCU power-down is required for board replacement), the PROFIBUS slaves connected to it support the PROFIBUS-DP “Freeze” and “Sync” control commands, allowing selective suspension of individual slave groups during maintenance without stopping the entire bus — useful in large transfer line installations.
• Long-term platform continuity: The SINUMERIK 840D sl platform has an extended product lifecycle commitment from Siemens through 2030+. The 6AU1350-3AK41-1BE2 is a catalogued spare part with defined availability through Siemens Industry Mall and authorized distributors, reducing the risk of unplanned downtime due to spare part obsolescence.

Quality Assurance & Global Logistics

Every unit of the 6AU1350-3AK41-1BE2 supplied by siemensplc.com is sourced as a genuine Siemens OEM component through verified supply channels. Each board undergoes a pre-shipment inspection protocol that includes visual examination of the PCB surface and connector pins, a power-on functional test confirming backplane communication handshake, and a PROFIBUS enumeration check verifying that the board is recognized as an isochronous DP master by a reference NCU test fixture. Units that do not pass all three stages are quarantined and not shipped.

Packaging follows IEC 61340-5-1 ESD protection requirements: each board is sealed in a conductive anti-static bag with a humidity indicator card, placed in a foam-lined inner carton, and enclosed in a double-wall corrugated outer carton rated for 80 kg/m² stacking load. This packaging specification is validated for air freight handling conditions (ISTA 2A).

Shipments originate from our warehouse in Xiamen, China. Standard export documentation includes a commercial invoice, packing list, and certificate of conformity. DHL Express and FedEx International Priority are the primary carriers for single-unit and small-quantity orders, with typical transit times of 3–5 business days to Europe and North America. For bulk orders, sea freight via Xiamen Port is available with full container load (FCL) and less-than-container load (LCL) options. All shipments are covered by cargo insurance. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage events beyond the specified protection level, or unauthorized modification.
