Siemens 6AV7811-0BB00-0AA0 HMI Spare Parts – SIMATIC Panel PC 477B

Siemens 6AV7811-0BB00-0AA0 | SIMATIC Panel PC 477B 15″ Membrane Overlay — Operator Interface Integrity in High-Cycle Industrial Environments

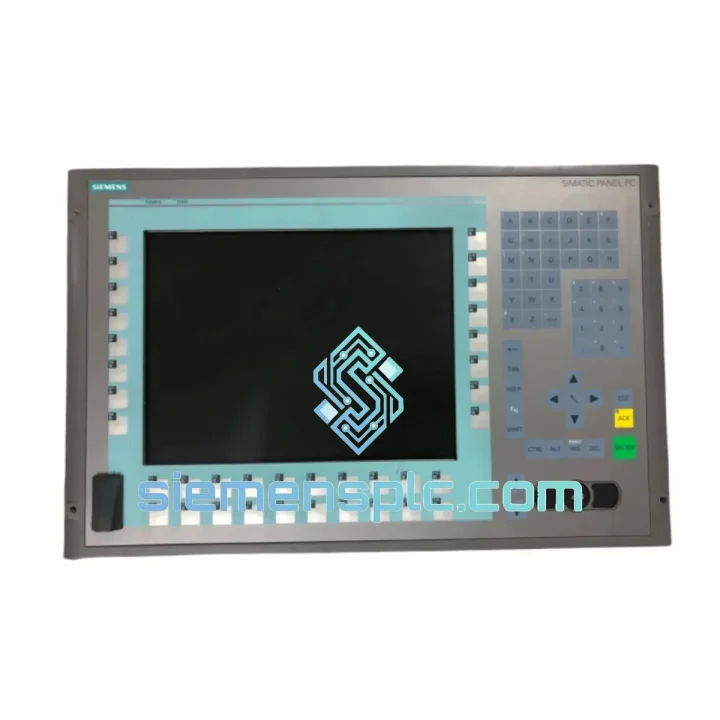

The Siemens 6AV7811-0BB00-0AA0 is the OEM-specified membrane overlay (button film) for the SIMATIC Panel PC 477B 15″ platform. In any control architecture where the HMI panel serves as the primary operator interface between process logic and field personnel, the mechanical integrity of the input surface is not a cosmetic concern — it is a functional one. A degraded membrane introduces input ambiguity, increases operator error probability, and in safety-instrumented environments, can compromise SIL-rated interaction sequences. This page provides the engineering rationale, technical parameters, hardware analysis, and sourcing pathway for procurement and maintenance engineers responsible for SIMATIC Panel PC 477B installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The membrane overlay in the SIMATIC Panel PC 477B is not a passive cosmetic layer. Its design reflects Siemens’ engineering discipline around operator interface reliability in environments where EMC stress, thermal cycling, and chemical exposure are routine.

Multi-layer PET construction and EMC shielding: The 6AV7811-0BB00-0AA0 uses a multi-layer polyester stack in which the conductive trace layer is sandwiched between dielectric films. This construction provides inherent electrostatic discharge (ESD) dissipation at the surface, preventing charge accumulation that could induce false key-press signals in the underlying capacitive or resistive sensing circuit. In environments with high-frequency switching equipment — VFDs, servo amplifiers, arc welding cells — this passive shielding characteristic reduces susceptibility to radiated EMI coupling into the HMI input circuit.

Tactile dome geometry and actuation force calibration: The embossed key domes are precision-formed to deliver a consistent actuation force profile (typically 2.5–4.0 N depending on key position). This is not arbitrary: Siemens’ HMI ergonomic standards require that operator confirmation inputs produce unambiguous tactile feedback to prevent double-actuation or missed inputs during high-stress operational sequences. A worn or delaminated overlay loses dome geometry, increasing actuation force variance and raising the probability of input error.

Adhesive interface and panel sealing continuity: The overlay’s perimeter adhesive is formulated to maintain IP65 sealing continuity at the bezel interface across the full operating temperature range. Thermal expansion differentials between the PET substrate and the aluminum Panel PC 477B chassis are accommodated by the adhesive’s elastic modulus, preventing peel-back at temperature extremes. This is particularly relevant in outdoor or semi-outdoor installations where diurnal temperature swings exceed 30 °C.

Print durability under UV and chemical exposure: Key legends are subsurface-printed beneath the outer PET layer, not surface-applied. This construction prevents legend wear from cleaning agents or abrasive contact, maintaining operator readability throughout the component’s service life — a requirement in pharmaceutical GMP environments where panel labeling legibility is subject to regulatory audit.

System Integration Benefits

• Zero re-commissioning on replacement: The 6AV7811-0BB00-0AA0 is a direct OEM fit for the Panel PC 477B 15″ bezel. No firmware changes, no driver updates, no WinCC reconfiguration — the underlying hardware interface is unchanged, preserving all existing HMI project logic and screen navigation sequences.
• Maintains IP65 front-face rating post-replacement: Third-party overlays frequently fail to replicate the original adhesive perimeter geometry, compromising the panel’s ingress protection. The OEM part restores the factory-certified IP65 rating, which is a documented requirement in food processing and pharmaceutical facility audits.
• Preserves Siemens service contract validity: Use of non-OEM spare parts can void Siemens service agreements. Specifying the 6AV7811-0BB00-0AA0 ensures compliance with Siemens’ spare parts policy, protecting the customer’s support entitlement.
• Reduces unplanned downtime duration: In-situ replacement takes under 10 minutes without panel removal. For a production line with an OEE-based downtime cost of USD 5,000–15,000 per hour, a 10-minute membrane swap versus a 4-hour panel removal-and-replacement represents a measurable OPEX reduction.
• Supports predictive maintenance scheduling: Membrane overlays have a quantifiable actuation life. Maintenance teams can schedule replacement at planned shutdown intervals based on cycle count data from the PLC, eliminating reactive replacement events.
• Consistent operator ergonomics across multi-site deployments: For manufacturers operating multiple plants with standardized SIMATIC Panel PC 477B installations, OEM membrane replacement ensures identical tactile response across all operator stations, reducing training variance and operator adaptation time.
• ESD protection continuity: The OEM overlay’s conductive dissipation layer maintains the panel’s ESD protection architecture. Non-OEM films with non-conductive substrates can create charge accumulation points that degrade the HMI’s EMC performance over time.
• Full traceability for regulated industries: Each unit is supplied with Siemens MLFB labeling and, upon request, a Certificate of Conformity (CoC) and batch traceability record — mandatory documentation for pharmaceutical, nuclear, and defense-sector maintenance records.

Quality Assurance & Global Logistics

siemensplc.com sources the 6AV7811-0BB00-0AA0 through verified Siemens-authorized distribution channels. Every unit processed through our Xiamen facility undergoes a structured incoming inspection protocol:

• MLFB label verification against Siemens’ published part number database
• Holographic authenticity feature inspection
• Surface and dimensional check against Siemens mechanical drawing tolerances
• Anti-static (ESD-safe) packaging in humidity-controlled storage prior to dispatch

Counterfeit HMI spare parts are a documented problem in the industrial aftermarket. Non-genuine overlays frequently use incorrect adhesive formulations that fail at temperature extremes or degrade IP sealing within months. Our sourcing discipline eliminates this risk.

Logistics from Xiamen, China: Xiamen Gaoqi International Airport and Xiamen Port provide direct freight access to major industrial hubs across Southeast Asia, Europe, the Middle East, and the Americas. Standard export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration — is prepared for every shipment to facilitate customs clearance. Shipping options include DHL Express (2–5 business days to most destinations), FedEx International Priority, and sea freight consolidation for bulk orders. Multi-currency payment is supported: USD, EUR, CNY, and HKD via T/T bank transfer, PayPal, and major credit cards.
