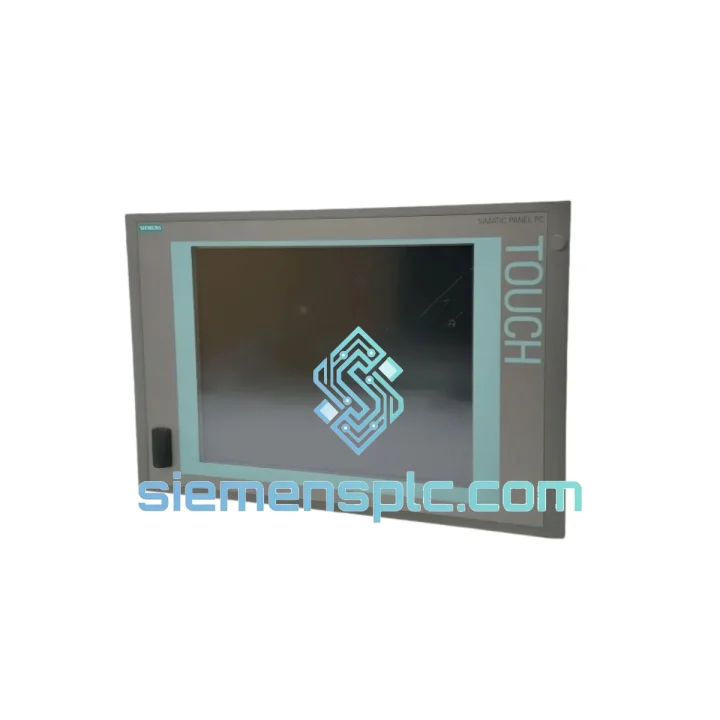

Siemens 6AV7870-0HE21-1AA0 Industrial HMI Panel PC

6AV7870-0HE21-1AA0 In Stock — Every Hour of Downtime Costs You Money

Your SIMATIC Panel PC 870 just went dark. The line is stopped. Maintenance is on the phone. You already know the drill — every hour without a working HMI is production loss you cannot recover. The Siemens 6AV7870-0HE21-1AA0 is on our shelf in Xiamen right now. We ship same day via DHL Express. That is the only thing that matters at this moment.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on this platform. Here is what actually bites engineers during a hot swap:

1. OS Image Mismatch After Board Swap
The 6AV7870-0HE21-1AA0 ships with Windows XP Embedded SP3. If the replacement unit carries a different SP level or a CE variant, your WinCC flexible runtime license will refuse to activate. Before you pull the old unit, photograph the OS build label on the rear panel and match it exactly. If you cannot match it, plan for a WinCC re-transfer from your engineering station.

2. Touchscreen Calibration Drift
Resistive panels on this series lose calibration after thermal cycling. On first boot post-replacement, enter the touchscreen calibration utility via the SIMATIC Startup Manager before handing back to operators. Skipping this step causes misclick faults that operators will blame on the hardware — not the calibration.

3. PROFIBUS / MPI Address Retention
The Panel PC 870 stores its MPI node address in software, not hardware DIP switches. After OS restore, the MPI address defaults to node 0. Your S7-300/400 CPU expects a specific node — check your network configuration in WinCC or NetPro and reassign before going live. A node conflict will cause the entire PROFIBUS segment to stall.

4. Compact Flash Card Failure — The Silent Killer
The most common failure mode on aging 6AV7870 units is CF card degradation, not the motherboard. Before condemning the whole unit, pull the CF card and image it. If the card is bad, a replacement CF with a restored image will bring the panel back for a fraction of the cost. We stock compatible CF cards — ask us.

5. Ethernet MAC Address Change
If your SCADA server uses MAC-based IP assignment (common in older plant networks), the replacement unit will get a different IP on first boot. Coordinate with your IT/OT team to update the DHCP reservation or assign a static IP before the panel goes online. Failure to do this causes WinCC server connection timeouts that look like a hardware fault.

6. WinCC License Transfer
WinCC flexible licenses are hardware-bound. After replacing the Panel PC, you must use the Siemens Automation License Manager to transfer the license from the old hardware fingerprint to the new one. If the old unit is completely dead, contact Siemens support for an emergency license recovery — have your order number and license key ready.

Reliability in Harsh Conditions

The SIMATIC Panel PC 870 was engineered for environments that destroy consumer-grade hardware in weeks. The 6AV7870-0HE21-1AA0 carries IP65 front-panel sealing, which means pressurized water jets and heavy dust ingress do not reach the internals. The chassis is designed to IEC 60068 vibration and shock profiles — the same standards applied to railway and heavy machinery applications.

Operating temperature range spans 0 °C to +50 °C ambient, with storage down to -20 °C. The fanless thermal design on certain sub-variants eliminates the single most common mechanical failure point in industrial PCs. The resistive touchscreen operates with gloved hands and remains functional when the surface is wet — a non-negotiable requirement on food processing and chemical lines.

EMC shielding meets EN 61000-6-2 (industrial immunity) and EN 61000-6-4 (industrial emissions), so the panel coexists with VFDs, welding equipment, and high-current bus bars without spurious resets or display corruption. Every unit we ship has been stored in climate-controlled conditions with anti-static packaging and humidity indicator cards. You are not getting a panel that sat in an uncontrolled warehouse for three years.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. Here is how the shipment moves:

Day 0 (Order Confirmed): Unit pulled from shelf, inspected, photographed, and packed in double-wall export carton with foam insert. Export invoice and packing list generated. Dangerous goods check completed (not applicable for this product — standard air freight).

Day 0–1 (Customs Clearance): Shipment handed to DHL Express or FedEx International Priority. HS code 8537.10 declared. Certificate of origin available on request for import duty reduction in target markets.

Transit Times (Typical):

• Southeast Asia (SG, MY, TH, VN): 2–3 business days
• Middle East (AE, SA, QA): 3–4 business days
• Europe (DE, NL, PL, TR): 4–5 business days
• North America (US, CA, MX): 4–6 business days
• South America (BR, CL, CO): 6–9 business days

Tracking number provided within 12 hours of dispatch. We handle all export documentation including commercial invoice, packing list, and COO. For orders requiring an LC or formal purchase order process, contact us before placing the order online.
