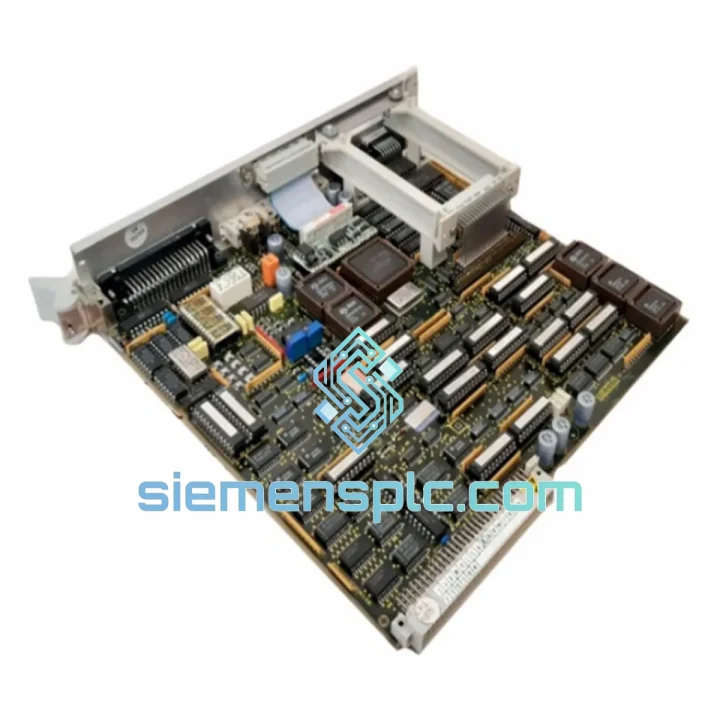

Siemens 6DD1601-0AE0 Processor Module – SIMADYN D

Siemens 6DD1601-0AE0 — Central Processor Module for SIMADYN D High-Performance Drive Control

The Siemens 6DD1601-0AE0 is the primary CPU card within the SIMADYN D modular control platform, a rack-based architecture engineered specifically for closed-loop drive regulation and high-speed process automation. In a SIMADYN D subrack, this processor module occupies the master slot and assumes full responsibility for task scheduling, inter-module communication arbitration, and real-time control algorithm execution. Its removal or failure renders the entire subrack inoperative — a fact that underscores its architectural centrality and the operational criticality of maintaining verified spare inventory.

SIMADYN D was developed by Siemens AG as a dedicated control platform for applications where standard PLC scan cycles are insufficient. Rolling mill tension control, marine propulsion drive coordination, and large-scale turbine excitation regulation all demand sub-millisecond deterministic response — a requirement that the 6DD1601-0AE0 addresses through its dedicated backplane bus architecture and fixed-priority interrupt handling. Unlike general-purpose PLCs that share processing resources across mixed task types, the SIMADYN D CPU is purpose-built for continuous closed-loop regulation with hard real-time guarantees.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6DD1601-0AE0 implements a fixed-priority preemptive task scheduler at the hardware level, meaning that the highest-priority control loop — typically the innermost current regulation cycle — cannot be interrupted by lower-priority tasks regardless of software state. This is not a software scheduler running on a general-purpose OS; it is a hardware-enforced execution model where task slots are allocated at fixed time intervals on the backplane clock. The consequence is a control cycle jitter measured in microseconds rather than milliseconds, which is the fundamental requirement for torque-accurate drive regulation.

The backplane bus of the SIMADYN D subrack operates as a synchronous parallel data highway. The 6DD1601-0AE0 acts as the bus master, issuing time-slot grants to peripheral modules — I/O cards, communication modules, and function modules — in a deterministic round-robin sequence governed by the CPU’s internal cycle timer. This architecture eliminates bus contention latency, a common failure mode in asynchronous bus designs where multiple masters compete for access.

From an EMC design perspective, the module employs multi-layer PCB construction with dedicated ground planes separating the analog signal layer from the digital logic layer. Decoupling capacitors are placed at each IC power pin to suppress high-frequency switching transients. The card-edge connector uses a staggered pin assignment that ensures ground connections are established before signal pins during insertion, preventing transient voltage spikes on the logic rails during hot-swap scenarios in subrack maintenance procedures.

The processor’s memory architecture separates program code storage from working data RAM, with the code region protected against accidental write operations during runtime. This hardware write-protection mechanism prevents a runaway data pointer from corrupting the control program — a failure mode that, in a drive application, could result in uncontrolled motor acceleration. Battery-backed SRAM retains parameter sets and tuning data across power cycles, eliminating the need for full recommissioning after a power interruption.

System Integration Benefits

• Deterministic Closed-Loop Cycle Time: The hardware task scheduler enforces fixed execution intervals for the innermost control loop, delivering consistent torque and speed regulation accuracy independent of system load variations.
• Backplane Bus Master Control: As the sole bus master in the SIMADYN D subrack, the 6DD1601-0AE0 eliminates arbitration overhead and guarantees that I/O data is read and written within a defined time window each control cycle.
• Modular Scalability Without CPU Replacement: Additional I/O, communication, and function modules can be added to the subrack without modifying the CPU configuration, allowing system capacity to scale incrementally as process requirements evolve.
• Integrated Diagnostic Transparency: The module maintains a fault log accessible via the SIMADYN D programming interface, recording task overrun events, bus communication errors, and hardware fault codes with timestamps — enabling root-cause analysis without external diagnostic equipment.
• Cross-Platform Drive Compatibility: The 6DD1601-0AE0 has been validated for coordinated control of SIMOREG DC Master and SIMOVERT drive series, allowing a single SIMADYN D rack to manage multi-drive systems with synchronized speed and torque references.
• Parameter Retention Across Power Loss: Battery-backed SRAM preserves all tuning parameters, setpoints, and configuration data through power interruptions, eliminating the recommissioning delay that would otherwise follow an unplanned shutdown.
• Hard Real-Time Interrupt Handling: External hardware interrupt inputs allow the CPU to respond to process events — such as a position encoder index pulse or a drive fault signal — within a guaranteed latency window, enabling position-synchronous control strategies.
• Legacy System Continuity: For plants operating SIMADYN D infrastructure installed in the 1990s and 2000s, the 6DD1601-0AE0 provides a direct drop-in replacement path that avoids the capital expenditure and production risk associated with full control system migration.

Quality Assurance & Global Logistics

Every Siemens 6DD1601-0AE0 unit dispatched from our Xiamen facility undergoes a structured pre-shipment inspection protocol. Visual examination covers PCB surface condition, connector pin integrity, component seating, and label authenticity verification against Siemens factory markings. Units sourced from verified channels are cross-referenced against Siemens part number databases to confirm revision compatibility before allocation to customer orders.

Functional verification is performed where test infrastructure permits, including backplane power-on sequencing and bus communication handshake confirmation. Each unit is packed in anti-static shielding bags, placed within foam-lined rigid cartons, and sealed with tamper-evident tape. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements.

Logistics from Xiamen, China to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East is executed via DHL Express, FedEx International Priority, and freight forwarding partners for volume shipments. Standard express transit times are 3–5 business days to Europe and North America. All shipments include full tracking and are covered by cargo insurance. Incoterms supported: EXW, FOB Xiamen, DAP, and DDP upon request. A 12-month warranty against functional defects is provided with every unit.
