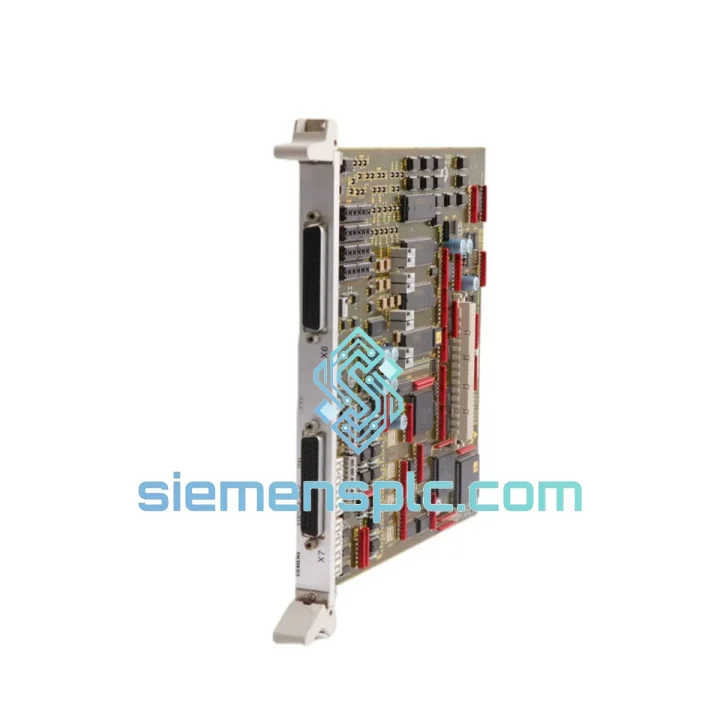

Siemens 6DD1606-3AC0 PLC I/O Expansion Module – SIMADYN D Simatic TDC

Siemens 6DD1606-3AC0 IT41 I/O Expansion Module — Backplane Signal Distribution in SIMADYN D and Simatic TDC Control Architectures

The 6DD1606-3AC0 is a slot-mounted I/O expansion card within the Siemens SIMADYN D and Simatic TDC hardware family — two closely related closed-loop control platforms that share a common rack and backplane bus standard. Designated IT41, this module extends the field-signal capacity of a populated rack by providing additional I/O channels that communicate with the central processor (PM5, PM6, or CP50xx series) over the high-speed synchronous backplane bus. Its role in the control loop is straightforward but structurally critical: it acts as the physical interface layer between field instrumentation and the processor’s real-time execution cycle, ensuring that analog and digital signals arrive at the computation stage with deterministic latency and without ground-loop contamination.

In drive-intensive applications — rolling mills, marine propulsion, turbine governors, crane coordination — the density and reliability of I/O expansion directly constrains the achievable control bandwidth. A single degraded expansion slot introduces scan-cycle jitter that propagates into speed regulation error. The 6DD1606-3AC0 addresses this by maintaining galvanic isolation between field wiring and the backplane bus, suppressing common-mode noise that is endemic in high-current drive environments. The isolation barrier is implemented at the channel input stage using optocoupler arrays rated for continuous operation at industrial EMC severity levels (IEC 61000-4-4 Burst Class 3, IEC 61000-4-5 Surge Class 3).

Rack addressing is configured via onboard DIP switches, allowing multiple IT41 modules to coexist in a single rack without address collision. The backplane arbitration logic on the SIMADYN D / TDC platform assigns each slot a fixed time slot within the synchronous bus cycle, so adding IT41 modules does not introduce bus contention — I/O scan time scales linearly and predictably with module count. This determinism is the architectural reason SIMADYN D was selected for turbine and propulsion control, where scan-cycle variance above ±50 µs is operationally unacceptable.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IT41’s hardware design reflects the engineering constraints of high-current industrial environments where electromagnetic interference is not an edge case but a continuous operating condition.

Optocoupler Isolation Architecture: Each channel group on the IT41 passes field signals through an optocoupler stage before they reach the backplane-side logic. This eliminates ground-potential differences between field wiring (which may reference motor chassis ground at several volts offset) and the rack’s logic ground. The isolation capacitance is kept below 10 pF per channel to prevent high-frequency noise coupling across the barrier — a design constraint that becomes significant in variable-frequency drive environments where switching frequencies of 4–16 kHz generate conducted emissions on signal cables.

Backplane Bus Timing: The SIMADYN D backplane operates as a time-division multiplexed synchronous bus. Each slot — including IT41 expansion slots — is allocated a fixed time window within the bus cycle. The IT41’s onboard bus interface logic latches incoming field data at the start of its assigned window and presents it to the processor in a single atomic transfer. This eliminates the read-modify-write hazards that affect asynchronous I/O architectures and ensures that the processor always operates on a consistent snapshot of field state, not a partially updated one.

PCB Construction and Conformal Coating: The IT41 PCB uses a multi-layer construction with dedicated ground planes separating analog signal layers from digital logic layers. Conformal coating (acrylic or polyurethane, per Siemens manufacturing specification) is applied to the populated board surface, providing resistance to condensation, industrial particulates, and mild chemical vapors. This is not a cosmetic treatment — it directly extends MTBF in environments where ambient humidity cycles between shift changes or where cooling air carries metallic dust from machining operations.

Connector and Contact Reliability: The front connector uses gold-plated contacts on the field-wiring side to prevent oxidation-induced contact resistance increase over multi-year service intervals. The backplane edge connector uses a wiping contact geometry that self-cleans during insertion, maintaining low-resistance electrical contact even after repeated module swaps during maintenance cycles.

System Integration Benefits

• Deterministic scan-cycle contribution: Fixed time-slot bus arbitration means each IT41 module adds a known, constant increment to the rack’s I/O scan time — no probabilistic latency, no bus retry overhead.
• Zero-reconfiguration rack expansion: Adding an IT41 to an empty slot requires only DIP switch addressing; the central processor’s I/O map is updated via the SIMADYN D configuration tool without hardware modification to existing modules.
• Galvanic isolation preserves signal accuracy: Field-to-bus isolation prevents ground loops from introducing DC offset errors into analog measurements — critical for torque and speed feedback signals where 1 % accuracy is a control-loop requirement.
• Mixed I/O population support: IT41 modules coexist in the same rack with IT42, IT43, and other SIMADYN D I/O cards. Slot assignments are independent; no firmware arbitration is required between module types.
• Diagnostic transparency: The SIMADYN D / TDC platform provides per-slot diagnostic status via the processor’s system bus. A failed or missing IT41 generates a rack fault code that is readable from the engineering workstation without physical rack inspection.
• Hot-swap compatibility (platform-dependent): On Simatic TDC configurations with redundant power supply, IT41 modules can be replaced under power in non-safety-critical slots, reducing planned maintenance downtime.
• Scalable channel density: Multiple IT41 modules can be populated across available rack slots, scaling total I/O channel count without additional rack hardware or external I/O sub-systems.
• Long-term spare-parts availability: The 6DD1606-3AC0 remains available through industrial surplus and specialist distributors, supporting legacy SIMADYN D installations that are not scheduled for platform migration within the current capital planning horizon.

Quality Assurance & Global Logistics

Every 6DD1606-3AC0 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Visual inspection confirms PCB integrity, connector condition, and label authenticity — including Siemens holographic markings and component date codes cross-referenced against known-good reference units to identify counterfeit risk. Connector pins are inspected under magnification for deformation or oxidation. ESD handling follows IEC 61340-5-1 throughout the receiving, storage, and packing workflow.

Units are packed in anti-static ESD bags, cushioned in foam-lined cartons, and sealed with tamper-evident tape. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment to facilitate customs clearance in the destination country. Shipping is via DHL Express or FedEx International Priority, with full tracking provided at dispatch. Transit time to most destinations in Europe, North America, Southeast Asia, and the Middle East is 3–5 business days from Xiamen.

The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Dead-on-arrival units are replaced within 7 business days of confirmed fault report. Our technical team is available to assist with incoming inspection procedures and installation verification for customers integrating the module into an existing SIMADYN D or Simatic TDC rack.
