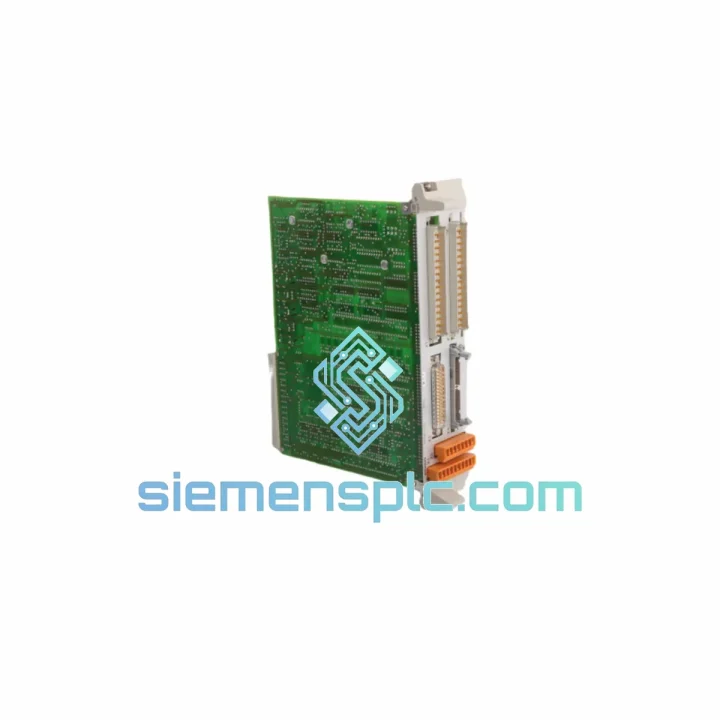

Siemens 6DD1681-0CA2 Interface Module

Siemens 6DD1681-0CA2 — Stop the Bleeding. Get Your Line Back in 48 Hours.

Every minute your SIMADYN D system is down, the losses compound. A steel rolling mill running at 300 tons/hour doesn’t pause for procurement lead times. A paper machine mid-run doesn’t wait for a 6-week factory order. When the 6DD1681-0CA2 interface module fails, you need a replacement on the bench — not a purchase order in a queue. We stock this module in Xiamen, tested and ready to clear customs today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 6DD1681-0CA2 sits at the intersection of the master rack and expansion racks in a SIMADYN D architecture. When it fails, the symptoms are rarely subtle — you’ll see one or more of the following before the system trips:

• F-code F025 / F026 (Rack Communication Fault): The master CPU loses cyclic communication with the expansion rack. If this fault clears on reset but returns within minutes, the interface module is the first suspect — not the cable.
• Intermittent I/O dropout on expansion rack cards: Analog or digital I/O modules in the SR2/SR3 rack respond erratically. Root cause is often degraded signal integrity on the 6DD1681-0CA2’s bus driver ICs, which deteriorate under thermal cycling over years of service.
• System bus LED off or flickering: The green BUS LED on the module front panel should be solid during normal operation. Flickering indicates marginal bus termination or a failing driver stage inside the module.
• No fault, but rack not recognized after power cycle: The module handles rack initialization handshake. A failed EPROM or corrupted firmware on the module will cause the expansion rack to be invisible to the master CPU after a cold start, even though all other hardware is intact.

Replacement procedure — what to check before you swap:

1. Verify rack address DIP switches: The 6DD1681-0CA2 uses onboard DIP switches (SW1) to set the rack address. Before pulling the old module, photograph the switch positions. The replacement must be set identically — rack address mismatch will cause the same F025/F026 fault you’re trying to clear.
2. Check firmware revision compatibility: SIMADYN D firmware versions are tightly coupled to hardware revisions. If your master CPU is running firmware ≥ V4.x, confirm the replacement module’s hardware revision (printed on the label, e.g., “A5E…”) is compatible. Mixing early hardware with late firmware can cause non-obvious timing faults.
3. Power down the entire rack before extraction: The SIMADYN D backplane does not support hot-swap on interface modules. Attempting live extraction risks corrupting the master CPU’s rack map and may require a full system re-initialization.
4. Inspect the backplane connector pins: Bent or oxidized pins on the rack slot are a common secondary cause of interface module failures. Clean with isopropyl alcohol and a soft brush before inserting the replacement.
5. Cold-start sequence after replacement: Power up the master rack first, wait for the CPU to reach RUN state, then power the expansion rack. This ensures the master CPU performs a clean rack discovery cycle with the new module.

Reliability in Harsh Conditions

SIMADYN D was engineered for environments that would destroy consumer-grade electronics in weeks. The 6DD1681-0CA2 reflects that design philosophy at the component level.

The PCB uses conformal coating on critical signal traces, providing resistance to condensation and airborne contaminants common in steel mills and paper plants. Bus driver ICs are rated for extended temperature ranges, maintaining signal integrity across the full 0–55 °C operating envelope without derating. The module’s mechanical design uses a guided insertion rail and positive-locking ejector levers — not friction fit — ensuring consistent backplane contact even after hundreds of insertion cycles in high-vibration environments.

Vibration tolerance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-27 (shock), consistent with Siemens’ industrial automation product qualification standards. In marine and offshore deployments — where SIMADYN D has been used extensively in ship propulsion and dynamic positioning — the module has demonstrated multi-year MTBF under continuous salt-air exposure when properly installed in sealed enclosures.

Units in our inventory are stored in climate-controlled conditions at 20–25 °C with humidity control, in ESD-safe packaging. Every module undergoes visual inspection of PCB, connectors, and housing, plus a power-on functional check before dispatch. We do not ship modules that show signs of prior rework, burnt components, or connector damage.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This is not a drop-ship arrangement. Stock is physically on our shelves.

• Order cutoff: Orders confirmed before 14:00 CST ship same business day.
• DHL Express Worldwide: Europe, North America, Australia — typically 2–4 business days door to door.
• FedEx International Priority: Southeast Asia, Middle East, South America — typically 3–5 business days.
• Export documentation: Commercial invoice, packing list, and certificate of origin provided as standard. HS code 8537.10 declared. We handle export customs clearance from the China side.
• Import advisory: For destinations with import duties on industrial electronics, we recommend your freight forwarder pre-clear the HS code with local customs before shipment. We can provide product specifications to support this process.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent to your registered email.

For time-critical shipments where a production line is down, contact us directly via WhatsApp for same-day coordination. We have handled emergency dispatches to Germany, India, Brazil, and South Korea with confirmed delivery within 72 hours of order placement.
