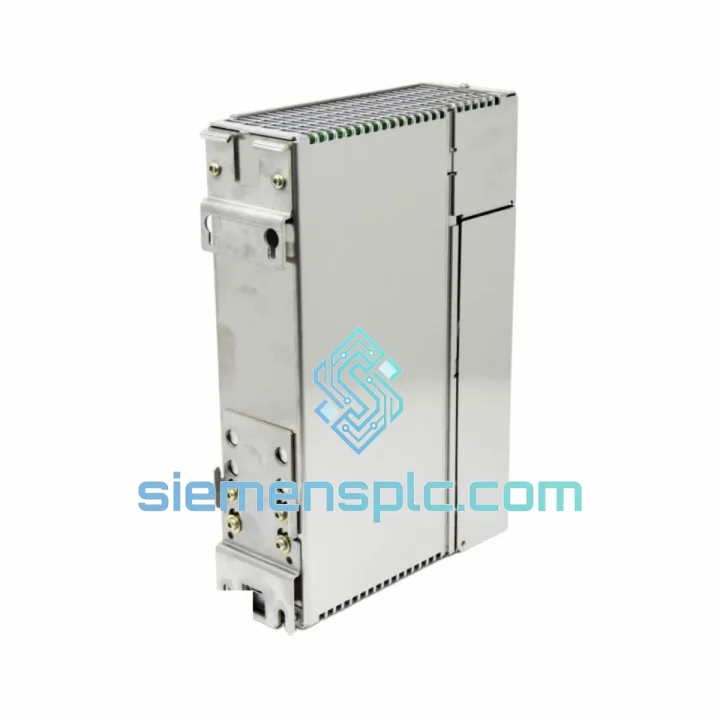

Siemens 6DL3100-8AA Front End Module – SIMATIC TDC

Siemens 6DL3100-8AA — Profibus DP Master Front End Module for SIMATIC TDC Process Control Architecture

The 6DL3100-8AA is a Front End Module (FEM) designed for the SIMATIC TDC (Technology and Drive Control) platform, functioning as a Class 1 Profibus DP master. Its primary role within a control loop is to manage the cyclic data exchange between the TDC central processing unit and distributed field devices — including remote I/O stations, variable-speed drives, valve positioners, and intelligent transmitters — over a deterministic Profibus DP segment. Unlike gateway-based fieldbus solutions, the 6DL3100-8AA integrates directly onto the TDC backplane bus, eliminating inter-protocol translation latency and preserving the bounded cycle-time guarantees that closed-loop process control demands.

In a typical PCS 7 or TDC architecture, the FEM occupies a dedicated slot in the TDC rack and communicates upstream with the CPU module via the high-speed internal bus. Downstream, it drives the Profibus DP segment at baud rates from 9.6 kbps up to 12 Mbps, auto-negotiating to the fastest rate supported by all connected slaves. The module handles token-ring arbitration, slave address management, and diagnostic data collection autonomously, offloading these tasks from the CPU and allowing the processor to focus on control algorithm execution. This architectural separation is a deliberate design choice that improves overall system determinism — the CPU scan cycle is not burdened by fieldbus polling overhead.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6DL3100-8AA implements the Profibus DP token-passing MAC (Medium Access Control) layer in dedicated onboard firmware, separate from the TDC CPU’s application processor. This means the DP polling cycle runs on a fixed hardware timer, not subject to CPU load variations — a critical distinction for applications where jitter in fieldbus scan time would propagate into control loop instability.

EMC Design: The module’s Profibus DP physical layer uses RS-485 differential signaling with onboard common-mode choke filtering and transient voltage suppression (TVS) diodes on the bus lines. This passive protection architecture suppresses conducted interference up to the levels specified in IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge), which are the dominant noise sources in industrial cabinet environments near variable-frequency drives and contactor banks.

Backplane Bus Arbitration: Communication between the FEM and the TDC CPU traverses the rack’s internal parallel bus under a deterministic arbitration scheme. The FEM holds a fixed time slot in the bus cycle, preventing bus contention even when multiple FEMs are installed in the same rack. This slot-based arbitration is what allows engineers to calculate worst-case data latency from field device to CPU with mathematical precision — a requirement for SIL-assessed control loops.

Diagnostic Data Handling: The 6DL3100-8AA collects DP slave diagnostic frames (DPV1 Class 1 and Class 2 services) and buffers them in onboard SRAM before forwarding to the CPU. This buffering prevents diagnostic traffic from disrupting the cyclic I/O exchange — a common failure mode in simpler DP master implementations where diagnostic floods from a failing slave can collapse the entire segment’s cycle time.

Segment Termination Logic: The module’s RS-485 driver includes programmable termination resistor control, allowing the engineer to activate or deactivate bus termination at the FEM end of the segment via software configuration rather than physical jumpers. This reduces commissioning errors in long-cable installations where incorrect termination is a frequent source of intermittent communication faults.

System Integration Benefits

• Zero-gateway fieldbus integration: Direct backplane mounting eliminates the protocol conversion step between Profibus DP and the TDC internal bus, removing a failure point and reducing end-to-end I/O latency by the gateway processing time (typically 2–10 ms in competing architectures).
• Deterministic cycle-time guarantee: Token-passing MAC with hardware-timed polling ensures that worst-case DP cycle time is calculable at design stage, enabling engineers to validate control loop bandwidth before commissioning.
• High slave density per module: Addressing up to 125 DP slaves per segment reduces the number of FEM slots required in large DCS installations, lowering rack count and cabinet footprint.
• GSD-based third-party device support: Full GSD (General Station Description) file integration in SIMATIC Manager allows non-Siemens DP slaves — drives, analyzers, weighing systems — to be configured within the same engineering environment without custom driver development.
• Redundancy architecture compatibility: The module is compatible with SIMATIC TDC redundancy concepts, supporting hot-standby FEM configurations where a second module takes over the DP master role within one bus cycle upon primary failure detection.
• Diagnostic transparency: DPV1 Class 1 and Class 2 diagnostic services surface slave-level fault data — including channel-specific I/O errors, supply voltage failures, and communication timeouts — directly in the SIMATIC fault log without requiring separate diagnostic hardware.
• Scalable baud rate selection: Auto-negotiation from 9.6 kbps to 12 Mbps allows the same module to serve both legacy installations with older, slower slaves and modern high-speed DP networks without hardware changes.
• Reduced CPU scan load: Offloading DP polling, token management, and diagnostic collection to the FEM’s dedicated processor frees CPU cycles for control algorithm execution, allowing higher-density loop configurations on a single TDC CPU module.

Quality Assurance & Global Logistics

Every 6DL3100-8AA unit dispatched from our Xiamen, China facility is sourced through verified supply channels with full batch traceability. Authenticity screening — including label verification, date-code cross-referencing, and physical inspection against Siemens OEM specifications — is performed on receipt. Units are stored in ESD-controlled, climate-regulated warehouse conditions to prevent electrostatic discharge damage and humidity-induced corrosion on connector contacts.

Prior to dispatch, each module undergoes a powered functional test: backplane bus communication is verified, Profibus DP segment initialization is confirmed at multiple baud rates, and onboard diagnostic LEDs are checked against expected states. Test records are retained and available on request.

Shipping from Xiamen covers all major global destinations. Standard export documentation — commercial invoice, packing list, and certificate of origin — is provided with every shipment. Incoterm options include EXW, FOB Xiamen, CIF, and DDP. Air freight to Europe and North America typically achieves 3–5 business day transit. Sea freight consolidation is available for multi-unit orders. All shipments are packed in anti-static bags within foam-lined, double-walled cartons rated for international air and sea handling. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.
