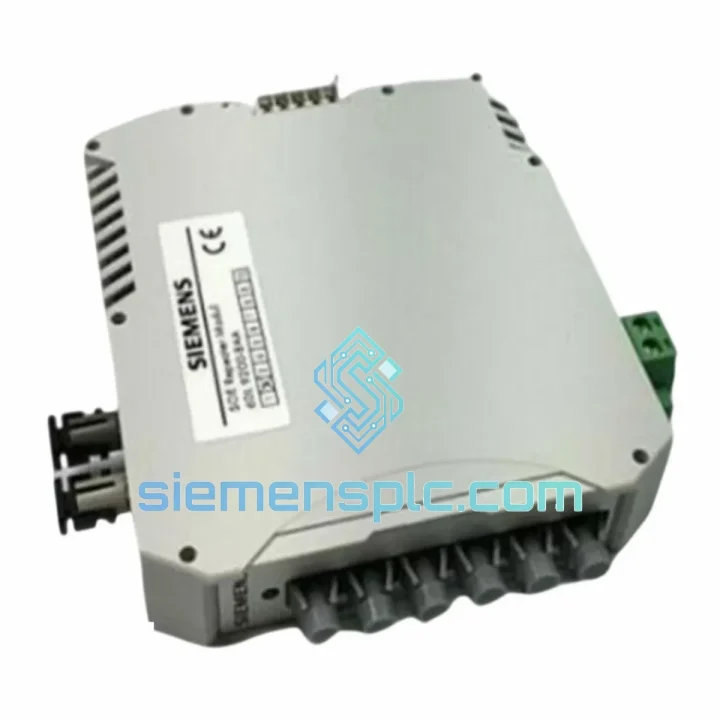

Siemens 6DL9200-8AA Bus Repeater – SIMATIC PCS 7

Siemens 6DL9200-8AA PROFIBUS DP Bus Repeater — Signal Integrity Architecture for Distributed Control Networks

The Siemens 6DL9200-8AA is a hardware-layer PROFIBUS DP bus repeater engineered for deployment within SIMATIC PCS 7 process control systems and ET 200 distributed I/O architectures. Its primary function is the physical regeneration of RS-485 differential signals across segment boundaries, enabling engineers to extend PROFIBUS DP networks beyond the single-segment cable length limit while preserving timing integrity and bus arbitration determinism. Unlike software-level protocol bridges, this module operates transparently at the physical layer — it neither modifies frame content nor introduces protocol overhead, making it fully invisible to the DP master during GSD-based configuration.

In large-scale process plants — petrochemical complexes, power generation facilities, water treatment infrastructure — PROFIBUS DP backbones routinely span distances that exceed the 1,200 m cable limit imposed at 93.75 kbit/s. The 6DL9200-8AA addresses this constraint by providing two galvanically isolated RS-485 segments, each capable of supporting up to 32 nodes, with full baud rate support from 9.6 kbit/s through 12 Mbit/s. The galvanic isolation between segments is a critical design feature: it eliminates ground potential differences between geographically separated cabinet sections, suppresses common-mode noise induced by high-power motor drives and switchgear, and prevents ground loop currents from corrupting bus differential voltage levels.

The module mounts on standard 35 mm DIN rail and draws power from a 24 V DC supply, consistent with the power distribution architecture of ET 200M and ET 200S remote I/O stations. Its compact form factor and passive thermal management — no active cooling required — make it suitable for installation inside sealed control enclosures where airflow is restricted. Operating temperature range of 0 °C to +60 °C covers the majority of indoor industrial environments, while storage tolerance down to −40 °C accommodates cold-chain logistics and warehouse conditions in northern climates.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6DL9200-8AA implements a store-and-forward signal regeneration architecture at the RS-485 physical layer. When a PROFIBUS DP frame arrives on Segment A, the repeater’s line receiver detects the differential voltage transition (minimum ±200 mV per RS-485 specification), reconstructs the bit stream, and re-drives it onto Segment B through an independent RS-485 line driver. This process restores signal amplitude to the full ±5 V differential swing, eliminates accumulated cable attenuation, and removes reflections caused by impedance discontinuities in long cable runs.

Baud Rate Auto-Detection: The module does not require manual baud rate configuration. An internal phase-locked loop (PLL) circuit synchronizes to the incoming bit stream within the first few frames after power-up, locking to the active baud rate across the full 9.6 kbit/s to 12 Mbit/s range. This eliminates commissioning errors caused by DIP switch misconfiguration — a common failure mode in competing repeater designs.

EMC Design: The PCB layout employs a split ground plane strategy: the two RS-485 segment circuits share no common ground reference, with isolation achieved through a transformer-coupled DC/DC converter for the segment power rails and optocoupler-based signal crossing for the data path. This architecture provides a minimum of 500 V DC isolation between segments, sufficient to withstand the ground potential differences encountered in large industrial plants where cabinet earth references may differ by tens of volts due to resistive ground paths.

Bus Termination Handling: Each segment port includes switchable bus termination resistors (390 Ω pull-up / 220 Ω termination / 390 Ω pull-down) conforming to the PROFIBUS DP RS-485 termination network specification. When the repeater is positioned at a segment endpoint, the termination network must be enabled on that port to prevent signal reflections that would corrupt bus timing at baud rates above 1.5 Mbit/s.

Propagation Delay: The bit-level regeneration introduces a fixed propagation delay of approximately 1 bit time per repeater stage. At 12 Mbit/s, this corresponds to 83 ns — well within the PROFIBUS DP slot time budget, which permits up to 9 repeaters in series without violating the maximum network propagation delay constraint defined in IEC 61158-4.

System Integration Benefits

• Transparent Bus Operation: The repeater is invisible to the DP master’s GSD configuration. No additional GSD file, address assignment, or parameterization is required — the master sees a single logical PROFIBUS segment regardless of the number of repeater stages inserted.
• Deterministic Real-Time Response: Fixed, predictable propagation delay per repeater stage allows system engineers to calculate worst-case bus cycle times with precision, preserving the deterministic timing guarantees required by PCS 7 closed-loop control applications.
• Ground Loop Elimination: Galvanic isolation between segments removes the primary cause of intermittent bus errors in plants where multiple earthing systems coexist — a condition common in brownfield expansions where new cabinets are added to existing infrastructure.
• Network Topology Flexibility: By cascading up to 9 repeater units, engineers can construct PROFIBUS DP networks spanning up to 10,800 m at 93.75 kbit/s, enabling single-network coverage of large process units without migrating to PROFINET or fiber optic alternatives.
• Noise Immunity in High-EMI Environments: The RS-485 differential signaling, combined with the repeater’s signal regeneration, maintains a noise margin of ≥ 200 mV even in environments with conducted and radiated interference from variable-frequency drives (VFDs), contactors, and high-voltage switchgear operating in adjacent cable trays.
• Diagnostic Transparency: Because the repeater operates at the physical layer without modifying frame content, all PROFIBUS DP diagnostic mechanisms — including slave diagnostics, live list monitoring, and bus statistics collected by STEP 7 or TIA Portal — function normally across repeater boundaries. Fault localization is not impeded by the repeater’s presence.
• Segment Load Isolation: Each segment independently supports up to 32 nodes. By distributing I/O slaves across segments, engineers reduce the electrical load on any single cable run, lowering the risk of signal degradation caused by excessive stub capacitance from multiple device connections.
• Compatibility with Existing PCS 7 Engineering Workflow: The module integrates without modification into SIMATIC PCS 7 hardware configurations managed in SIMATIC Manager or TIA Portal. No additional software license, firmware update, or hardware configuration block is required — commissioning is limited to physical installation and termination switch setting.

Quality Assurance & Global Logistics

Every Siemens 6DL9200-8AA unit supplied by siemensplc.com is sourced through verified Siemens-authorized distribution channels. Each module undergoes incoming inspection covering label authenticity verification, firmware version confirmation, and physical integrity assessment prior to warehousing. Units are stored in ESD-controlled environments at our Xiamen, China facility, packaged in anti-static bags within shock-resistant corrugated cartons with foam inserts rated for international air freight handling.

Shipments from Xiamen reach major industrial hubs across Asia-Pacific within 3–5 business days via DHL Express or FedEx International Priority. European and North American destinations are typically served within 5–7 business days. For urgent plant shutdowns or unplanned maintenance events, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include a commercial invoice, packing list, and certificate of origin. Traceability documentation — including batch records and incoming inspection reports — is available upon request for projects subject to IEC 61511 functional safety audits or ISO 9001 procurement requirements.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 48 hours and replacement dispatch within 5 business days of confirmed fault diagnosis.
