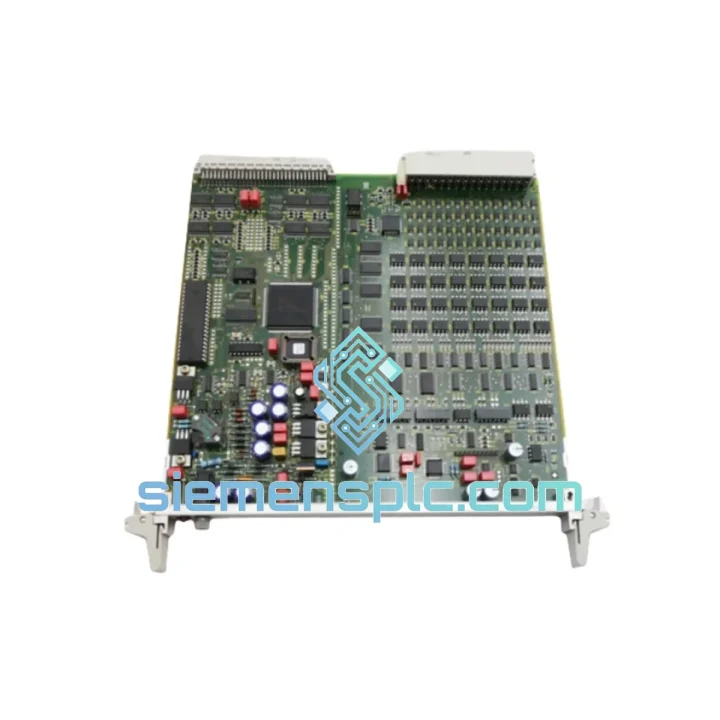

Siemens 6DP1232-8BA DCS Analog Module – TELEPERM M

Siemens 6DP1232-8BA: Multi-Channel Analog I/O Module in TELEPERM M Signal Conditioning Architecture

The Siemens 6DP1232-8BA is a multi-channel analog input/output module engineered for the TELEPERM M distributed control system (DCS) platform. Within a TELEPERM M control loop, this module occupies the signal conditioning layer between field instrumentation and the central processing unit — converting raw 4–20 mA or 0–10 V field signals into digitized process values that the DCS controller can act upon, and simultaneously converting controller output commands back into analog actuator signals. Its role is not peripheral; it is the primary data gateway between the physical process and the control logic, and its measurement accuracy directly determines loop stability, setpoint tracking, and alarm fidelity across the entire control hierarchy.

Unlike general-purpose I/O cards, the 6DP1232-8BA is designed around the electrical and timing constraints of the TELEPERM M backplane bus. Signal acquisition, analog-to-digital conversion, and bus arbitration are handled in a tightly coupled sequence that preserves scan-cycle determinism — a property that generic third-party analog cards cannot replicate without custom firmware adaptation. For plants operating continuous processes where a 50 ms deviation in loop update rate can propagate into downstream instability, this determinism is an engineering requirement, not a preference.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6DP1232-8BA implements galvanic isolation at the channel boundary using optocoupler arrays on the analog input side and isolated DC/DC converter stages on the output drive circuits. This architecture breaks ground loops that are endemic in large industrial installations where field instruments, junction boxes, and control cabinets share multiple earthing points across hundreds of meters of cable. Without channel-level galvanic isolation, common-mode voltages induced by ground potential differences — typically 1–5 V in petrochemical plants, occasionally exceeding 10 V near high-current motor drives — would corrupt the 4–20 mA signal and introduce measurement errors that no software filter can fully compensate.

The analog-to-digital conversion chain uses a successive approximation register (SAR) architecture at 12-bit resolution, yielding a theoretical LSB step of approximately 4.88 µA across the 4–20 mA span. In practice, the module’s total measurement error budget — including gain error, offset error, and non-linearity — is held within ±0.1% of full scale under rated operating conditions, which corresponds to ±16 µA on a 4–20 mA loop. For a pressure transmitter calibrated to 0–100 bar, this translates to a worst-case measurement uncertainty of ±0.1 bar, well within the tolerance bands of most process control applications.

On the output side, the DAC stage drives a voltage-to-current converter with a load compliance range sufficient to drive standard 250 Ω to 600 Ω field devices. The output stage includes short-circuit protection and open-loop detection circuitry that flags wire-break conditions to the DCS controller without requiring external monitoring relays — a hardware-level diagnostic feature that reduces the auxiliary wiring burden in marshalling cabinets.

The backplane bus interface logic implements a handshake protocol with the TELEPERM M central processing unit that enforces deterministic data transfer timing. Each scan cycle, the CPU polls the module’s data registers in a fixed sequence; the module’s local bus controller holds the data stable in output latches until the CPU acknowledges receipt. This latch-and-acknowledge mechanism prevents data tearing — a condition where the CPU reads a partially updated register during an ADC conversion cycle — and is the hardware foundation of the TELEPERM M system’s real-time determinism guarantee.

EMC hardening is implemented at the PCB level through a combination of ground plane segmentation, ferrite bead filtering on all I/O lines entering the module, and transient voltage suppressor (TVS) diodes on the field terminal block. The TVS devices clamp inductive transients from solenoid valves and relay coils to safe levels before they can reach the ADC input stage, protecting measurement integrity in environments where field wiring runs adjacent to power cables.

System Integration Benefits

• Deterministic scan-cycle participation: The module’s bus controller synchronizes data updates to the TELEPERM M CPU scan cycle, ensuring that every control loop iteration operates on a consistent, time-stamped process value — eliminating the jitter that degrades PID tuning in asynchronous I/O architectures.
• Hardware-level wire-break detection: Open-loop detection on analog output channels generates a diagnostic flag at the module level, propagating a fault signal to the DCS alarm system within one scan cycle — faster than any software watchdog implementation.
• Channel-level galvanic isolation: Eliminates ground loop interference without requiring external isolation barriers in the marshalling cabinet, reducing panel wiring complexity and potential failure points.
• Configurable signal range: Field-selectable 4–20 mA or 0–10 V operation on both input and output channels allows a single module type to serve multiple instrument types across the plant, reducing spare parts inventory.
• Backplane power delivery: The module draws supply exclusively from the TELEPERM M backplane, eliminating the need for dedicated field power supplies and simplifying cabinet power budgeting.
• Thermal operating margin: Rated to 60 °C ambient, the module operates within specification in non-air-conditioned auxiliary rooms and outdoor enclosures with passive ventilation — common in utility and water treatment installations.
• Direct engineering tool compatibility: Fully recognized by the TELEPERM M engineering station and STEP 5 toolchain, enabling module parameterization, diagnostics, and loop documentation without third-party software adapters.
• Like-for-like replacement geometry: Identical mechanical form factor to all 6DP1232-series modules allows hot-swap replacement in the subrack without disturbing adjacent modules or field wiring — critical for maintenance windows in continuous-process plants.
• Proven long-term field reliability: The TELEPERM M platform has accumulated decades of operational data in refinery, chemical, and power generation environments; the 6DP1232-8BA’s component selection and derating factors reflect this service history.
• Reduced commissioning time: Module auto-identification on the TELEPERM M backplane allows the engineering station to detect and configure the module without manual address setting, cutting commissioning time per I/O card.

Quality Assurance & Global Logistics

Every 6DP1232-8BA unit shipped from our Xiamen, China facility undergoes a structured pre-shipment verification process. Visual inspection confirms label integrity, connector pin condition, and the absence of physical damage or counterfeit markings. Functional verification checks bus communication handshake response and analog channel continuity against reference values. Units sourced from authorized distribution channels carry full Siemens part traceability documentation; surplus-channel units are cross-referenced against Siemens part marking standards and rejected if any discrepancy is identified.

Packaging follows IEC 60068-2 transport vibration and shock guidelines: anti-static bags, foam-lined cartons, and moisture-barrier desiccant packs are standard for all shipments. For international orders, we prepare commercial invoices with accurate HS code classification (8537.10 for programmable controllers and associated I/O modules) to minimize customs clearance delays. Express courier options (DHL, FedEx, UPS) provide door-to-door transit times of 3–7 business days to most destinations in Europe, the Americas, Southeast Asia, and the Middle East. Freight forwarding and consolidated shipment arrangements are available for bulk orders. All shipments include tracking numbers issued within 24 hours of dispatch, and our logistics team monitors customs clearance status proactively for high-value consignments.

A 12-month warranty covers all units against defects in materials and workmanship from the date of shipment. Warranty claims are processed with a target response time of 48 hours; replacement units are dispatched before the defective unit is returned in cases where production continuity is at risk.
