Siemens 6DS1722-8BB Analog Input Module – TELEPERM M

Siemens 6DS1722-8BB 8-Channel Analog Input Module for TELEPERM M DCS — Acquisition Architecture & Control Loop Role

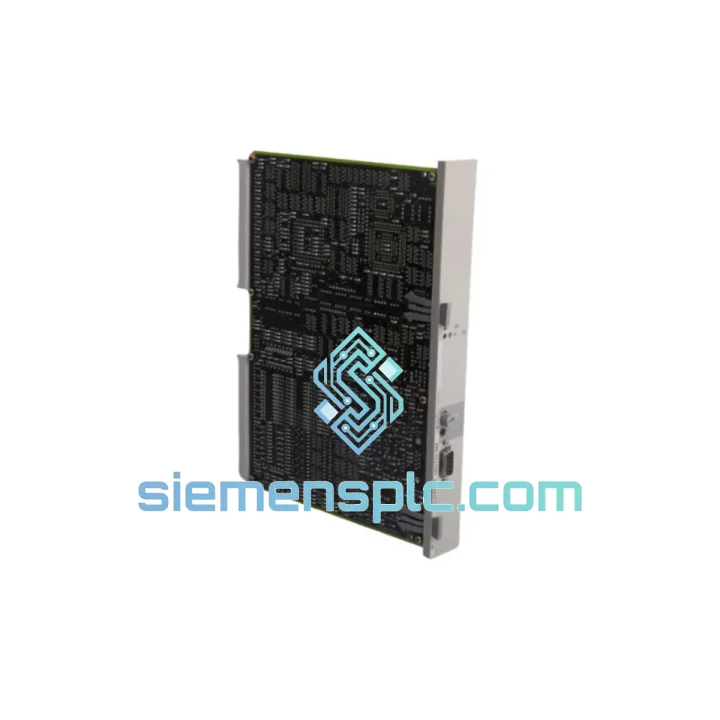

The Siemens 6DS1722-8BB is an 8-channel analog input module purpose-built for the TELEPERM M distributed control system platform. Its primary function within a control loop is to serve as the signal acquisition front-end: converting continuous physical process variables — pressure, temperature, flow, level — from field transmitters into digitized values that the TELEPERM M automation station CPU can act upon within its deterministic scan cycle. Without a reliable, accurately calibrated analog input stage, the entire closed-loop control architecture loses its observability. The 6DS1722-8BB addresses this at the hardware level through a combination of per-channel multiplexing, a shared 12-bit successive-approximation ADC, and a galvanic isolation barrier that decouples field-side ground references from the backplane bus logic.

In legacy DCS environments — particularly those operating under long-term service agreements in petrochemical, power generation, and heavy process industries — the availability of OEM-grade replacement modules is a direct operational risk factor. A single failed analog input card can take an entire process loop offline, triggering unplanned shutdowns that carry costs measured in tens of thousands of dollars per hour. Sourcing the 6DS1722-8BB through a verified specialist supplier with confirmed stock eliminates that exposure.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Multiplexed ADC Architecture: The 6DS1722-8BB uses a single 12-bit successive-approximation register (SAR) ADC shared across all 8 input channels via an analog multiplexer. This design choice — common in Siemens TELEPERM M I/O cards of this generation — reduces component count and thermal dissipation compared to per-channel ADC architectures, while maintaining sufficient throughput for the 100 ms–1 s scan cycles typical of process control applications. The MUX sequencing is controlled by the module’s onboard microcontroller, which also manages bus handshaking with the TELEPERM M CPU.

Galvanic Isolation Mechanism: Field-side circuitry and bus-side logic operate on entirely separate ground planes. The isolation barrier — implemented via optocouplers on the digital data path and DC/DC converter isolation on the power rail — provides a rated 500 V AC withstand between field terminals and the backplane connector. This is not a software-configurable feature; it is a fixed hardware characteristic that prevents ground loop currents from corrupting ADC readings and protects the backplane bus from field-side transients caused by cable faults, lightning coupling, or motor switching noise.

EMC Design: The module’s PCB layout follows Siemens’ internal EMC guidelines for industrial control hardware: analog signal traces are routed away from digital clock lines, the ADC reference voltage is filtered with a dedicated LC network, and the front-panel terminal block includes transient voltage suppression (TVS) diodes on each input pin. These measures allow the module to operate within IEC 61000-4 immunity levels for conducted and radiated disturbances — a requirement in environments with variable-frequency drives, large motor contactors, and high-current bus bars in proximity to control cabinets.

Input Range Configuration: Per-channel input range selection (current vs. voltage) is achieved through jumper settings on the module PCB, not through software parameterization alone. This hardware-level configuration ensures that the input impedance presented to the field transmitter is correct for the selected signal type: low impedance (≤ 50 Ω burden) for current loop inputs, high impedance (≥ 100 kΩ) for voltage inputs. Incorrect configuration at this level would introduce systematic measurement error that software calibration cannot fully compensate.

Backplane Bus Protocol: Data transfer to the TELEPERM M CPU occurs over the platform’s proprietary parallel internal bus. The module responds to CPU polling within a defined bus cycle window, placing digitized channel values into a shared memory-mapped register space. The CPU reads these registers at the configured scan rate and passes values to the process image for PID computation. Bus arbitration is handled by the subrack controller; the 6DS1722-8BB does not require individual addressing configuration beyond its physical slot position.

System Integration Benefits

• Zero-Reconfiguration Slot Replacement: The 6DS1722-8BB is fully pin-compatible with the TELEPERM M subrack. Swapping a failed module requires no firmware upload, no engineering tool session, and no bus address reassignment — the replacement card inherits the slot’s configuration from the CPU’s process image map immediately upon power-up.
• Deterministic Scan Cycle Contribution: Because the module’s ADC conversion time is fixed and the bus handshake latency is bounded, the CPU can schedule analog input reads with microsecond-level jitter. This determinism is essential for cascade control loops where the inner loop’s scan period must be a precise fraction of the outer loop’s period.
• Diagnostic Transparency via Bus Status Bits: The module reports wire-break detection (for 4–20 mA inputs below 3.6 mA) and over-range conditions as status bits alongside each channel’s process value. The TELEPERM M CPU propagates these diagnostics to the operator station, enabling maintenance teams to identify field instrument faults without physical inspection of the cabinet.
• Ground Loop Immunity: In multi-transmitter field wiring configurations where transmitters share a common negative rail, galvanic isolation prevents circulating ground currents from introducing offset errors into adjacent channels. This is particularly relevant in older plant installations where cable shielding practices may not meet current IEC 61000-5-2 recommendations.
• Reduced Spare Parts Inventory Complexity: The module’s support for both current and voltage inputs on the same hardware platform means a single spare unit covers multiple loop types. Maintenance planners can reduce the number of distinct spare part numbers held in the warehouse without sacrificing coverage.
• Compatibility with TELEPERM M AS 230 and AS 235: The 6DS1722-8BB operates identically across both automation station variants. Plants running mixed AS 230/AS 235 architectures can maintain a single spare pool rather than stocking separate modules per station type.
• Long MTBF Supports Predictive Maintenance Scheduling: With a mean time between failures exceeding 150,000 hours under rated conditions, the module’s failure rate is low enough that condition-based replacement — triggered by diagnostic status bits rather than calendar-based intervals — is a viable maintenance strategy, reducing unnecessary preventive replacement costs.
• Preserved Signal Integrity Across Long Cable Runs: The 4–20 mA current loop input mode is inherently immune to resistive voltage drop across field cable lengths up to several hundred meters. The module’s low burden resistance (≤ 50 Ω) ensures that transmitters operating near their compliance voltage limit can still drive the full 20 mA signal without clipping.

Quality Assurance & Global Logistics

Genuine Siemens Origin: Every 6DS1722-8BB unit supplied by siemensplc.com carries its original Siemens AG part number label, date code, and hardware revision marking. Units are sourced through verified industrial channels — authorized distributors, OEM surplus, and decommissioned plant inventories with documented provenance. No third-party modifications, re-labeling, or firmware alterations are performed. Counterfeit screening includes label authentication, PCB visual inspection against known-good reference units, and functional power-on verification.

Pre-Shipment Inspection Protocol: Each module undergoes a structured inspection sequence before dispatch: physical integrity check (connector pins, PCB, front-panel label), ESD handling per IEC 61340-5-1, functional power-on test confirming bus communication and channel response, and packaging in anti-static bag with foam-lined carton. A unit-level inspection record is available upon request.

12-Month Warranty: siemensplc.com provides a 12-month warranty from the shipment date covering functional defects under normal operating conditions. Warranty claims are processed with a target replacement dispatch of 5 business days. This warranty period aligns with typical plant annual maintenance cycles, allowing procurement teams to plan spare parts budgets with a defined coverage horizon.

Xiamen Export Hub — Logistics Advantage: Xiamen Gaoqi International Airport and Xiamen Port collectively handle substantial volumes of industrial component exports to Southeast Asia, the Middle East, Europe, and the Americas. siemensplc.com’s Xiamen-based warehouse enables same-day dispatch for in-stock orders placed before 14:00 CST. Standard express freight options include DHL Express (2–4 business days to most destinations), FedEx International Priority, and UPS Worldwide Express. All shipments include a commercial invoice, packing list, and certificate of conformity. Customs documentation is prepared in compliance with Xiamen Customs regulations, with HS code classification verified for each destination country to minimize clearance delays.

Multi-Currency Payment: Orders are accepted in USD, EUR, CNY, and HKD. Bank wire transfer (T/T), PayPal, and trade finance arrangements are supported for qualified accounts.
