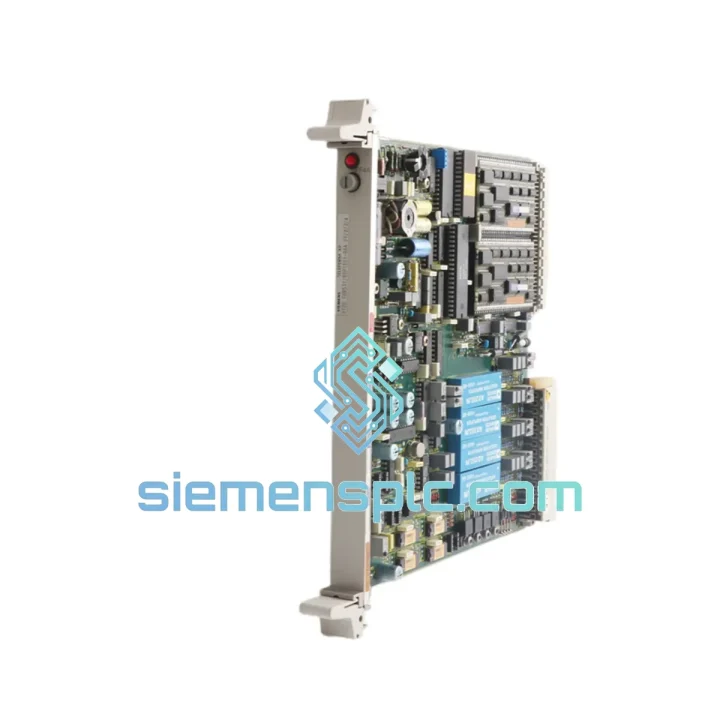

Siemens 6DP1531-8AA DCS Analog Module – TELEPERM M

Siemens 6DP1531-8AA: Analog Signal Coupling at the Core of TELEPERM M Process Control Architecture

The Siemens 6DP1531-8AA is an analog input coupling module purpose-built for the TELEPERM M Distributed Control System — a platform that has anchored continuous-process automation in power generation, petrochemical refining, and heavy manufacturing for decades. Its function is not peripheral: it sits at the boundary between the physical process and the digital control domain, converting field-level analog signals into bus-compatible data streams that the TELEPERM M automation station (AS) can act upon in real time.

Unlike generic signal conditioners, the 6DP1531-8AA is engineered to the mechanical, electrical, and timing constraints of the TELEPERM M backplane. It occupies a defined slot in the I/O subrack, draws supply from the backplane’s 24 V DC rail, and communicates with the AS via the internal TELEPERM M bus protocol — no external wiring, no protocol converters, no integration overhead. For facilities maintaining TELEPERM M infrastructure, this module is a direct, traceable replacement that restores loop integrity without re-engineering the control strategy.

Field transmitters — whether two-wire 4–20 mA current loops or voltage-output sensors — connect to the module’s screw-terminal field side. The 6DP1531-8AA performs galvanic isolation at this boundary, breaking the conductive path between field wiring and the DCS bus. This isolation is not a convenience feature; in industrial environments where ground potential differences between field instruments and control cabinets can reach tens of volts, galvanic isolation is the primary defense against common-mode interference that would otherwise corrupt analog readings and trigger spurious control actions.

The conditioned analog value is then scaled and transferred to the TELEPERM M controller, where it feeds PID loops, alarm comparators, and sequence logic. The module’s contribution to control loop determinism is direct: signal latency and conversion accuracy at the coupling stage set a hard floor on the achievable closed-loop response time and measurement uncertainty of every process variable it handles.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Galvanic Isolation Architecture
The 6DP1531-8AA implements transformer-based or optocoupler-based galvanic isolation at the field terminal boundary. This architecture creates a complete electrical discontinuity between the field wiring loop and the DCS backplane. In practical terms, a ground fault on the field side — whether from cable insulation breakdown, instrument housing contact with structural steel, or induced ground potential from adjacent high-voltage equipment — cannot propagate into the TELEPERM M bus. The isolation barrier sustains the specified isolation voltage continuously, not merely under test conditions, which is the relevant metric for 24/7 process plant operation.

EMC Design and Noise Rejection
Analog signal paths in industrial environments are subject to conducted and radiated interference from variable-frequency drives, high-current motor starters, and RF sources. The 6DP1531-8AA’s input stage incorporates filtering ahead of the isolation barrier to attenuate high-frequency common-mode and differential-mode noise. The result is that the digitized value presented to the TELEPERM M AS reflects the true process variable, not a noise-corrupted approximation. This is particularly significant in 4–20 mA loops where a 1 mA error represents 6.25 % of full-scale — a deviation that would trigger unnecessary control corrections in tight process loops.

Backplane Bus Timing and Determinism
The TELEPERM M backplane bus operates on a cyclic scan architecture. The 6DP1531-8AA is designed to complete its analog-to-bus conversion within the bus cycle time allocated to I/O modules, ensuring that the AS receives a fresh, valid analog value on every scan cycle. Modules that cannot meet this timing constraint introduce scan-cycle jitter into the control loop — a condition that degrades PID tuning stability and can cause limit-cycle oscillation in integrating processes. The 6DP1531-8AA’s internal conversion logic is matched to the TELEPERM M bus timing specification, preserving the deterministic scan behavior that the AS’s control algorithms depend on.

Field Terminal Design
Screw-terminal field connections on the 6DP1531-8AA are rated for the wire gauges and torque specifications standard in industrial panel wiring. The terminal block design accommodates both solid and stranded conductors without ferrule adapters, reducing installation time during commissioning and replacement. Terminal labeling follows TELEPERM M wiring documentation conventions, allowing maintenance technicians to verify connections against existing as-built drawings without translation.

System Integration Benefits

• Zero-Reconfiguration Replacement: The 6DP1531-8AA slots directly into the existing TELEPERM M subrack position. The AS recognizes the module on the next bus scan cycle without requiring parameter download or engineering tool intervention — critical when replacing a failed module during a process upset.
• Preserved Control Loop Integrity: Because the module’s signal scaling and bus timing match the original hardware specification, PID tuning parameters remain valid after replacement. There is no need to retune loops or adjust alarm setpoints following a like-for-like swap.
• Diagnostic Transparency: TELEPERM M’s system diagnostics can detect module-level faults, including loss of field signal (wire-break detection on 4–20 mA loops) and module hardware errors. The 6DP1531-8AA participates in this diagnostic framework, surfacing fault states to the operator station without requiring additional diagnostic hardware.
• Reduced Spare Parts Complexity: A single 6DP1531-8AA covers multiple analog input channels within the TELEPERM M I/O architecture, reducing the number of distinct spare part numbers a maintenance team must stock to cover analog input capacity.
• Compatibility with Existing Field Wiring: The module’s input impedance and loop power characteristics are matched to standard 4–20 mA transmitter specifications. Existing field cables, junction boxes, and transmitter configurations require no modification.
• Support for Long-Lifecycle Plant Operations: TELEPERM M installations in power and chemical plants routinely operate for 20–30 year lifecycles. The 6DP1531-8AA provides a verified OEM-specification component that extends the operational life of these systems without forcing premature DCS migration projects.
• Deterministic Real-Time Response: By maintaining the TELEPERM M bus cycle integrity, the module ensures that time-critical control loops — such as turbine speed control or reactor pressure regulation — receive analog data at the correct scan rate, preserving the closed-loop response characteristics validated during original commissioning.
• Simplified Regulatory Compliance: For facilities operating under IEC 61511 (functional safety) or industry-specific process safety standards, using OEM-specification replacement modules preserves the as-validated hardware configuration, avoiding the re-validation burden that would accompany substitution with non-OEM components.

Quality Assurance & Global Logistics

Every Siemens 6DP1531-8AA unit dispatched from our Xiamen, China facility is sourced through verified industrial automation supply channels with documented provenance. New OEM units are supplied in original Siemens packaging with factory labels, date codes, and serial numbers intact — providing the traceability that regulated industries and quality management systems require.

Prior to dispatch, each unit undergoes a pre-shipment inspection protocol: visual examination for physical damage, label verification against the purchase order part number, and — for refurbished or tested-used units — functional bench testing covering power-on verification, analog signal path continuity, and isolation resistance measurement. Inspection records are retained and available upon request.

Export documentation is prepared as standard for all international shipments: commercial invoice, packing list, certificate of origin, and — where required — export control classification documentation. Shipments from Xiamen reach major industrial hubs in Southeast Asia within 3–5 business days, Europe within 5–8 business days, and North America within 5–7 business days via DHL Express, FedEx International Priority, or UPS Worldwide Express, depending on destination and urgency.

For facilities running planned maintenance shutdowns, we offer advance stocking arrangements: confirm your shutdown schedule and required spare parts list, and we will reserve allocated stock and stage shipments to arrive within your pre-shutdown window. Emergency replacement orders placed before 14:00 CST are processed for same-day dispatch where stock is confirmed available.

All new OEM units carry a 12-month warranty from the date of shipment. Warranty coverage addresses manufacturing defects and functional failures under normal operating conditions as defined by the TELEPERM M system specification. Refurbished and tested-used units carry a 90-day functional warranty. Warranty claims are processed with a target response time of 24 hours and replacement dispatch within 3 business days of confirmed fault verification.
