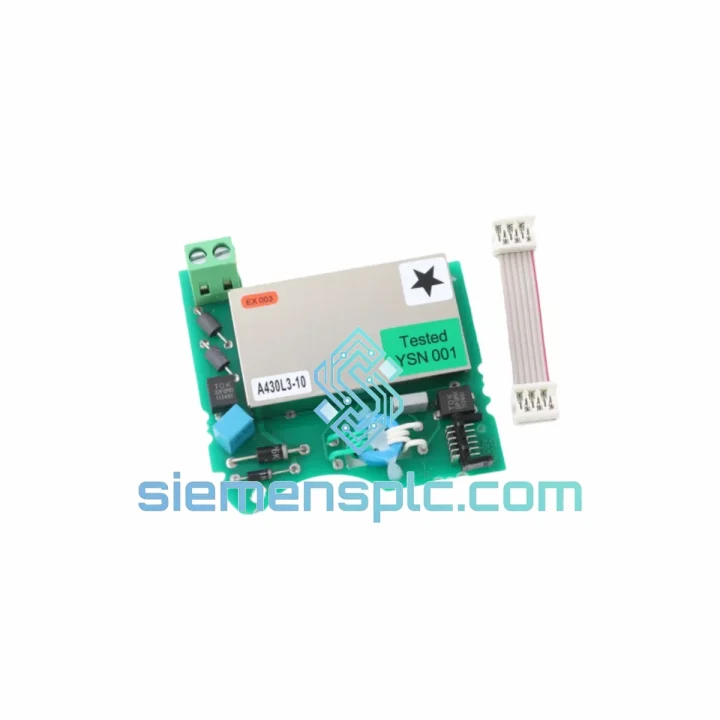

Siemens 6DR4004-8J Positioner Interface Module – SIPART PS2

Siemens 6DR4004-8J: HART Signal Interface Architecture Within the SIPART PS2 Control Loop

The Siemens 6DR4004-8J is the dedicated HART communication interface module for the SIPART PS2 electropneumatic smart positioner platform. Within a closed-loop valve control architecture, this module occupies the signal conditioning and protocol translation layer between the DCS analog output card and the positioner’s internal microprocessor board. Its function is not decorative — it is the electrical and logical gateway through which every setpoint command, position feedback value, and diagnostic telegram must pass.

SIPART PS2 positioners are deployed across oil & gas upstream and midstream facilities, chemical reactor trains, power generation steam circuits, and pharmaceutical CIP/SIP valve networks. In each of these environments, the integrity of the 4–20 mA signal path and the reliability of the HART overlay determine whether the control loop meets its SIL rating and process availability targets. The 6DR4004-8J is the hardware component that sustains both.

Unlike generic HART modems or third-party interface adapters, the 6DR4004-8J is factory-matched to the SIPART PS2 electronics stack. Its impedance characteristics, input protection topology, and firmware handshake timing are co-designed with the positioner’s main board. This co-design eliminates the signal integrity compromises that arise when mixing interface hardware from different manufacturers — a common source of intermittent HART communication failures in field installations.

The module accepts the 4–20 mA control signal from the DCS output card and presents a calibrated input impedance that satisfies HART FSK modulation requirements per the HART Communication Foundation specification. The analog setpoint is decoded by the positioner’s A/D converter at a resolution sufficient to drive the pneumatic output stage with sub-0.1% positioning repeatability under steady-state conditions. Simultaneously, the HART FSK signal (1200 Hz / 2200 Hz) is extracted, demodulated, and routed to the positioner’s UART interface for command processing.

Position feedback from the internal conductive plastic potentiometer — or from an external position sensor in split-range configurations — is conditioned by the interface module’s analog output stage and returned to the DCS as a 4–20 mA feedback signal. This bidirectional signal architecture allows the DCS to close the position loop at the controller level while the positioner simultaneously executes its own internal PID algorithm, providing a dual-layer control structure that improves disturbance rejection in high-cycling valve applications.

For procurement inquiries, real-time stock confirmation, and technical pre-sales consultation, contact the siemensplc.com team directly.

📧 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

EMC Shielding and Signal Isolation Architecture
The 6DR4004-8J incorporates galvanic isolation between the field-side 4–20 mA loop and the positioner’s internal logic circuitry. This isolation barrier — implemented via transformer-coupled signal conditioning — prevents ground loop currents from corrupting the analog setpoint signal. In installations where the DCS cabinet and the field junction box share different ground potentials (a common condition in large petrochemical plants with distributed earthing systems), this isolation eliminates the DC offset errors that would otherwise introduce a systematic positioning bias of several percent of span.

HART FSK Demodulation and Noise Rejection
The HART FSK demodulator within the module uses a bandpass filter centered on the 1200 Hz / 2200 Hz carrier frequencies with a stopband attenuation exceeding 40 dB at 50/60 Hz power line frequencies. This filter characteristic is critical in motor control center (MCC) environments where variable frequency drives (VFDs) generate broadband conducted emissions that can corrupt HART communication on unshielded cable runs. The module’s demodulator maintains a bit error rate below 10⁻⁶ on cable runs up to 1500 m with 0.5 mm² shielded twisted-pair wiring.

Redundancy Arbitration Logic
In SIPART PS2 installations configured for redundant DCS output (two DCS channels driving one positioner via a HART multiplexer), the 6DR4004-8J’s input stage includes a passive diode-OR circuit that selects the higher of the two input currents. This hardware-level arbitration ensures bumpless transfer when the primary DCS channel fails, without requiring any software intervention from the safety system. The switchover time is determined by the RC time constant of the input filter — typically under 20 ms — which is within the dead-time tolerance of most PID tuning configurations for modulating valve applications.

Thermal Derating and Long-Term Drift
The analog components on the 6DR4004-8J are selected for a temperature coefficient of resistance (TCR) below 50 ppm/°C. Over the full operating range of –40 °C to +85 °C, the cumulative gain drift of the setpoint input channel remains below ±0.2% of span. This specification is relevant for outdoor installations in arctic or desert climates where diurnal temperature swings of 60 °C or more are routine. The low TCR specification eliminates the need for periodic field recalibration of the interface module itself, reducing maintenance burden over the positioner’s service life.

System Integration Benefits

• Zero-Compromise HART Compatibility: Factory-matched impedance and timing parameters ensure full HART 5/7 command set availability — including Device Description (DD) files — without requiring any loop impedance adjustment at the DCS marshalling cabinet.
• Partial Stroke Test (PST) Support: The module’s signal path supports PST execution via HART command 245 (Siemens proprietary) or via AMS Device Manager / Siemens PDM, enabling SIL 2/3 proof-test intervals to be extended without full valve stroke, reducing process interruption.
• Deterministic Response Time: The module introduces less than 5 ms of signal latency from DCS output change to positioner microprocessor input, preserving the control loop’s phase margin and preventing instability in fast-cycling applications such as surge control on centrifugal compressors.
• Diagnostic Transparency: HART variables PV (position), SV (setpoint deviation), TV (actuating pressure), and QV (temperature) are all accessible via the interface module without interrupting the 4–20 mA control signal, enabling continuous online diagnostics.
• Intrinsic Safety Compliance: The ATEX Ex ia certification of the 6DR4004-8J allows installation in Zone 1 and Zone 2 hazardous areas without additional Zener barriers or galvanic isolators in the signal loop, simplifying the loop design and reducing panel space requirements.
• Modular Field Replacement: The plug-in form factor allows the interface module to be replaced on-site by a qualified instrumentation technician in under 15 minutes, without removing the positioner from the valve or breaking the pneumatic connections. This minimizes mean time to repair (MTTR) in critical service applications.
• Asset Management Integration: The module’s HART implementation is fully compatible with Emerson AMS Device Manager, ABB Asset Vision, and Yokogawa PRM, in addition to Siemens PDM. This cross-vendor compatibility is essential in brownfield plants where the DCS and asset management system are from different manufacturers.
• Firmware Upgrade Path: The SIPART PS2 platform supports firmware updates via HART, and the 6DR4004-8J’s interface layer is transparent to the firmware update protocol. This allows positioner firmware to be updated in the field without module replacement, protecting the capital investment over the positioner’s 15–20 year service life.

Quality Assurance & Global Logistics

Every Siemens 6DR4004-8J unit supplied by siemensplc.com is sourced through verified channels with full traceability to Siemens AG manufacturing records. Original Siemens part markings, date codes, and factory labels are preserved intact. No remarking, repackaging, or component-level modification is performed. Each unit is inspected against the Siemens product datasheet dimensional and marking specifications before acceptance into inventory.

Pre-shipment functional verification includes continuity testing of the signal input terminals, visual inspection of the PCB for solder joint integrity and component seating, and confirmation of the ATEX certification label against the Siemens certification database. Units that do not pass inspection are quarantined and not offered for sale.

Shipping is executed from our Xiamen, China warehouse. Xiamen is a designated free trade zone port with direct air freight connections to major industrial hubs including Frankfurt, Houston, Singapore, Dubai, and Rotterdam. Standard air freight transit times are 3–5 business days to Europe and North America, 2–3 business days to Southeast Asia and the Middle East. DHL Express, FedEx International Priority, and UPS Worldwide Express are the primary carriers. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country customs requirements. HS code 8537.10 applies to this product category for most jurisdictions.

A 12-month warranty covers manufacturing defects from the date of shipment. Warranty claims are processed within 5 business days of receipt of the returned unit. Replacement units are shipped from stock where available, minimizing downtime for the end user.
