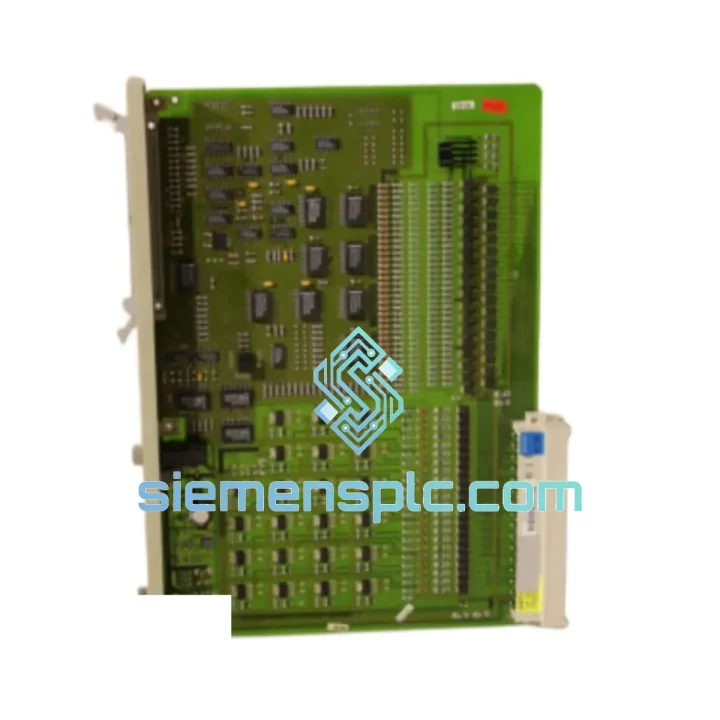

Siemens 6DS1719-8RR DCS Binary Extension Module

Siemens 6DS1719-8RR TELEPERM M Binary Extension Module — Stop the Clock on Your Downtime

Every minute your line is down, you’re bleeding money. A failed binary extension module in a TELEPERM M rack doesn’t just kill one loop — it can cascade into a full DCS blackout, leaving operators flying blind and safety interlocks unresponsive. The Siemens 6DS1719-8RR is the exact card you need to get back online. We stock it. We ship it today. No waiting on OEM lead times that stretch into weeks.

This module handles discrete signal expansion within the TELEPERM M distributed control system — the backbone of countless power plants, refineries, and chemical facilities that have been running the same proven architecture for 20+ years. When it fails, you don’t have the luxury of redesigning your control system. You need the same card, verified, tested, and on a plane to your site within 24 hours.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience. Before you swap the card, run through this checklist — skipping steps here is how you turn a 2-hour fix into a 6-hour nightmare.

Common failure signatures for the 6DS1719-8RR:

• Binary channel group goes dark — no status feedback from field devices on a specific I/O block while adjacent channels remain active. Classic sign of a failed output driver IC on the extension card.
• Intermittent binary signal dropout under high ambient temperature (>45 °C cabinet). The onboard optocoupler degrades over time; thermal cycling accelerates this.
• TELEPERM M system log shows “BIN EXT FAULT” or equivalent binary bus communication error pointing to the extension module address.
• Backplane bus error after a power surge or lightning event — the 6DS1719-8RR’s bus interface is vulnerable to transient overvoltage if surge protection on the cabinet is inadequate.

Step-by-step hot-swap procedure (TELEPERM M binary extension):

1. Document current configuration. Before pulling the card, print or photograph the DCS configuration tool showing the module’s assigned address and channel mapping. TELEPERM M uses fixed slot addressing — the replacement card must go into the exact same physical slot.
2. Check for slot-dependent addressing. The 6DS1719-8RR does not use DIP switches for address assignment in most rack configurations — the slot position defines the address. Confirm this against your system’s hardware configuration file before assuming the card is self-addressing.
3. Power down the subrack if possible. If a hot-swap is unavoidable, isolate the field wiring on the affected channels first. Pulling a live binary card with active 24 VDC field signals can cause transient faults on the backplane bus.
4. Inspect the backplane connector. Bent pins on the subrack connector are a common cause of “new card, same fault” situations. Use a magnifier and straighten any deformed pins before seating the replacement.
5. Seat the card firmly and evenly. TELEPERM M card guides are tight. Apply even pressure across the front panel — rocking the card in at an angle can damage the edge connector.
6. Verify firmware revision compatibility. If your TELEPERM M system is running an older firmware baseline, confirm the replacement card’s hardware revision is compatible. Mismatched revisions can cause the system to reject the module or produce erratic I/O behavior.
7. Force a channel scan after insertion. From the TELEPERM M engineering station, trigger a hardware scan or restart the affected I/O group to force the system to re-enumerate the extension module.
8. Test all channels under load. Don’t just check the first channel. Walk through every binary point on the extension module with a field device or test plug before signing off.

Reliability in Harsh Conditions

The TELEPERM M platform was engineered for environments where consumer-grade electronics last weeks, not years. The 6DS1719-8RR carries that same industrial DNA.

Vibration resistance: The card’s PCB layout and component mounting are designed to withstand continuous mechanical vibration typical of turbine halls and compressor stations. Conformal coating on the board protects solder joints from micro-cracking under sustained vibration loads.

Thermal performance: Rated for continuous operation up to 60 °C ambient. In practice, TELEPERM M cabinets in tropical or desert installations regularly see internal temperatures in this range. The 6DS1719-8RR’s thermal design accounts for this — passive convection cooling is sufficient under normal rack airflow conditions.

Humidity and condensation: The conformal coating provides a barrier against moisture ingress, a critical feature for coastal petrochemical sites and offshore platforms where humidity regularly exceeds 80% RH. Units supplied from our warehouse are inspected for coating integrity before dispatch.

EMI immunity: Industrial environments are electrically noisy. Variable frequency drives, large motor starters, and high-current bus bars generate significant electromagnetic interference. The 6DS1719-8RR’s optocoupler-isolated binary inputs provide galvanic separation between field wiring and the backplane bus, blocking common-mode noise from corrupting digital signals.

Long-term component stability: Siemens selected industrial-grade components rated for 100,000+ hours MTBF for the TELEPERM M series. Units that have been properly stored (dry, ESD-safe, temperature-controlled) retain full functionality decades after manufacture — which is why surplus-new stock from reputable suppliers remains a viable option for legacy system maintenance.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-efficient export hubs in Asia, with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways.

Standard export process for urgent orders:

• Order confirmed before 14:00 CST: Same-day dispatch. The module is packed, ESD-bagged, bubble-wrapped, and handed to the courier the same afternoon.
• DHL Express / FedEx IP transit times: Europe 2–3 business days. Middle East 2–3 business days. Southeast Asia 1–2 business days. North America 3–4 business days. Australia 3–4 business days.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. For customers requiring FORM E (ASEAN) or EUR.1 certificates, advise at time of order.
• Customs HS code: 8537.10 (boards, panels, consoles for electric control) — pre-declared on all shipments to minimize customs clearance delays.
• Full shipment tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your procurement contact.
• Insurance: All shipments are fully insured against loss or transit damage. Claims handled directly — no bureaucratic delays.

If your plant is facing an active shutdown and needs the fastest possible delivery, contact us via WhatsApp for real-time coordination. We have arranged emergency courier pickups outside standard business hours for critical plant situations.
