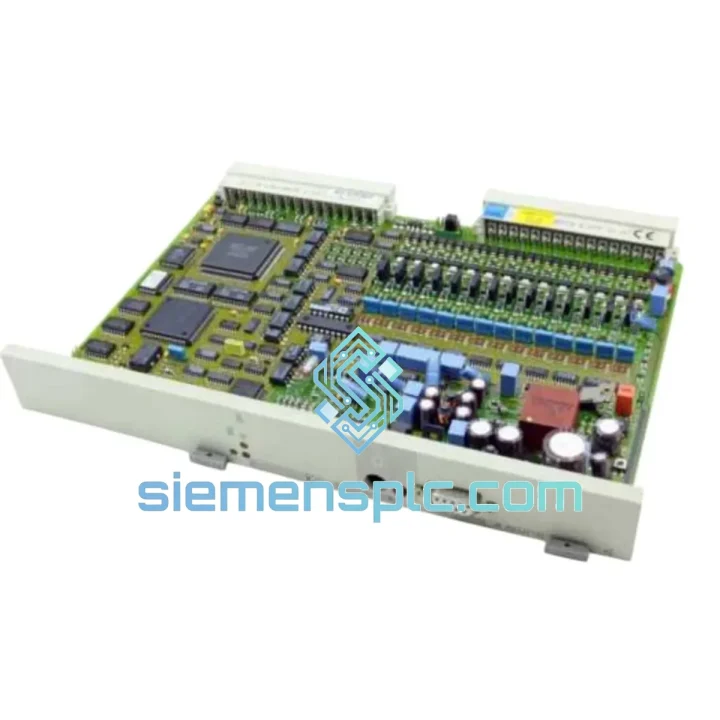

Siemens 6DS1722-8RR Analog I/O Module – TELEPERM M

Siemens 6DS1722-8RR — Galvanically Isolated Analog Signal Conditioning at the Core of TELEPERM M Control Loops

The 6DS1722-8RR occupies a structurally critical position within the TELEPERM M distributed control architecture. As a multi-channel analog module, it serves as the primary interface between field instrumentation — transmitters, positioners, and transducers — and the DCS backplane bus. Its function is not merely signal routing; it performs active signal conditioning, channel-level galvanic isolation, and resolution-accurate digitization, all within the deterministic timing constraints imposed by the TELEPERM M cyclic scan framework.

In a typical process control loop — for example, a cascade pressure-flow control scheme in a hydrocarbon fractionation column — the 6DS1722-8RR receives a 4–20 mA process variable signal from a differential pressure transmitter, conditions it through its internal isolation barrier, converts it at 12-bit resolution, and presents the digital value to the CPU module via the subrack backplane within a defined scan window. The loop controller then computes the output, which is routed back through the same module’s analog output channels to a current-to-pneumatic converter driving the control valve. This closed-loop transaction occurs with sub-100 ms cycle latency under normal TELEPERM M operating conditions.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6DS1722-8RR’s internal architecture reflects the design philosophy of the TELEPERM M era: deterministic signal handling with hardware-enforced isolation, rather than reliance on software-layer error correction.

Galvanic Isolation Architecture: Each analog channel is isolated via a DC/DC converter and optocoupler pair embedded on the module PCB. This dual-barrier approach — one barrier for the signal path, one for the power rail — ensures that ground potential differences of up to 500 V AC between field instruments and the DCS rack do not propagate into the backplane bus. In petrochemical installations where field junction boxes may be located hundreds of meters from the control room, this isolation architecture is the primary defense against common-mode noise injection and ground loop currents that would otherwise corrupt 12-bit resolution data.

EMC Design: The module’s PCB layout employs a split ground plane strategy, separating the analog signal ground from the digital logic ground at a single star point. Decoupling capacitors are placed at each IC power pin, and the backplane connector pins are filtered with ferrite beads to suppress high-frequency switching transients from adjacent digital modules. This design allows the 6DS1722-8RR to maintain signal integrity in subrack environments where variable-frequency drives and high-current switching power supplies generate broadband electromagnetic interference in the 150 kHz–30 MHz range.

12-Bit Successive Approximation ADC: The analog-to-digital conversion is performed by a successive approximation register (SAR) ADC. At 12-bit resolution, the module resolves a 4–20 mA span into 4096 discrete counts, yielding a theoretical resolution of approximately 3.9 µA per count. For a 0–100 bar pressure transmitter, this translates to a process variable resolution of approximately 0.024 bar — sufficient for most regulatory control applications without requiring external signal amplification.

Backplane Bus Arbitration: The module interfaces with the TELEPERM M backplane via a time-multiplexed parallel bus. The module’s onboard bus interface logic holds converted data in a dual-port latch, allowing the CPU module to read channel values asynchronously without interrupting the ongoing A/D conversion cycle. This architecture prevents scan jitter from propagating into the control loop’s process variable reading, maintaining the deterministic timing that TELEPERM M’s cyclic control execution depends upon.

System Integration Benefits

• Zero-Modification Drop-In Replacement: The 6DS1722-8RR maintains identical form factor, backplane pin assignment, and signal range configuration as the original OEM module. Replacement requires no modification to existing loop drawings, I/O lists, or DCS configuration databases — a critical requirement in regulated industries where any engineering change triggers a formal management-of-change (MOC) process.
• Deterministic Scan Cycle Preservation: Because the module’s bus interface logic presents pre-latched data to the CPU, the DCS scan cycle time is not extended by A/D conversion latency. Control loops maintain their configured execution rate regardless of the number of active analog channels, supporting tight cascade and ratio control schemes.
• Diagnostic Transparency via Hardware Flags: The module asserts hardware status flags on the backplane bus for conditions including open-circuit input (wire-break detection on 4–20 mA channels), over-range input, and internal power supply fault. These flags are readable by the TELEPERM M CPU without requiring additional software polling routines, enabling the DCS to generate process alarms within one scan cycle of a fault condition.
• Multi-Signal-Type Compatibility: Configurable per channel for either current (4–20 mA) or voltage (0–10 V) input modes, the module accommodates mixed field instrument populations within a single subrack slot. This reduces the number of distinct spare module types required in a plant’s maintenance inventory.
• Reduced Commissioning Risk: The module’s hardware configuration (signal range, active/passive input mode) is set via onboard jumpers or DIP switches rather than software parameters. This means configuration state is physically visible and verifiable during commissioning without requiring access to the DCS engineering workstation.
• Long-Term Spare Parts Availability: Siemensplc.com maintains stock of TELEPERM M modules sourced from verified industrial surplus and authorized distribution channels, providing a reliable supply path for plants committed to operating legacy DCS infrastructure beyond the OEM’s standard support lifecycle.
• ESD-Protected Handling and Storage: All modules are stored and shipped in anti-static ESD bags with moisture barrier packaging. This preserves the integrity of CMOS-based analog front-end components that are susceptible to electrostatic discharge damage during handling — a common failure mode for improperly stored surplus modules.
• 12-Month Warranty Coverage: Each unit dispatched from our Xiamen facility carries a 12-month replacement warranty against manufacturing defects and DOA conditions, with technical support provided by engineers experienced in TELEPERM M system architecture.

Quality Assurance & Global Logistics

Every 6DS1722-8RR unit offered through siemensplc.com is sourced as genuine Siemens OEM hardware. Our procurement process excludes counterfeit and unauthorized reproduction parts through a multi-stage verification protocol: physical label inspection against Siemens part numbering conventions, PCB silkscreen and component date code verification, and functional continuity testing prior to dispatch.

Units are dispatched from our warehouse in Xiamen, China — a logistics hub with direct access to Xiamen Gaoqi International Airport and the Port of Xiamen, enabling both air freight and sea freight consolidation to destinations across Southeast Asia, the Middle East, Europe, and the Americas. Standard air freight transit times are 3–7 business days to most international destinations. DHL Express, FedEx International Priority, and UCP are available as carrier options depending on destination and urgency.

Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements. HS code classification and customs value declaration are handled by our logistics team. For projects requiring CITES documentation, phytosanitary certificates, or destination-specific import permits, please advise at the time of order placement.
