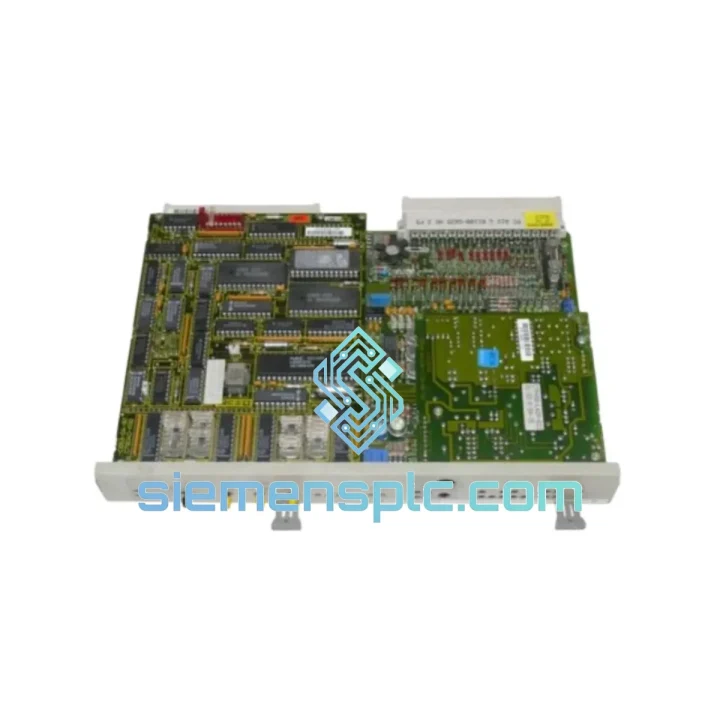

Siemens 6DS1723-8BA DCS Analog Module

6DS1723-8BA: Cut Downtime Now — Replacement Ships Within 24 Hours

Every hour your TELEPERM M system sits offline costs real money. A failed analog I/O card doesn’t wait for procurement cycles, and neither do we. The Siemens 6DS1723-8BA is a multi-channel analog input/output module built for the TELEPERM M distributed control system — a platform still running critical loops in petrochemical, power, and heavy-process plants worldwide. We stock it. We test it. We ship it fast from Xiamen, China via DHL or FedEx Express, reaching most destinations in 2–4 business days.

If your AS230 or AS235 automation station is throwing analog faults, your process engineer is on the phone, and your maintenance window is closing — this is the page you need. Stop reading datasheets and start the replacement clock.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Replacing a 6DS1723-8BA in a live TELEPERM M rack is not a plug-and-play operation if you haven’t done it before. Here’s what actually matters on the floor:

1. Slot Auto-Addressing — Don’t Overthink It
The TELEPERM M backplane assigns the module’s logical address based on its physical slot position. There are no rotary switches or DIP banks on the 6DS1723-8BA for base address configuration. Slot 1 = Address 1, and so on. If you’re replacing a failed card in Slot 4, the replacement goes back into Slot 4 — the AS230/AS235 will recognize it on the next scan cycle without re-parameterization, provided the firmware revision is compatible.

2. Channel Jumper Configuration — Check Before You Seat
The 6DS1723-8BA uses internal jumpers (J1–J8 depending on revision) to set each channel as current (4–20 mA) or voltage (0–10 V). Before pulling the failed card, photograph or document the jumper positions. The replacement card ships in a default configuration that may not match your process wiring. Inserting a voltage-configured channel into a current loop will not damage the module immediately, but it will produce erroneous readings and may trigger HART communication faults downstream.

3. Firmware Revision Matching
TELEPERM M engineering software (ES) stores the expected firmware version for each slot in the project database. If the replacement card carries a different firmware stamp than the original, the AS may log a Module Mismatch fault — typically a red LED on the front panel and a diagnostic entry in the ES fault log. In most cases the system will still run in degraded mode, but you’ll need to update the ES project file to acknowledge the new revision. Coordinate with your DCS engineer before swapping if the plant is in a critical production phase.

4. Common Fault Indicators on AS230/AS235

• SF LED solid red: Module not recognized — check slot seating, inspect backplane connector pins for corrosion or mechanical damage.
• BF LED flashing: P-bus communication error — reseat the card, verify rack bus termination resistors at end-of-rack position.
• Analog channel reading 0 or pegged at full scale: Jumper misconfiguration or open field wiring — verify loop continuity before condemning the module.
• Intermittent signal drift over time: Electrolytic capacitor aging — a documented failure mode on TELEPERM M analog cards after 15+ years of continuous service. Replacement is the correct fix.

5. Hot-Swap Protocol
TELEPERM M racks are not designed for true hot-swap. Always coordinate with the control room operator before pulling a card. Place the affected loop in manual mode at the DCS faceplate, confirm the field device is in a safe state, then proceed with the swap. Restore to auto only after verifying the new card’s readings match expected process values within tolerance.

Reliability in Harsh Conditions

The 6DS1723-8BA was engineered for continuous duty in environments that would destroy consumer-grade electronics. Siemens designed the TELEPERM M series for chemical plants and power stations — places where ambient temperatures swing hard, humidity condenses on cold mornings, and vibration from rotating machinery is a constant background condition.

The module’s conformal-coated PCB resists moisture ingress and corrosive atmospheres including H₂S and SO₂ traces common in refinery environments. The rack-mount form factor with positive backplane engagement eliminates the connector micro-motion failures that plague DIN-rail mounted alternatives in high-vibration installations. Thermal design supports continuous operation at 60°C ambient without derating — relevant if your control cabinet sits adjacent to a heat exchanger or in an outdoor enclosure in a tropical climate.

Our stock is stored in a climate-controlled warehouse (18–25°C, 40–60% RH) with anti-static racking. Every unit undergoes a powered functional test before dispatch — analog channels verified against calibrated reference signals, bus communication confirmed active, front-panel LEDs checked. You receive a module proven to work, not one that has merely passed a visual inspection.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of the most connected export ports in Asia, with direct DHL and FedEx Express lanes to major industrial hubs worldwide.

Estimated Transit Times (DHL / FedEx Express):

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Kuwait, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK, France, Italy): 3–5 business days
• North America (USA, Canada, Mexico): 4–6 business days
• South America (Brazil, Chile, Argentina): 5–8 business days
• Africa (South Africa, Nigeria, Egypt): 5–7 business days

Every shipment includes:

• Commercial invoice with HS Code 8537.10 for smooth customs clearance
• Packing list and Certificate of Origin (COO) available on request
• Anti-static bag inside foam-lined export carton — no shortcuts
• DHL/FedEx tracking number sent within 2 hours of dispatch
• Functional test report available on request at no additional charge

Orders placed before 14:00 CST on business days qualify for same-day dispatch. If your situation is genuinely critical, reach us directly on WhatsApp — emergency weekend dispatches have been handled before and will be again.
