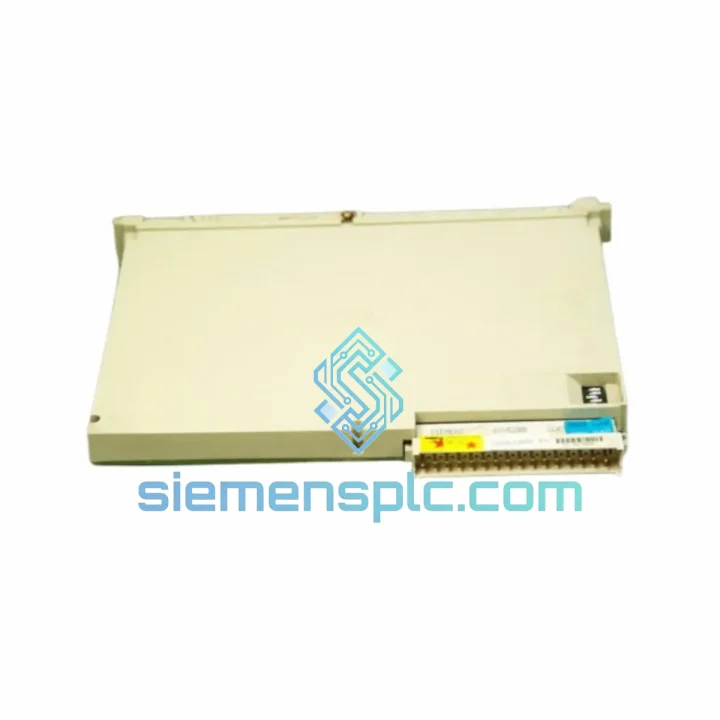

Siemens 6ES5470-4UB12 Analog Output Module – SIMATIC S5

Siemens 6ES5470-4UB12: 8-Channel Analog Output Module for SIMATIC S5 Process Control Loops

The Siemens 6ES5470-4UB12 is an 8-channel analog output module designed for integration into the SIMATIC S5 programmable controller platform. Within a closed-loop control architecture, this module occupies the final actuating element of the signal chain — converting digitally processed setpoints from the CPU into calibrated analog signals that drive field devices such as control valves, variable-speed drives, electropneumatic positioners, and current-to-pressure transducers. Its role is not peripheral; it is the boundary between the deterministic digital domain and the continuous physical process.

Each of the eight output channels operates independently, accepting a 12-bit data word (11-bit magnitude plus sign) from the S5 backplane bus and converting it to a proportional electrical output. The module supports both voltage and current output modes — ±10 V, 0–20 mA, and 4–20 mA — selectable per channel group via hardware configuration. This flexibility allows a single module to simultaneously serve multiple process loops with differing signal conventions, reducing rack slot consumption and wiring complexity in multi-loop installations.

The 6ES5470-4UB12 interfaces directly with the SIMATIC S5 central bus (C-Bus) through the standard S5 edge connector, drawing its operating power from the 24 V DC backplane supply. No external auxiliary power supply is required for the module itself, though field-side loop power for 4–20 mA current outputs must be provided externally in accordance with the connected field device specifications.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

D/A Conversion Architecture: The 6ES5470-4UB12 employs a multiplexed DAC topology. A single high-precision digital-to-analog converter services all eight channels sequentially, with sample-and-hold (S/H) circuits on each output retaining the last converted value between refresh cycles. This architecture reduces component count and thermal drift variance across channels compared to discrete per-channel DAC designs, while the S/H capacitor discharge rate is engineered to maintain output stability within ±0.1% of full scale between successive updates — a critical parameter in slow-scan process loops where output ripple would introduce unnecessary actuator wear.

Optocoupler Isolation Barrier: The data path from the S5 C-Bus to the DAC input stage crosses an optocoupler isolation barrier. This galvanic separation serves two functions: it prevents ground loop currents — common in large industrial installations where field-side and controller-side ground potentials differ by several volts — from corrupting the digital bus, and it limits the propagation of transient overvoltages originating from inductive field loads (valve actuators, motor starters) back into the CPU backplane. The isolation withstand voltage is rated to 500 V AC rms, consistent with IEC 61131-2 requirements for analog I/O modules in industrial environments.

EMC Design Considerations: The module’s PCB layout follows Siemens’ internal EMC design rules for SIMATIC S5 hardware, which include dedicated analog and digital ground planes separated by a split-plane boundary, ferrite bead filtering on the 24 V supply input, and shielded routing of the DAC output traces to the front connector. These measures suppress conducted emissions in the 150 kHz–30 MHz band and reduce susceptibility to radiated fields from adjacent variable-frequency drives — a common co-location scenario in process plant motor control centers.

Output Stage Protection: Each analog output channel incorporates short-circuit protection circuitry. In voltage output mode, a current-limiting resistor network prevents destructive current flow if the output terminal is inadvertently shorted to ground or to an adjacent signal. In current output mode, the compliance voltage headroom is managed by the output transistor stage, which maintains regulation up to the specified maximum loop resistance of 600 Ω before entering saturation — at which point the output current drops gracefully rather than causing a hard fault that would require module replacement.

System Integration Benefits

• Direct backplane compatibility with S5-115U, S5-135U, and S5-155U racks — the module slots into any standard S5 I/O slot without adapter hardware, mechanical modification, or firmware update to the CPU. Replacement installations in existing systems require only physical insertion and address assignment via the front-panel DIP switches.
• Simultaneous multi-signal-type operation — voltage and current output modes can be configured independently per channel group, allowing a single 6ES5470-4UB12 to serve both ±10 V setpoint inputs on servo drives and 4–20 mA inputs on pneumatic positioners within the same rack slot, eliminating the need for a second module.
• Deterministic output update latency — because the module is addressed synchronously via the S5 C-Bus during the CPU’s output phase, the maximum latency between a new setpoint value being written to the output image table and the corresponding analog signal appearing at the terminal is bounded by one CPU scan cycle plus the module’s internal conversion time (≤ 1 ms). This determinism is essential in cascade control loops where secondary loop response depends on primary loop output settling time.
• Diagnostic transparency via STEP 5 status words — the module reports hardware fault conditions (power supply undervoltage, DAC conversion error) back to the CPU via the S5 bus status mechanism, making fault states visible in the STEP 5 diagnostic buffer without requiring external test equipment or physical inspection of the module.
• Low thermal dissipation in high-density racks — at approximately 8.4 W total power dissipation (350 mA × 24 V), the module’s thermal contribution to the rack enclosure is predictable and within the thermal budget of standard S5 rack configurations, supporting high-density I/O installations without forced-air cooling upgrades.
• Compatibility with STEP 5 function blocks FB250/FB251 — the standard Siemens analog I/O function blocks handle scaling, limit monitoring, and wire-break detection for 4–20 mA channels, reducing custom programming effort and ensuring consistent behavior across multiple installations using the same software library.
• Supports live replacement in non-redundant systems — the module can be extracted and reinserted while the rack remains powered (with appropriate process safety precautions), as the S5 bus protocol detects module absence and sets the corresponding output image bytes to zero, preventing undefined actuator states during the swap interval.
• Long-term spare parts availability — the SIMATIC S5 platform, while discontinued from new production, remains operational in thousands of process plants globally. The 6ES5470-4UB12 is available as a verified spare from specialist suppliers, extending the operational life of S5-based control systems without requiring a full migration to S7 or S7-1500 architecture — a capital expenditure that many facilities defer for 10–15 years post-platform discontinuation.

Quality Assurance & Global Logistics

Every Siemens 6ES5470-4UB12 unit dispatched from our Xiamen, China facility is sourced from verified industrial surplus channels, authorized distributor overstock, or decommissioned plant inventories with documented provenance. Units are not refurbished, re-marked, or modified in any way. Physical inspection covers label authenticity, PCB revision markings, connector pin condition, and housing integrity against known-genuine reference specimens. Functional verification is performed on a calibrated S5 test rack, confirming correct analog output response across all eight channels at both voltage and current output modes before dispatch.

A 12-month warranty applies from the date of shipment. Units that exhibit functional failure under normal operating conditions within this period are replaced or credited without dispute. Batch traceability records are maintained for all inventory, and inspection documentation is available upon request for quality-critical procurement processes.

Logistics from Xiamen are handled via DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–5 business days to Europe, 4–6 days to North America, and 2–4 days to Southeast Asia. Full export documentation — commercial invoice, packing list, and certificate of origin — is provided with every shipment. HS Code 8537.10 applies to this product category; buyers are responsible for applicable import duties and taxes in their jurisdiction. Bulk orders and long-term supply agreements are accommodated with priority sourcing and reserved stock arrangements.
