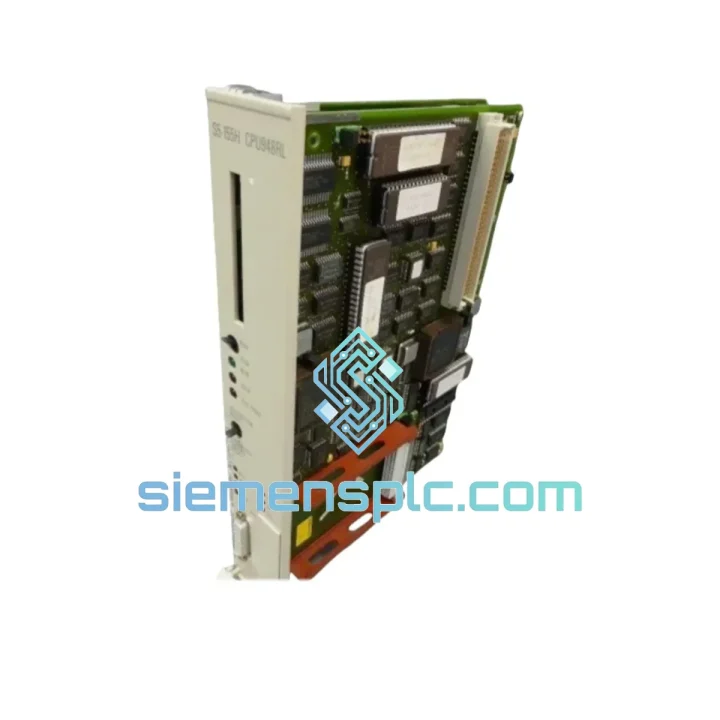

Siemens 6ES5948-3UR51 CPU 948 PLC Module

Siemens 6ES5948-3UR51 CPU 948 — Stop the Clock on Your Downtime

Every minute your S5 line sits idle, you’re bleeding money. The Siemens 6ES5948-3UR51 CPU 948 is one of the most critical — and hardest to source — central processing units in the SIMATIC S5 platform. When it fails, production stops. We keep verified stock in Xiamen and ship globally within 24 hours of order confirmation. No waiting weeks for a factory lead time. No gambling on grey-market counterfeits. You get a tested, traceable unit on your bench fast enough to matter.

This is not a catalog listing. This is a live inventory position. If you’re reading this page, the module is available. Contact us now before the next engineer does.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 6ES5948-3UR51 fails in predictable ways. Here’s what 10 years of field calls have taught us:

Common Fault Indicators:

• STOP LED solid red, RUN LED off: CPU has entered STOP mode due to a program cycle time violation or memory parity error. Before condemning the CPU, check the STEP 5 diagnostic buffer (DB 1) for OB 85/OB 87 entries — these often point to a failed I/O module triggering the CPU fault, not the CPU itself.
• BASP (bus error) LED flashing: Backplane bus fault. Reseat the CPU in its slot. If the error persists across slots, the CPU backplane interface is damaged — replacement is the only fix.
• No communication with PG/PC: Check the MPI/SINEC interface cable and adapter first. If the CPU is not recognized at all, the communication ASIC on the CPU board has likely failed.
• Intermittent STOP/RUN cycling: Classic symptom of a failing electrolytic capacitor on the CPU power rail. Common in units manufactured before 1998. Replacement is more cost-effective than board-level repair in most cases.
• Memory loss after power cycle: The onboard RAM backup battery (3.6 V lithium) is exhausted. Replace the battery before swapping the CPU — if the new CPU also loses memory, the issue is in the power supply, not the CPU.

Replacement Procedure — Key Steps:

• Step 1 — Backup first: Upload the current program from the running CPU to your PG/PC using STEP 5 v7.x before powering down. If the CPU is already dead, check if a memory module (6ES5374-1FH21 RAM or 6ES5375-1LA21 EPROM) holds the program — these survive CPU failure.
• Step 2 — Note the DIP switch settings: The 6ES5948-3UR51 has onboard DIP switches that configure the MPI address and startup behavior. Photograph or record the current switch positions before removal. Default MPI address is 0; if your system uses a non-default address, you must replicate it on the replacement unit.
• Step 3 — Firmware version matching: Check the firmware label on the existing CPU (printed on the module face or inside the front cover). The -3UR51 suffix indicates a specific hardware revision. Mixing firmware revisions in a multi-CPU configuration (S5-155U with multiple CPUs) can cause synchronization faults. Match the revision where possible.
• Step 4 — Cold restart sequence: After installing the replacement CPU, perform a CRST (cold restart) rather than a WRST (warm restart) to ensure all data blocks are initialized cleanly. Set the mode selector to STOP, then to RUN-P, and monitor the first scan cycle via the PG.
• Step 5 — Verify cycle time: After restart, check the OB 1 cycle time in the diagnostic buffer. A sudden increase in cycle time compared to the previous CPU may indicate a firmware mismatch or a background task consuming processor cycles.

Reliability in Harsh Conditions

The SIMATIC S5 platform was engineered for environments that would destroy consumer-grade electronics. The 6ES5948-3UR51 carries that legacy. The module is designed to operate continuously in ambient temperatures from 0 °C to 60 °C, with short-term excursions tolerated in well-ventilated cabinets. The conformal-coated PCB resists condensation and airborne contaminants — a critical feature in chemical plants, paper mills, and coastal installations where humidity regularly exceeds 90% RH.

Vibration resistance meets IEC 68-2-6 specifications, making the module suitable for installation adjacent to heavy rotating machinery including compressors, mills, and press lines. The backplane connector is a high-cycle-count design rated for repeated insertion — relevant when modules are swapped during maintenance windows without full rack removal.

Every unit we ship has been subjected to a power-on functional test under load, a visual inspection for physical damage and counterfeit indicators, and a firmware version verification. Units that fail any stage of this process are quarantined and not offered for sale. You receive a module that has been confirmed operational, not one that has merely passed a visual check.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This is not a drop-ship arrangement. Stock is physically on our shelves.

• Order cutoff: Orders confirmed and paid before 14:00 CST ship same business day.
• DHL Express Worldwide: Europe 2–3 business days, North America 3–4 business days, Southeast Asia 1–2 business days.
• FedEx International Priority: Available for time-critical shipments with guaranteed delivery windows.
• Export documentation: Commercial invoice, packing list, and certificate of origin (CO) provided as standard for all international shipments. HS Code 8537.10 applies.
• Customs clearance support: We provide accurate declared values and HS codes to minimize customs delays. For EU imports, EORI-compliant documentation is available on request.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.

If your line is down right now, call us. We will confirm stock availability, issue a proforma invoice, and have a unit moving toward you within hours of payment confirmation. That is the only metric that matters when production is stopped.
