Siemens 6ES7132-4BB30-0AB0 Digital Output Module – ET 200S

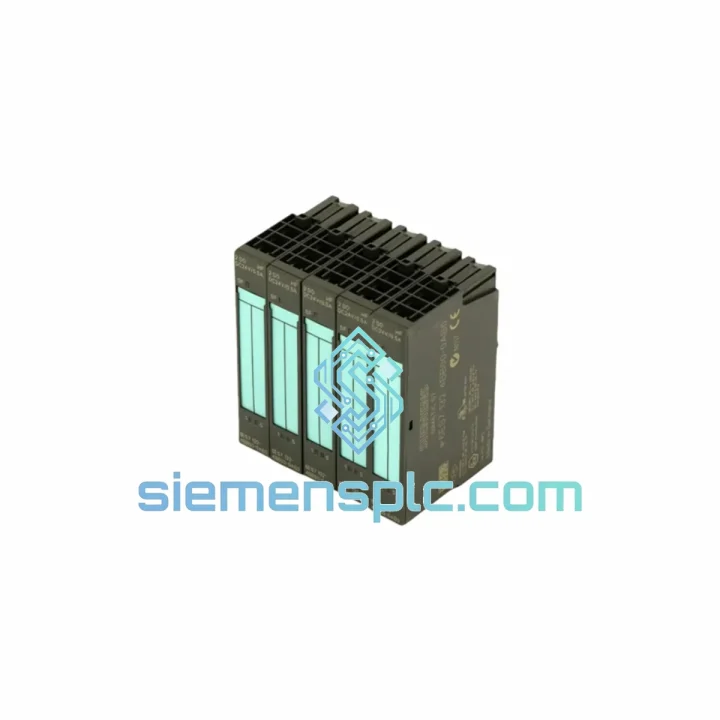

Siemens 6ES7132-4BB30-0AB0 — 2-Channel 24 VDC Digital Output Module for SIMATIC ET 200S Distributed I/O

The Siemens 6ES7132-4BB30-0AB0 is a 2-channel transistor digital output module engineered for the SIMATIC ET 200S modular distributed I/O platform. Operating at 24 VDC with a per-channel rated current of 0.5 A (aggregate module load: 1 A), it converts backplane bus commands from an upstream CPU into discrete switching signals for field actuators — solenoid valves, motor contactors, indicator lamps, and relay coils. Its 15 mm width profile allows high-density I/O assembly within compact control cabinets, a critical constraint in machine-building and skid-mounted process applications where DIN rail space is finite.

Within a SIMATIC ET 200S station, this module slots into a compatible terminal module (TM-E15S24-01 or TM-E15C24-01), which provides the mechanical locking, field wiring terminals, and backplane bus connection simultaneously. The separation of terminal module and electronics module is architecturally deliberate: field wiring remains undisturbed during module replacement, eliminating re-termination errors and reducing mean time to repair (MTTR) to under two minutes in trained-technician scenarios. This design principle is central to the ET 200S philosophy of maximizing plant availability in distributed automation architectures.

The 6ES7132-4BB30-0AB0 communicates with the ET 200S interface module (IM 151 series) via the internal ET 200S backplane bus — a synchronous, deterministic serial bus that transfers I/O data to the PROFIBUS DP or PROFINET IO network connecting the station to the host PLC (S7-300, S7-400, or S7-1500 via IM 151-3 PN). Cycle time contribution from this module is negligible relative to the network scan cycle, making it suitable for time-critical output tasks such as servo enable signals and safety-relay coil actuation where output latency must remain below 1 ms at the station level.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Output Stage Architecture — PNP Transistor Sourcing: Each output channel uses a high-side PNP transistor switch referenced to the 24 VDC L+ rail. When the backplane bus asserts a logical 1 on a channel, the transistor gate driver saturates the switch, connecting L+ to the output terminal with a voltage drop of less than 0.8 V under rated load. This sourcing topology is the standard for European industrial automation, where field devices (solenoid valves, relay coils) are wired with the common return on the M (0 V) rail. The transistor’s on-resistance is sufficiently low that thermal dissipation at 0.5 A remains within the module’s passive cooling budget — no forced airflow is required in standard horizontal mounting orientation.

Electronic Short-Circuit Protection and Auto-Recovery: The output stage incorporates a current-sensing comparator that monitors channel current in real time. When a short-circuit condition drives current above the protection threshold (typically 1.5 × rated current), the gate driver disables the transistor within microseconds, preventing thermal runaway in the output FET and protecting field wiring insulation. Unlike fuse-based protection, the electronic circuit resets automatically once the fault is cleared, eliminating the need for manual fuse replacement and reducing maintenance labor in remote I/O installations. The fault state is simultaneously reported to the ET 200S interface module as a diagnostic event, which propagates to the CPU’s diagnostic buffer and can trigger alarm handling in the user program.

Optocoupler Galvanic Isolation: The signal path between the ET 200S backplane bus and the output transistor gate driver passes through an optocoupler barrier. This galvanic isolation serves two functions: it prevents ground loops between the PLC backplane reference potential and the field 24 VDC supply (which may originate from a separate power supply unit with its own grounding), and it attenuates high-frequency conducted noise from inductive field loads (solenoid valve switching transients, contactor coil collapse) from coupling back into the backplane bus and corrupting I/O data. The isolation voltage rating ensures compliance with EN 61131-2 requirements for distributed I/O in industrial environments.

EMC Design — Conducted and Radiated Immunity: The module’s PCB layout follows Siemens’ internal EMC design rules for SIMATIC hardware: decoupling capacitors are placed at the L+ entry point to suppress high-frequency ripple from the 24 VDC supply bus; signal traces are routed with controlled impedance and minimal loop area to reduce susceptibility to radiated fields; and the module housing provides a degree of shielding continuity when installed in a grounded metal enclosure. Compliance with EN 61000-6-2 (immunity for industrial environments) covers 10 V/m radiated RF fields, 2 kV fast transient bursts (EFT/B), and 1 kV surge on supply lines — the standard threat profile for a machine-mounted distributed I/O station near variable-frequency drives and contactors.

Backplane Bus Timing and Output Latency: The ET 200S internal bus operates synchronously with the interface module’s PROFIBUS DP or PROFINET IO cycle. Output data written by the CPU in one network cycle is transferred to the output register of the 6ES7132-4BB30-0AB0 at the start of the next ET 200S internal bus cycle. The internal bus cycle time is typically 100–300 µs depending on station configuration (number of modules, module types). The transistor switching time from bus data update to physical output state change is under 100 µs, making the total output latency from CPU write to field signal assertion well under 1 ms in a standard PROFIBUS DP configuration at 1.5 Mbit/s with a 10 ms DP cycle.

System Integration Benefits

• 1. Zero-Rewiring Module Replacement: The terminal module / electronics module split means field wiring stays connected to the TM-E15S24-01 during module swap. Replacement time is under 2 minutes with no risk of terminal mis-wiring — a direct reduction in MTTR for maintenance teams operating under production pressure.
• 2. Deterministic Output Response: With transistor switching times below 100 µs and a fixed backplane bus arbitration scheme, output state changes are predictable within a defined time window. This determinism is required for coordinated multi-axis motion sequences and timed valve actuation in batch process control.
• 3. Integrated Channel-Level Diagnostics: Short-circuit and (optionally) wire-break faults are reported as structured diagnostic data to the CPU, accessible via STEP 7 or TIA Portal without additional diagnostic hardware. Fault localization to the channel level reduces troubleshooting time from hours to minutes in multi-module stations.
• 4. Scalable I/O Density: The 15 mm module width allows up to 63 I/O modules per ET 200S station (subject to power budget). A station with mixed DI/DO/AI/AO modules can be assembled in under 1 meter of DIN rail, concentrating field I/O at the machine without long cable runs back to a central panel.
• 5. Compatibility Across PLC Generations: The module operates identically whether the host CPU is an S7-300 connected via PROFIBUS DP or an S7-1500 connected via PROFINET IO through an IM 151-3 PN interface module. This cross-generation compatibility protects the field wiring investment when upgrading the control system CPU.
• 6. ATEX Zone 2 Certification: The module carries ATEX II 3 G Ex nA IIC T4 certification, permitting installation in Zone 2 hazardous areas (locations where explosive gas atmospheres are not likely to occur in normal operation but may occur in abnormal conditions). This eliminates the need for Zener barriers or galvanic isolators in many Zone 2 output circuits.
• 7. Consistent Power Budget Accounting: The module’s defined current consumption from the ET 200S power bus (≤ 10 mA logic current) and its field load current (max. 1 A from L+) are separately specified, allowing the system designer to accurately calculate the PM-E power module loading and avoid undersized power supply configurations.
• 8. TIA Portal Parameter Assignment: Module parameters (diagnostic enable/disable per channel, substitute value behavior on CPU STOP) are configured in TIA Portal’s hardware catalog without manual DIP switch setting. Parameter data is stored in the CPU project and automatically downloaded to the module on startup, ensuring consistent configuration after module replacement.
• 9. Substitute Value on CPU STOP: Configurable substitute output values (0 or hold last value) on CPU STOP or communication loss prevent uncontrolled actuator states during controller faults — a safety-relevant behavior for applications where a de-energized output must correspond to a safe plant state.
• 10. Long-Term Spare Parts Availability: The 6ES7132-4BB30-0AB0 has been a catalog item across multiple SIMATIC generations. Verified new-old-stock and factory-refurbished units remain available through specialist distributors, supporting 10–15 year plant lifecycle requirements without forced migration to newer platforms.
