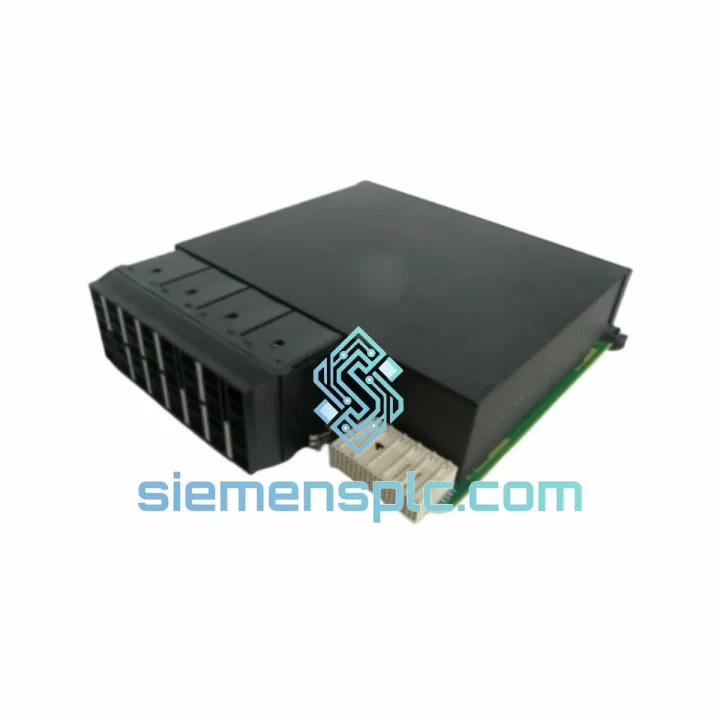

Siemens 6ES7132-4BD02-0AA0 Digital Output Module – ET 200S

Siemens 6ES7132-4BD02-0AA0 — 4-Channel 24 V DC Digital Output Module for ET 200S Distributed I/O

The 6ES7132-4BD02-0AA0 is a transistor-type digital output module engineered for the SIMATIC ET 200S distributed I/O platform. Rated at 4 × 24 V DC / 0.5 A per channel with PNP sourcing topology, it occupies a 15 mm slot on the ET 200S rail and communicates with the host controller exclusively through the ET 200S local backplane bus — a deterministic, time-sliced serial bus that delivers sub-millisecond process image update cycles. In a typical PROFIBUS DP or PROFINET IO station, the interface module (IM 151-x) arbitrates all I/O module data into a single cyclic data frame, meaning the 6ES7132-4BD02-0AA0 contributes exactly 1 byte of output data to that frame regardless of field wiring load. This architectural constraint keeps bus utilization predictable and simplifies PLC program cycle-time budgeting.

Each output channel drives inductive or resistive loads up to 0.5 A continuously, with an aggregate station current ceiling of 2 A across all four channels. The transistor output stage incorporates electronic short-circuit protection with automatic current limiting, preventing thermal runaway without requiring external fusing at the module level. Optocoupler isolation separates the 24 V DC field side from the backplane bus logic, providing a minimum 500 V AC isolation barrier that attenuates common-mode noise injected by long cable runs or adjacent power switching equipment.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7132-4BD02-0AA0 implements a two-stage output architecture. The first stage is a backplane bus receiver that latches the 1-byte output image written by the IM 151 interface module during each bus cycle. The second stage is a four-channel transistor driver array, where each channel is individually gated by the corresponding bit in the latched byte. This latch-and-drive topology decouples field switching events from bus timing, ensuring that output state changes are applied synchronously at the start of each bus cycle rather than asynchronously mid-frame — a property that eliminates output glitching during CPU scan-cycle jitter.

EMC Design: The module PCB routes all field-side traces on a physically separated copper layer from the bus-side logic, with a ground plane interposed between them. Transient suppression diodes (TVS) clamp inductive kickback from solenoid and relay loads to within the transistor’s avalanche rating, removing the need for external freewheeling diodes on most standard inductive loads below 0.5 A. The optocoupler barrier provides galvanic isolation that attenuates common-mode transients up to 1 kV/μs rise rate, consistent with IEC 61000-4-5 Level 3 surge immunity.

Short-Circuit and Overload Logic: Each transistor channel monitors its own collector current via a sense resistor. When current exceeds approximately 0.8 A (160 % of rated), the protection circuit disables the gate drive and sets a diagnostic bit in the module’s status register. The IM 151 reads this status byte in the same bus cycle and propagates a channel-level fault to the CPU’s diagnostic buffer (OB82 in STEP 7 / TIA Portal). The output auto-resets after the fault condition clears, with a configurable hold-off delay to prevent rapid cycling on persistent short circuits. This per-channel granularity means a single wiring fault does not suppress the remaining three channels.

ATEX Zone 2 Compliance: The module’s power dissipation envelope and surface temperature are validated to remain below T4 (135 °C) under worst-case simultaneous full-load conditions, satisfying the ignition temperature threshold for Group IIC gases. Installation in Zone 2 requires the ET 200S station to be housed in an Ex e (increased safety) enclosure per EN 60079-15, with the module itself classified as Ex nA (non-sparking) — meaning it does not produce arcs or sparks under normal operation or under defined fault conditions.

System Integration Benefits

• Deterministic output latency: The latch-and-drive architecture guarantees that field output transitions occur within one ET 200S bus cycle (typically 0.3 ms … 1.5 ms depending on station size), providing a bounded worst-case output delay that can be factored into motion and process control loop timing budgets.
• Per-channel diagnostic transparency: Short-circuit and wire-break faults are reported at individual channel resolution in the CPU diagnostic buffer, enabling maintenance personnel to isolate a faulty field device without halting the entire I/O station or requiring external test equipment.
• Zero-configuration hot-swap: The ET 200S architecture supports module replacement under power (with the station in STOP mode) without requiring re-parameterization, because module identity and configuration data reside in the IM 151 — not in the module itself. Replacement time in the field is typically under 90 seconds.
• Scalable station density: The 15 mm slot width allows up to 63 I/O modules per ET 200S station (subject to IM current budget), enabling high-density distributed I/O nodes without increasing cabinet footprint or PROFIBUS/PROFINET segment count.
• Unified engineering in TIA Portal: The module’s GSD/GSDML device description is natively integrated into TIA Portal V13 and above, providing drag-and-drop hardware configuration, automatic address assignment, and online diagnostic views without manual parameter entry.
• Power segment isolation: The PM-E power module architecture allows the 6ES7132-4BD02-0AA0 to be placed in an independently switched power segment, enabling selective de-energization of output groups for maintenance without affecting adjacent input or output modules in the same station.
• Consistent behavior across host platforms: The module operates identically whether the host controller is an S7-300, S7-400, S7-1500 (via IM 155-6 PN), or WinAC, because the ET 200S local bus protocol is host-agnostic — the IM 151 handles all protocol translation transparently.
• Reduced panel wiring complexity: The TM-E15S24-01 terminal module provides screw-type field terminals directly on the rail, eliminating intermediate terminal blocks for most applications and reducing wiring labor by an estimated 30–40 % compared to centralized I/O rack installations.
• Long-term spare parts continuity: The -4BD02- revision shares its terminal module footprint with the current successor (-4BD32-), meaning existing terminal module wiring is fully reusable during module upgrades — a significant factor in lifecycle cost planning for large installed bases.

Quality Assurance & Global Logistics

Every 6ES7132-4BD02-0AA0 unit dispatched from our Xiamen, China facility is a genuine Siemens-manufactured component sourced through verified supply channels. Prior to shipment, each module undergoes a structured acceptance procedure: visual inspection of housing, connector pins, and label integrity; power-on functional test verifying all four output channels switch correctly under a 24 V DC / 0.2 A resistive test load; and continuity verification of the optocoupler isolation barrier. Units that do not pass all checkpoints are quarantined and not offered for sale.

Packaging follows ESD-safe handling protocols: modules are placed in anti-static poly bags, cushioned with foam inserts, and boxed in double-wall corrugated cartons rated for international air freight. Batch records, including supplier documentation and test results, are retained for a minimum of three years and are available to customers on request for regulatory audit purposes.

From Xiamen, we ship globally via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. In-stock orders placed before 14:00 CST are dispatched the same business day. Transit times to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days, Middle East 4–7 business days. For large-volume orders or project-based procurement, sea freight consolidation from Xiamen Port is available with full export documentation (commercial invoice, packing list, certificate of origin, and HS code 8537.10 classification).

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed within 5 business days of receipt of the returned unit. Defective modules are replaced at no charge; shipping costs for warranty returns are covered by siemensplc.com for confirmed manufacturing defects.
