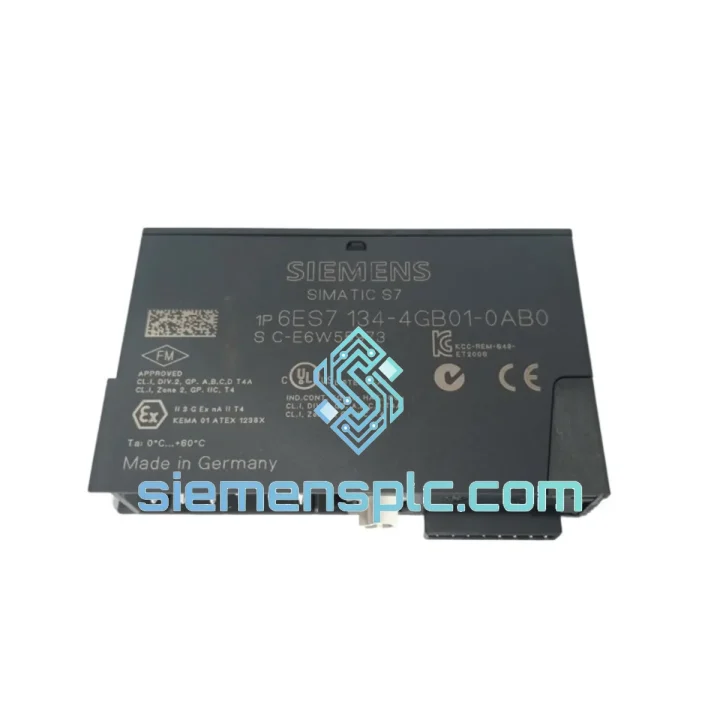

Siemens 6ES7134-4GB01-0AB0 Analog Input Module – ET 200S

Siemens 6ES7134-4GB01-0AB0 — Dual-Channel Analog Acquisition Node for Distributed Field I/O

The 6ES7134-4GB01-0AB0 is a two-channel analog input module designed for the SIMATIC ET 200S distributed I/O platform. Its primary function within a control loop is to convert field-level continuous signals — voltage or current from process transmitters — into 15-bit digital values that the upstream CPU can act on within deterministic scan cycles. Unlike centralized analog racks that aggregate signals over long cable runs, this module mounts directly at the field terminal module, reducing the analog signal path to centimeters and eliminating the attenuation and noise pickup inherent in multi-meter cable runs through industrial environments.

In a closed-loop control architecture, the module occupies the measurement layer: it receives raw transmitter output, applies hardware-level filtering, performs A/D conversion at approximately 6 ms per channel, and places the result on the ET 200S backplane bus for the interface module to forward to the CPU over PROFIBUS DP or PROFINET IO. The CPU then executes the PID or sequence logic and issues actuator commands — all within a deterministic cycle that the 6ES7134-4GB01-0AB0 supports by maintaining consistent conversion latency regardless of signal amplitude. This predictability is what process engineers depend on when tuning fast-response loops such as flow control or pressure regulation.

The module supports voltage inputs of ±10 V, 0–10 V, and 1–5 V, and current inputs of 4–20 mA, 0–20 mA, and ±20 mA. This range covers the full spectrum of standard process transmitter outputs without external signal conditioning, reducing BOM complexity and eliminating an additional failure point in the measurement chain.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7134-4GB01-0AB0 is built around a sigma-delta A/D converter architecture, which inherently oversamples the input signal and applies digital decimation filtering before producing the 15-bit output word. This approach provides two structural advantages over successive-approximation (SAR) ADC designs: first, the oversampling ratio suppresses high-frequency noise without requiring external anti-aliasing filters on each channel; second, the integration time can be matched to the power line frequency (50 Hz or 60 Hz) to achieve synchronous rejection of mains-coupled interference — a critical requirement in environments where variable-frequency drives and large motor contactors generate conducted emissions on the 24 V supply rail.

Channel isolation is implemented via optocoupler barriers between each analog front-end and the backplane data bus. This galvanic separation breaks ground loops that would otherwise form when multiple transmitters with different local earth potentials connect to the same module. In practice, this means a 4–20 mA loop powered from a field-mounted HART transmitter at a different cabinet potential can share the same module with a voltage output from a locally powered sensor without cross-channel interference or common-mode error accumulation.

The module’s EMC design follows IEC 61000-4 immunity levels: ESD Level 3 (8 kV contact), fast transient/burst Level 3 (2 kV on signal lines), surge Level 2 (1 kV line-to-line), and conducted RF Level 3 (10 V/m). These ratings are achieved through a combination of input RC filtering, transient voltage suppression (TVS) diodes on signal terminals, and a shielded PCB layout that routes analog signal traces away from digital clock lines. The result is a module that maintains ±0.1% accuracy in the presence of the electromagnetic environment typical of switchgear rooms and motor control centers.

Diagnostic logic operates independently of the conversion pipeline. A dedicated supervisory circuit continuously monitors each channel’s input impedance and signal level against configurable limit registers. When a wire-break condition occurs on a 4–20 mA loop (input drops below ~1 mA), the diagnostic register updates within one conversion cycle and the module asserts a fault bit on the backplane bus — triggering an interrupt to the CPU without waiting for the next scheduled I/O update. This sub-cycle fault detection is what enables predictive maintenance workflows: the CPU can log the fault timestamp, isolate the channel, and switch to a backup measurement path before the process variable deviation reaches the PID dead-band threshold.

System Integration Benefits

• Deterministic scan contribution: Fixed 6 ms conversion time per channel allows process engineers to calculate worst-case loop delay with precision, enabling PID tuning at cycle times as short as 20 ms without measurement jitter introducing derivative kick.
• Zero-footprint signal conditioning: Built-in support for 4–20 mA, ±10 V, and 1–5 V ranges eliminates external signal conditioners or isolators in the field cabinet, reducing panel width by 15–30 mm per measurement point and lowering MTTR by removing an additional component from the fault tree.
• Channel-level diagnostic transparency: Each channel reports wire-break, overflow, underflow, and supply fault independently to the CPU diagnostic buffer, enabling the SCADA layer to display per-channel health status without custom ladder logic — compliant with NAMUR NE 107 condition monitoring recommendations.
• Backplane bus efficiency: At 60 mA draw, the module consumes less than 3% of the ET 200S station’s 2 A bus budget, allowing up to 33 analog input modules per station — 66 measurement channels from a single PROFIBUS node address, reducing network topology complexity in large analog acquisition applications.
• Hot-swap capability via terminal module: The module separates from its terminal module (6ES7193-4CA40-0AA0) without disturbing field wiring. Replacement during live operation requires only module extraction and reinsertion; the CPU automatically re-parameterizes the new module via stored hardware configuration — reducing planned maintenance windows to under 2 minutes per channel pair.
• TIA Portal parameterization: All input ranges, filter times, and diagnostic enable flags are configured in TIA Portal’s hardware catalog without custom function blocks. Parameter sets are stored in the CPU project and automatically downloaded to replacement modules, eliminating manual re-configuration errors after field replacement.
• PROFINET IO integration with isochronous mode: When paired with an IM 151-3 PN interface module, the 6ES7134-4GB01-0AB0 participates in isochronous real-time (IRT) communication, synchronizing analog data transfer to the CPU cycle with jitter below 1 µs — a requirement for motion-coupled analog feedback in servo press and winding applications.
• Scalable redundancy architecture: Two modules can be configured in a 1oo2 (one-out-of-two) measurement architecture using standard S7 function blocks, with the CPU comparing channel values and flagging deviation beyond a configurable threshold — providing measurement redundancy for critical process variables without dedicated safety hardware.

Quality Assurance & Global Logistics

Every 6ES7134-4GB01-0AB0 unit dispatched from our Xiamen facility undergoes a structured four-stage verification process before packaging. Visual inspection confirms housing integrity, label authenticity (SIEMENS holographic markings, date codes, and part number embossing), connector pin geometry, and the absence of rework indicators such as solder bridges or re-marked housings. Functional testing powers the module in an ET 200S test rack, executes the TIA Portal hardware self-test routine, and verifies diagnostic LED behavior against the SIEMENS factory test specification. Signal accuracy verification applies calibrated reference signals — traceable to national metrology standards — to each channel and records measured values against the ±0.1% full-scale factory tolerance. Documentation cross-check records the serial number, firmware revision, and packaging seal condition.

All units are sourced from Siemens authorized distribution channels and verified OEM decommission streams. No anonymous broker stock is accepted. Available documentation includes the original Siemens datasheet, certificate of conformity, functional test report with measured values, packing list with serial numbers, commercial invoice, and country-of-origin declaration — supporting customs clearance and incoming inspection at the buyer’s facility.

Logistics from Xiamen, China covers all major global destinations. Standard export shipments move via DHL Express (3–5 business days to Europe and North America) or FedEx International Priority. Freight forwarder handoff is available for LCL/FCL consolidations. Export documentation includes commercial invoice, packing list, and HS code 8537.10 classification for customs clearance. Expedited sourcing and same-day dispatch are available for urgent MRO requirements — contact us with your delivery deadline and we will confirm feasibility within 4 hours.
