Siemens 6ES7134-6GF00-0AA1 Analog Input Module – ET 200SP

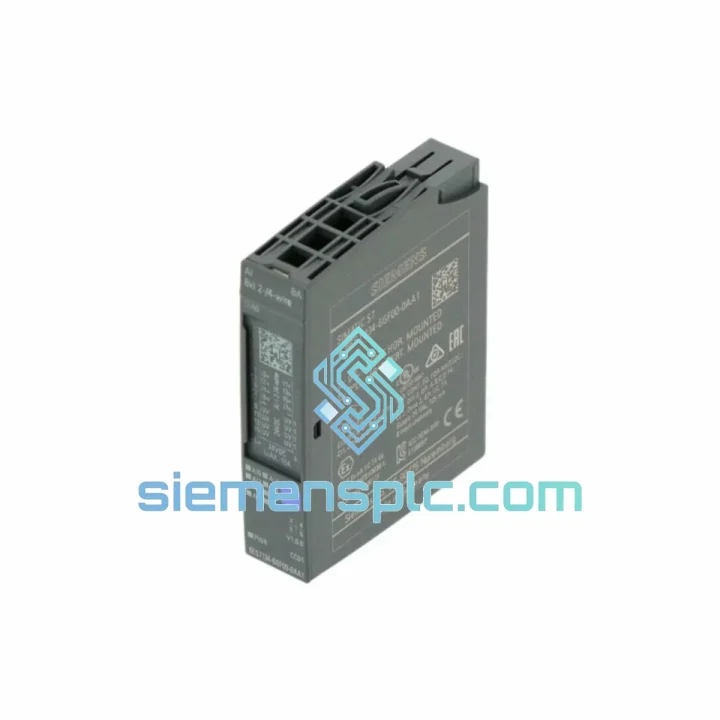

Siemens 6ES7134-6GF00-0AA1 — 8-Channel Analog Input Module for ET 200SP Distributed I/O Systems

The 6ES7134-6GF00-0AA1 is an 8-channel analog input module (AI) belonging to Siemens’ SIMATIC ET 200SP distributed I/O platform. Designed for deployment in decentralized control architectures, this module acquires process signals from field transmitters wired in 2-wire or 4-wire configurations and delivers digitized values to the host controller via the ET 200SP backplane bus at deterministic cycle intervals. Its BASIC-tier classification positions it as the cost-optimized choice for standard process measurement tasks where high-speed sampling or extended diagnostics are not primary requirements.

In a typical control loop, the 6ES7134-6GF00-0AA1 sits between the field instrument layer and the CPU’s process image. A 4–20 mA transmitter — measuring pressure, flow, level, or temperature — feeds its signal into one of the eight input channels. The module’s internal ADC samples the analog signal, applies the configured measurement range scaling, and writes the result as a 16-bit integer into the process input image (PII) of the connected interface module. The CPU reads this value within the same OB1 scan cycle, enabling closed-loop PID control with a deterministic response time bounded by the ET 200SP’s PROFINET IO update rate.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7134-6GF00-0AA1 implements a multiplexed sigma-delta ADC architecture shared across its eight input channels. Each channel is individually configurable via TIA Portal parameter assignment records (PA records) transmitted over the ET 200SP backplane bus during startup or online reconfiguration. The module’s internal microcontroller sequences through the channel multiplexer, applies the appropriate input range scaling, and executes the sigma-delta conversion at the selected integration time — 6.25 ms for 50 Hz suppression or 5.56 ms for 60 Hz suppression. This integration-time-based noise rejection is a hardware-level filter, not a software moving average, which means it attenuates mains-frequency interference at the ADC stage before digitization, preserving the full 16-bit dynamic range for the actual process signal.

The module’s EMC design follows IEC 61000-4 series requirements. The analog front-end circuitry is physically separated from the digital logic section by a PCB ground plane partition. Transient voltage suppressors (TVS diodes) are placed at each input terminal to clamp electrostatic discharge events up to ±4 kV (contact discharge, IEC 61000-4-2 Level 3). The backplane bus interface uses transformer-coupled isolation to separate the module’s analog ground reference from the ET 200SP bus ground, preventing ground loop currents from corrupting measurement accuracy — a critical design consideration in installations where field instruments and the control cabinet share different ground potentials.

Wire-break detection for 4–20 mA channels is implemented by monitoring the input current against a hardware threshold of approximately 1.185 mA. When the measured current falls below this threshold, the module sets the QI (Quality Information) bit for that channel to “BAD” and generates a diagnostic interrupt to the CPU, allowing the application program to execute a fault response routine within the same scan cycle. This hardware-level detection eliminates the need for software polling of analog values to infer cable faults, reducing diagnostic latency from multiple scan cycles to a single interrupt service routine execution.

The module draws its operating power exclusively from the ET 200SP backplane bus (5 V DC internal bus), consuming a maximum of 1.5 W. This eliminates the need for a dedicated 24 V DC supply terminal on the module itself, simplifying cabinet wiring. For 2-wire transmitter applications, the 24 V loop supply is routed through the BaseUnit’s AUX terminal rail, which is fed from the ET 200SP power module (PM-E) — maintaining a clean separation between the transmitter loop supply and the module’s logic supply.

System Integration Benefits

• Zero-overhead PROFINET integration: The module is natively recognized by TIA Portal’s hardware catalog. Drag-and-drop configuration generates the correct GSD device description and IO address mapping without manual XML editing or third-party driver installation.
• Deterministic process image update: With PROFINET IO update rates configurable down to 1 ms on the IM 155-6 PN HF interface module, the analog values from this module are available in the CPU’s process input image within a bounded, predictable time window — essential for cascade PID loops where inner-loop cycle time directly affects stability margins.
• Channel-level diagnostic transparency: Each of the eight channels reports individual quality information (QI bits) accessible in the CPU’s diagnostic buffer and via OB82 (diagnostic interrupt OB). Maintenance personnel can identify a faulty field instrument at the channel level without interrupting the remaining seven channels or the overall control program.
• Hot-swap without process interruption: The module supports replacement under power when mounted on a compatible BaseUnit. The ET 200SP interface module continues operating the remaining slots during module extraction and re-insertion, limiting the impact of a hardware fault to the affected channels only.
• Flexible measurement range per channel: Each channel can be independently configured for current or voltage input and for the specific measurement range (e.g., 4–20 mA on channels 0–3, 0–10 V on channels 4–7) within a single module instance. This eliminates the need for separate modules for mixed-signal field devices on the same station.
• Interference suppression matched to local mains frequency: The 50 Hz / 60 Hz selectable integration time allows the module to be deployed in both European and North American installations without hardware changes, with the suppression frequency set via TIA Portal parameter assignment.
• Consistent scaling across the ET 200SP platform: The module uses Siemens’ standardized analog value representation (−27648 to +27648 for the nominal range), ensuring that PLC function blocks (FC105/FC106 or SCALE/NORM instructions in TIA Portal) operate identically across all ET 200SP analog modules, reducing software development and commissioning time.
• Reduced panel footprint: At 15 mm width per module slot, eight analog input channels occupy 15 mm of DIN rail space on the ET 200SP station — compared to 35–45 mm per channel for equivalent standalone signal conditioners. In a 24-channel analog acquisition panel, this translates to a reduction of approximately 480–720 mm of DIN rail length.
• TIA Portal online diagnostics: During live operation, TIA Portal’s online device view displays real-time channel values, diagnostic status, and parameter assignment state for the module without interrupting the running PLC program, enabling commissioning engineers to verify signal integrity at the field level from the engineering workstation.
• Long-term spare parts availability: Siemens maintains a minimum 10-year spare parts supply commitment for SIMATIC ET 200SP modules post-discontinuation, reducing lifecycle risk for plant operators with long equipment replacement cycles.
