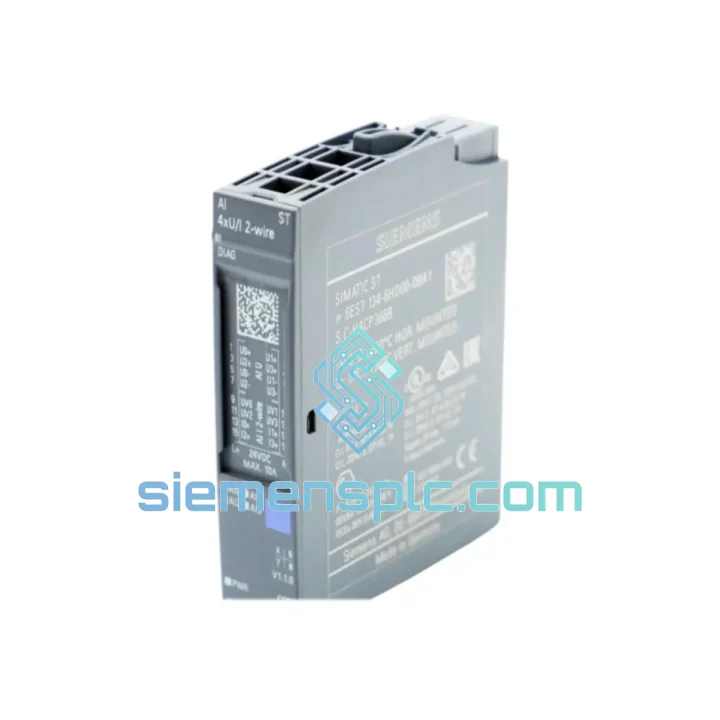

Siemens 6ES7134-6HD00-0BA1 Analog Input Module

6ES7134-6HD00-0BA1 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every minute your line is down, you’re bleeding money. The Siemens 6ES7134-6HD00-0BA1 4AI Analog Input Module for the SIMATIC ET 200SP system is on our shelf right now — not on a 6-week lead time from a distributor. We’ve handled enough emergency callouts to know that the difference between a 4-hour fix and a 3-day shutdown is whether the right module is in stock. Ours is. We ship same day from Xiamen via DHL Express or FedEx International Priority. Your process engineer will have it on the bench before your maintenance window closes.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 6ES7134-6HD00-0BA1 in a live ET 200SP rack is straightforward if you follow the sequence. Skip a step and you’ll be chasing a ghost fault for the next two hours.

Pre-Swap Checklist:

• Confirm the BaseUnit type before pulling the module. The -6HD00-0BA1 requires a light-colored BaseUnit (e.g., 6ES7193-6BP00-0BA0). Installing it on a dark BaseUnit will cause an immediate hardware fault — the module won’t initialize.
• Check TIA Portal for the current firmware version on the outgoing module. The replacement must match or exceed it. Mismatched firmware between the IM 155-6 and the AI module can trigger a STOP condition on the interface module.
• Note the channel parameterization: input type (U/I), wire mode (2-wire/4-wire), and filter settings. These are stored in the CPU project, not the module itself — but verify them in the hardware config before going live.

Replacement Procedure:

• Step 1 — Hot-swap capable: ET 200SP supports module replacement without powering down the rack. However, confirm with your safety plan — some process lines require a controlled shutdown regardless.
• Step 2 — Pull the module: Press the orange release lever on the BaseUnit, slide the module straight out. No tools required.
• Step 3 — Seat the replacement: Align the new 6ES7134-6HD00-0BA1 with the BaseUnit guide rails and press firmly until you hear the latch click. A partial seat will cause intermittent channel faults that are extremely difficult to diagnose remotely.
• Step 4 — Check the diagnostic LED: After power-up, the module’s RUN LED should go solid green within 3 seconds. A flashing red DIAG LED indicates a parameterization mismatch — go back to TIA Portal and re-download the hardware configuration.
• Step 5 — Verify channel signals: Use the TIA Portal online diagnostics or a handheld process calibrator to inject a known signal (e.g., 4 mA or 0 V) on each channel and confirm the PLC is reading the expected value.

Common Fault Codes on This Module:

• 0x0200 — Wire break detected: Occurs on 4–20 mA channels when the loop current drops below 3.6 mA. Check field wiring continuity before condemning the module.
• 0x0201 — Overflow / Underflow: Input signal exceeds the configured range. Verify transmitter output and scaling in the hardware config.
• 0x0300 — Supply voltage fault: The 24 V DC backplane supply has dropped below threshold. Check the power module (e.g., 6ES7138-4CA01-0AA0) upstream in the rack.
• 0x0500 — Parameter assignment error: Firmware version mismatch or corrupted GSD file. Re-download hardware config from TIA Portal with a fresh GSD import.

Reliability in Harsh Conditions

The ET 200SP platform was engineered for installation in the field, not just in climate-controlled control rooms. The 6ES7134-6HD00-0BA1 is validated to operate continuously across the full 0–60 °C range without derating — relevant when your cabinet is sitting next to a furnace or in an outdoor enclosure in summer.

Vibration resistance is rated to IEC 60068-2-6 (sinusoidal, 5–150 Hz, 1 g) and IEC 60068-2-27 (shock, 15 g / 11 ms). In practice, this means the module holds up on machine tools, compressor skids, and mobile equipment where lesser I/O hardware develops intermittent faults within months.

The conformal coating on the PCB provides protection against condensation and airborne contaminants — a real-world concern in food processing, chemical dosing, and coastal installations where humidity cycles daily. The IP20 rating covers the terminal face; the electronics inside are protected beyond what the enclosure rating suggests.

ATEX Zone 2 certification (Group IIC, T4) means this module can be deployed in areas where explosive gas atmospheres may occasionally be present — petrochemical, offshore, and solvent-handling environments where a non-certified module is simply not an option.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of the most logistics-efficient export hubs on the mainland, with direct access to DHL, FedEx, and UPS international gateways.

Standard Express Delivery Timeline:

• Southeast Asia (SG, MY, TH, VN, ID): 2–4 business days via DHL Express
• Middle East (AE, SA, QA, KW): 3–5 business days via FedEx International Priority
• Europe (DE, NL, PL, FR, IT): 4–6 business days via DHL Express Worldwide
• North America (US, CA, MX): 4–7 business days via FedEx IP or UPS Expedited
• Australia / New Zealand: 3–5 business days via DHL Express

What’s included with every shipment:

• Commercial invoice with correct HS Code (8537.10) for customs clearance
• Packing list and Certificate of Origin (CO) — FORM E available for ASEAN buyers
• Anti-static ESD packaging with foam insert — the module arrives in the same condition it left our shelf
• DHL/FedEx tracking number sent within 2 hours of dispatch
• Proforma invoice available for advance payment and import permit applications

For orders placed before 14:00 CST, same-day dispatch is standard. Contact us with your delivery deadline and we’ll confirm the fastest available routing before you commit to the order.
