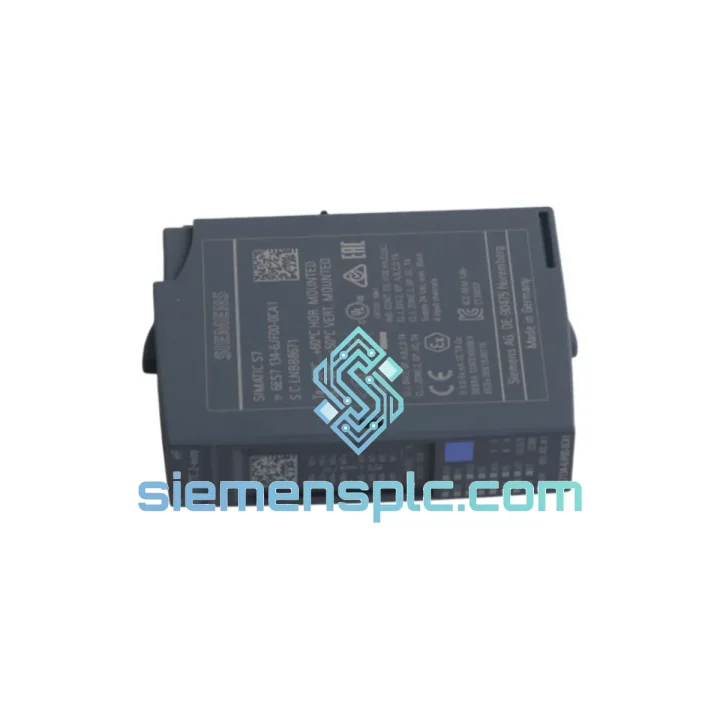

Siemens 6ES7134-6JF00-0CA1 Analog Input Module – ET 200SP

Siemens 6ES7134-6JF00-0CA1: 4-Channel 4…20 mA HART Analog Input Module for SIMATIC ET 200SP Distributed I/O

The 6ES7134-6JF00-0CA1 is a four-channel analog input module engineered for the SIMATIC ET 200SP distributed I/O platform. It acquires 4…20 mA current signals with per-channel HART communication, delivering 16-bit resolution process data directly onto the PROFINET backplane bus. Its 15 mm slim-line form factor allows high-density I/O station builds without sacrificing diagnostic depth or signal integrity — a combination that makes it the default specification for process instrumentation loops in industries where measurement accuracy and uptime are non-negotiable.

Unlike conventional analog input modules that treat HART as an afterthought, the 6ES7134-6JF00-0CA1 integrates HART communication at the silicon level on each channel independently. This means the primary process variable (PV) and up to three secondary HART variables (SV, TV, QV) are simultaneously accessible via acyclic PROFINET read services — no external HART multiplexer, no additional wiring, no added latency on the cyclic data path.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7134-6JF00-0CA1 implements a sigma-delta (ΣΔ) analog-to-digital conversion architecture on each of its four channels. This topology inherently suppresses high-frequency noise through oversampling and digital decimation filtering, yielding an effective noise-free resolution that approaches the full 16-bit word width under stable field conditions — a measurable advantage over successive-approximation (SAR) converters used in lower-cost modules.

Channel-level optical isolation separates the analog front-end from the backplane logic bus. The isolation barrier is implemented using capacitive coupling rather than optocouplers, which eliminates the LED aging degradation that affects optocoupler-based designs over a 10–15 year service life. This translates directly to stable isolation resistance across the module’s operational lifetime without recalibration.

HART modem integration is achieved by superimposing the FSK (Frequency Shift Keying) HART signal — 1200 Hz for logic ‘1’, 2200 Hz for logic ‘0’ — onto the 4…20 mA DC loop. The module’s internal HART modem handles the FSK demodulation independently per channel, with the decoded HART frames passed to the CPU via acyclic PROFINET services (Record Data Objects). This architecture ensures that HART communication does not introduce jitter or latency into the cyclic process data path; the 4…20 mA primary value continues to update at the configured scan rate regardless of HART transaction state.

EMC design on this module follows IEC 61000-4 series requirements. The PCB layout employs a split ground plane strategy: the analog measurement ground is physically separated from the digital logic ground, with a single-point star connection at the backplane connector. Ferrite beads and LC filter networks on the input traces suppress conducted interference in the 150 kHz–30 MHz range, maintaining measurement accuracy in environments with variable-frequency drives (VFDs), switched-mode power supplies, and high-current motor starters in the same cabinet.

Wire-break detection operates by monitoring the loop current continuously. When the measured current falls below 3.6 mA — below the valid 4 mA live-zero threshold — the module flags a wire-break diagnostic event and sets the corresponding channel status bit in the process image. This event is propagated to the CPU within one bus cycle, enabling the application program to execute a defined fault response (e.g., hold last value, substitute value, alarm output) without polling overhead.

System Integration Benefits

• Deterministic scan-cycle alignment: The module synchronizes its A/D conversion trigger to the PROFINET IRT (Isochronous Real-Time) bus cycle when used with an IM 155-6 PN HF or HS interface module, eliminating phase jitter between analog acquisition and the CPU’s process image update — critical for closed-loop PID control with sub-millisecond timing requirements.
• Transparent channel diagnostics via PROFINET: Each channel reports its status (OK, wire-break, overflow, underflow, short-circuit) as structured diagnostic data in the PROFINET alarm mechanism. TIA Portal’s hardware diagnostics view displays these states without custom programming, reducing fault isolation time from minutes to seconds during commissioning and maintenance.
• HART secondary variable access without additional hardware: Up to 4 HART variables per channel are readable via acyclic PROFINET Record Data Object 0xB02E. This eliminates the need for a separate HART multiplexer (e.g., Pepperl+Fuchs HiDMux2700 or equivalent), reducing BOM cost and panel wiring complexity in HART-dense installations.
• Hot-swap module replacement: With the correct Type A0 BaseUnit, the 6ES7134-6JF00-0CA1 supports hot-swap replacement under power. The interface module detects the new module, downloads the stored parameter set automatically, and returns the channel to operational status — a sequence that takes under 10 seconds and requires no CPU stop or PROFINET network interruption.
• Scalable station architecture: Up to 64 I/O modules can be combined in a single ET 200SP station (interface module dependent). The 15 mm module pitch means a 32-channel analog input station occupies 480 mm of DIN rail — approximately 35% less than an equivalent ET 200M station with SM 331 modules.
• Substitute value behavior on fault: TIA Portal allows per-channel configuration of substitute value behavior: hold last valid value, output a defined substitute value (e.g., 4 mA equivalent), or set to zero. This parameterization is stored in the interface module’s non-volatile memory and applied automatically on module replacement, ensuring consistent fault-state behavior without re-engineering.
• Integrated firmware update via TIA Portal: Module firmware can be updated online via the PROFINET network using TIA Portal’s firmware update function, without physical access to the module or removal from the BaseUnit. This is particularly relevant for installations in restricted-access locations such as offshore platforms or cleanroom environments.
• Consistent parameter assignment across station copies: TIA Portal’s station copy function replicates the complete parameter set — including HART configuration, diagnostic enable/disable per channel, and substitute values — to identical stations in the project. This eliminates manual re-entry errors when deploying multiple identical ET 200SP stations across a plant.

Quality Assurance & Global Logistics

Every 6ES7134-6JF00-0CA1 unit dispatched from our Xiamen facility is a genuine Siemens-manufactured component sourced through verified supply channels. The following verification and handling procedures apply to every order:

• Authenticity verification: Holographic label inspection, firmware version cross-reference against Siemens Industry Online Support records, and physical comparison against OEM packaging specifications. Counterfeit modules are identified and quarantined before they reach inventory.
• Functional bench test: Each module undergoes a powered functional test covering channel continuity, HART FSK handshake verification, and diagnostic response to simulated wire-break conditions before packaging.
• ESD-safe handling: Modules are stored and packed in anti-static shielding bags with humidity indicator cards. Foam-lined double-wall cartons with corner protection are used for all shipments.
• Serial number traceability: Batch records and individual serial numbers are logged at intake and dispatch. Full traceability documentation is available on request for quality-audited procurement processes.
• 12-month warranty: Coverage against manufacturing defects from date of dispatch. Dead-on-arrival (DOA) units are replaced within 7 business days, with advance replacement available for critical production environments.
• Global express logistics from Xiamen, China: DHL Express, FedEx International Priority, and UPS Worldwide Express are available. Standard transit times: Europe 3–5 days, North America 4–6 days, Southeast Asia 2–3 days. Air freight consolidation available for large-volume orders.
• Export documentation: Commercial invoice, packing list, and certificate of origin are provided as standard. EUR.1 movement certificates, Form E (ASEAN), and CO for specific bilateral trade agreements are available on request.
