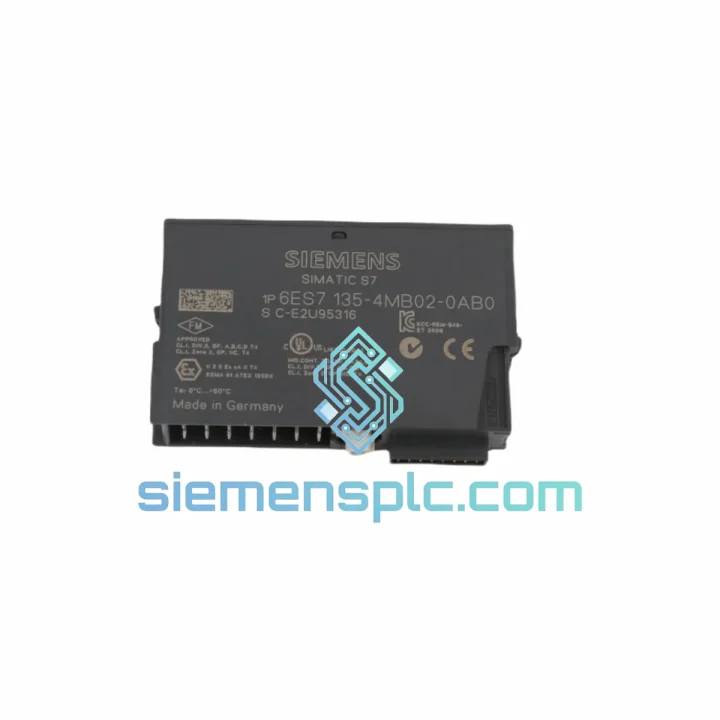

Siemens 6ES7135-4MB02-0AB0 Analog Output Module – SIMATIC ET 200S

Siemens 6ES7135-4MB02-0AB0 — Precision 2-Channel Analog Output Module for ET 200S Distributed I/O

In distributed process control architectures, the analog output stage is the final translation layer between the controller’s digital computation and the physical world — proportional valves, variable-speed drives, electropneumatic positioners, and current-loop transmitters all depend on a stable, low-noise analog reference signal. The Siemens 6ES7135-4MB02-0AB0 is a 2-channel analog output module engineered for the SIMATIC ET 200S distributed I/O platform, delivering 13-bit output resolution across both voltage (±10 V) and current (0–20 mA / 4–20 mA) signal ranges. Its role within the ET 200S station is to serve as the terminal actuator interface — converting process setpoints computed by the S7 CPU into calibrated analog signals with a settling time fast enough to support closed-loop control cycles in the low-millisecond range.

The module slots into any ET 200S rack via its dedicated terminal module (TM-AO2×12mm, order ref. 6ES7193-4CA40-0AA0), establishing both the backplane bus connection and the field-side wiring termination in a single mechanical assembly. This two-part architecture — separating the active electronics from the passive wiring carrier — is the defining characteristic of the ET 200S system and the primary reason the 6ES7135-4MB02-0AB0 supports hot-swap replacement: the terminal module remains wired and powered while the active module is extracted and reinserted, eliminating the need to de-energize the station or disconnect field cables during maintenance.

Deployed across automotive body-in-white lines, chemical dosing skids, pharmaceutical HVAC systems, and water treatment facilities, this module has accumulated a substantial installed base in applications where output signal fidelity and diagnostic transparency are non-negotiable. Its compatibility with both STEP 7 Classic and TIA Portal engineering environments, combined with full PROFIBUS DP and PROFINET integration via the ET 200S interface module, makes it a direct fit for both legacy S7-300/S7-400 systems and modern S7-1500 architectures.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7135-4MB02-0AB0 implements a D/A conversion architecture based on a 13-bit sigma-delta DAC per channel. The digital process value is received from the ET 200S backplane bus — a synchronous serial interface operating at 12 Mbit/s — and transferred to the channel-specific DAC register via an internal ASIC that handles bus protocol decoding, channel multiplexing, and diagnostic state management simultaneously. The 13-bit resolution (8192 discrete steps) maps to the full output span: for the ±10 V range, each LSB corresponds to approximately 2.44 mV; for the 0–20 mA range, each LSB corresponds to approximately 2.44 µA. This granularity is sufficient for PID loop setpoint generation in most industrial process applications without requiring external signal conditioning.

Galvanic Isolation Architecture: Each output channel is galvanically isolated from the backplane bus and from the adjacent channel using optocoupler barriers on the digital side and DC/DC converter isolation on the power supply rail. This three-way isolation topology — channel-to-bus, channel-to-channel, and channel-to-PE — prevents ground loop currents from corrupting the output signal and protects the backplane bus from field-side transients. In installations where field wiring runs parallel to power cables or through electrically noisy environments (motor control centers, welding areas), this isolation architecture is the primary defense against common-mode interference injection.

EMC Design: The module’s PCB layout follows Siemens’ internal EMC design rules for SIMATIC hardware, including dedicated ground planes, filtered power entry, and shielded signal traces on the DAC output stage. The module meets EN 61000-6-2 industrial immunity requirements, including 2 kV surge immunity (line-to-earth) and 4 kV EFT/burst immunity — parameters that reflect real-world industrial electromagnetic environments rather than laboratory conditions.

Short-Circuit and Wire-Break Protection: The current output stage incorporates active current limiting that clamps the output at approximately 22 mA under short-circuit conditions, preventing thermal damage to the output driver transistor. In 4–20 mA mode, the module continuously monitors the loop current; if the measured current falls below approximately 1 mA (indicating an open-circuit condition), a wire-break diagnostic flag is set in the module’s status register and a diagnostic interrupt is generated to the CPU — enabling the control program to execute a safe-state response rather than continuing to operate on a stale setpoint.

Hot-Swap Mechanical Interface: The terminal module (TM-AO2) incorporates a mechanical interlock that sequences the backplane bus connection before the L+ supply connection during module insertion, and disconnects L+ before the bus during extraction. This sequencing prevents bus contention and voltage spikes on the 24 V rail during live replacement — a detail that distinguishes the ET 200S mechanical design from simpler DIN-rail I/O systems that require station power-down for module changes.

System Integration Benefits

• Deterministic output update cycle: The module’s output registers are updated synchronously with the ET 200S backplane bus cycle, which is itself synchronized to the PROFIBUS DP or PROFINET IRT cycle. This ensures that the analog output value changes at a precisely defined point in the control cycle, eliminating jitter-induced setpoint variation in time-critical control loops.
• Transparent diagnostics via standard interrupt model: Wire-break, short-circuit, and supply voltage fault conditions each generate a distinct diagnostic interrupt with a structured diagnostic record (DS0/DS1 format) readable by the CPU program. No custom polling logic is required — the standard OB82 diagnostic interrupt handler receives the fault data directly.
• Dual output mode without hardware change: Voltage and current output modes are configured via software parameter assignment in STEP 7 or TIA Portal. Switching between ±10 V and 4–20 mA requires only a parameter download — no jumper changes, no rewiring — reducing commissioning time and eliminating the risk of hardware misconfiguration.
• Seamless TIA Portal hardware catalog integration: The module appears as a pre-configured device in the TIA Portal hardware catalog (ET 200S → Analog Modules → AO). Parameter assignment, I/O address mapping, and diagnostic configuration are handled through the standard device configuration interface, with no manual GSD file management required for PROFINET deployments.
• Scalable station architecture: Up to 63 I/O modules can be combined in a single ET 200S station (subject to power budget constraints), allowing the 6ES7135-4MB02-0AB0 to be mixed with digital I/O, analog input, and technology modules in a single rack — reducing the number of field junction boxes and simplifying cable routing.
• Substitute value behavior on CPU fault: When the CPU enters STOP mode or the PROFIBUS/PROFINET connection is interrupted, the module can be configured to hold the last valid output value or switch to a defined substitute value (e.g., 4 mA for a 4–20 mA loop). This behavior is parameterized per channel and prevents actuators from driving to an undefined state during controller faults.
• Consistent spare parts strategy: The 6ES7135-4MB02-0AB0 is backward-compatible with the -4MB01- hardware revision and uses the same terminal module, meaning existing installed racks can accept the current revision without mechanical or wiring modifications — simplifying MRO procurement and reducing spare parts SKU proliferation.
• ATEX Zone 2 suitability: With appropriate system-level certification documentation, the ET 200S platform including this module can be deployed in Zone 2 hazardous areas (gas group IIC, temperature class T4), extending its applicability to offshore, chemical, and refinery environments where standard industrial equipment cannot be used.

Quality Assurance & Global Logistics

Every 6ES7135-4MB02-0AB0 unit supplied by siemensplc.com is sourced as genuine Siemens-manufactured hardware. Units are inspected upon receipt against the following criteria: housing integrity and label authenticity (holographic Siemens security label verification), connector pin condition (no bent or oxidized contacts on the backplane bus connector), hardware revision marking (stamped on the module housing and cross-referenced against the Siemens SIOS product lifecycle database), and functional output verification using a calibrated ET 200S test rack with traceable measurement equipment.

Shipments originate from our warehouse in Xiamen, China — a major export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for every shipment. For customers requiring HS code classification, we provide the module’s standard classification reference (HS 8537.10) as a starting point, with the recommendation to confirm with your local customs broker. ESD-safe anti-static packaging with humidity indicator cards is used for all shipments. Typical transit times: 3–5 business days to Europe and North America; 2–4 business days to Southeast Asia and the Middle East.

All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed via email with a return merchandise authorization (RMA) number issued within 24 hours of fault confirmation.
