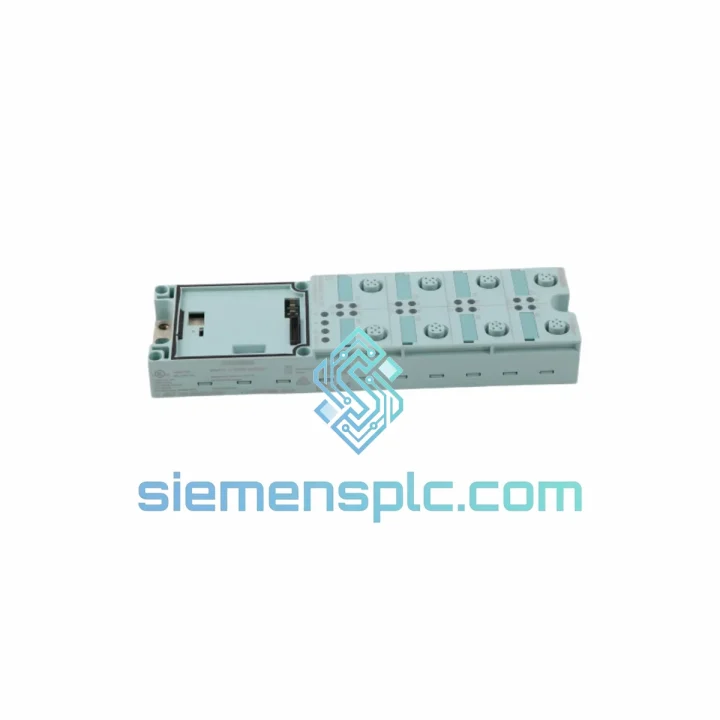

Siemens 6ES7143-3BH00-0XA0 Distributed I/O Module – ET 200X

6ES7143-3BH00-0XA0: Machine-Mounted Combination I/O Node for PROFIBUS DP Distributed Control Architectures

The Siemens 6ES7143-3BH00-0XA0 is a digital combination expansion module within the SIMATIC ET 200X distributed peripheral station platform. It integrates eight 24 VDC IEC 61131-2 Type 1 digital inputs and eight 24 VDC PNP transistor outputs into a single IP67-rated aluminum housing, enabling direct machine-frame mounting without a sealed control enclosure. The module attaches mechanically and electrically to an ET 200X base module — BM 141 or BM 143 — and participates in PROFIBUS DP communication at data rates up to 12 Mbit/s. This architecture positions the I/O node within 0.5 m of the actuators and sensors it serves, reducing field wiring length, eliminating terminal-block intermediaries, and lowering the probability of wiring-induced commissioning faults.

In a typical machine cell, the 6ES7143-3BH00-0XA0 handles discrete control loops: proximity sensor feedback on input channels drives solenoid valve commands on output channels within the same PROFIBUS DP scan cycle. At 12 Mbit/s, the 16-byte I/O exchange for this module completes in under 0.8 ms, which is well within the deterministic window of an S7-1500 OB1 cycle configured at 1 ms. The module’s channel-level diagnostic reporting — short-circuit detection on each DO, wire-break detection on each DI — surfaces fault data in the PROFIBUS DP diagnostic telegram without requiring a separate diagnostic scan or halting the control program.

The module is rated for operation from −25 °C to +60 °C and carries ATEX II 3 G certification when assembled with an approved ET 200X base module, making it applicable in chemical dosing stations, paint spray booths, and solvent-handling conveyors where occasional explosive gas atmospheres are classified. Its M12 circular field connectors provide IP67 sealing at every cable entry point, with a mechanical mating cycle rating exceeding 100,000 insertions — a figure that accommodates frequent cable swaps during machine reconfiguration over a 15-year service life.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The input stage of the 6ES7143-3BH00-0XA0 employs per-channel optocoupler isolation with a rated common-mode rejection voltage of 500 VDC. In distributed machine installations where cable runs between the ET 200X station and the host PLC rack exceed 20 m, ground potential differences of 10 – 50 V are routinely measured between structural steel sections. The 500 VDC isolation barrier prevents these potentials from coupling into the ET 200X backplane bus, which operates at 5 VDC logic levels. Without this isolation, even a 2 V ground offset would corrupt PROFIBUS DP differential signaling and generate intermittent communication faults that are difficult to reproduce under controlled test conditions.

Each input channel incorporates a fixed 3 ms RC hardware filter ahead of the optocoupler. This filter attenuates contact bounce from mechanical limit switches and relay contacts — a signal artifact that typically spans 0.5 – 5 ms and would otherwise generate spurious rising-edge interrupts in the host CPU’s process image. The filter is implemented in passive hardware rather than firmware, meaning its behavior is deterministic and independent of CPU load or scan cycle jitter.

The output transistor drivers integrate two protection mechanisms at the silicon level. First, a freewheeling diode clamps inductive kickback from solenoid valves and relay coils to within 1 V above the supply rail, limiting the peak transient voltage that the transistor junction must absorb. Second, a thermal shutdown circuit monitors junction temperature and opens the output gate at approximately 150 °C, resetting automatically once the die cools below the hysteresis threshold. This self-protecting behavior prevents permanent transistor failure under sustained overload without requiring an external fuse or circuit breaker on each output channel.

The module’s EMC architecture bonds the M12 connector shells directly to the aluminum housing, which connects to the ET 200X station ground rail through the base module’s mounting interface. This creates a continuous shielded enclosure from the cable shield termination point through to the station earth conductor, attenuating conducted interference in the 150 kHz – 30 MHz band. The assembly meets IEC 61000-4-2 (ESD, ±8 kV contact discharge), IEC 61000-4-4 (electrical fast transient, 2 kV), and IEC 61000-4-5 (surge, 1 kV line-to-earth) immunity levels without external suppression components — a compliance posture that simplifies CE marking documentation for OEM machine builders.

System Integration Benefits

• Enclosure elimination: IP67 sealing permits direct machine-frame mounting, removing the need for a sealed cabinet, climate control unit, and associated cable gland infrastructure — a cost reduction of 30 – 40% on distributed I/O installation projects.
• Sub-millisecond I/O exchange: At 12 Mbit/s PROFIBUS DP, the 16-byte process data frame for this module transfers in under 0.8 ms, maintaining synchronization with S7-1500 OB1 cycles as short as 500 µs without introducing measurable jitter.
• Channel-level fault isolation: Individual short-circuit, overload, and wire-break diagnostic bits are mapped into the PROFIBUS DP diagnostic telegram, allowing maintenance personnel to identify the specific channel and field device at fault without interrupting the production cycle or using a handheld meter.
• Hot-swap module replacement: The ET 200X mechanical design supports module extraction and reinsertion under station power. The base module sustains PROFIBUS DP communication during the swap interval, and the replacement module receives its parameterization automatically from the stored GSD configuration — mean repair time under 3 minutes in field conditions.
• Scalable station expansion: Up to seven expansion modules stack on a single ET 200X base module, scaling the station from 8 to 56 digital I/O points without consuming additional PROFIBUS DP addresses or requiring gateway hardware.
• Native TIA Portal integration: The module’s GSD file loads into TIA Portal V13 SP1 and all subsequent versions. Hardware configuration, I/O address mapping, and online diagnostics are managed within the same project tree as the host S7 CPU, eliminating the separate configuration utilities required by third-party distributed I/O platforms.
• ATEX Zone 2 deployment: When assembled with an approved ET 200X base module, the station carries ATEX II 3 G certification, permitting installation in areas with occasional explosive gas atmospheres — applicable in chemical dosing, paint spray, and solvent-handling processes.
• Extended lifecycle commitment: Siemens’ product lifecycle management program guarantees spare parts availability for a minimum of 10 years post-discontinuation, reducing the obsolescence risk for OEMs designing machines with 15 – 20 year service expectations and for end-users managing multi-decade plant assets.

Quality Assurance & Global Logistics

Each 6ES7143-3BH00-0XA0 unit shipped from our Xiamen, China facility is a genuine Siemens-manufactured component procured through verified supply channels with full chain-of-custody traceability. Pre-shipment verification protocol includes date-code and label authentication against Siemens OEM packaging standards, functional power-on test with PROFIBUS DP bus enumeration confirmation, anti-static packaging with desiccant and humidity indicator card, and photographic documentation of the unit and packaging prior to dispatch.

Export documentation — commercial invoice, packing list, certificate of origin, and export packing declaration — is prepared for every international order. In-stock units ship within 1 – 3 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. Typical transit times: Western Europe 3 – 5 business days; North America 4 – 6 business days; Southeast Asia 2 – 3 business days. All shipments are covered by a 12-month warranty against manufacturing defects, with advance replacement coordination available for critical production downtime situations.
