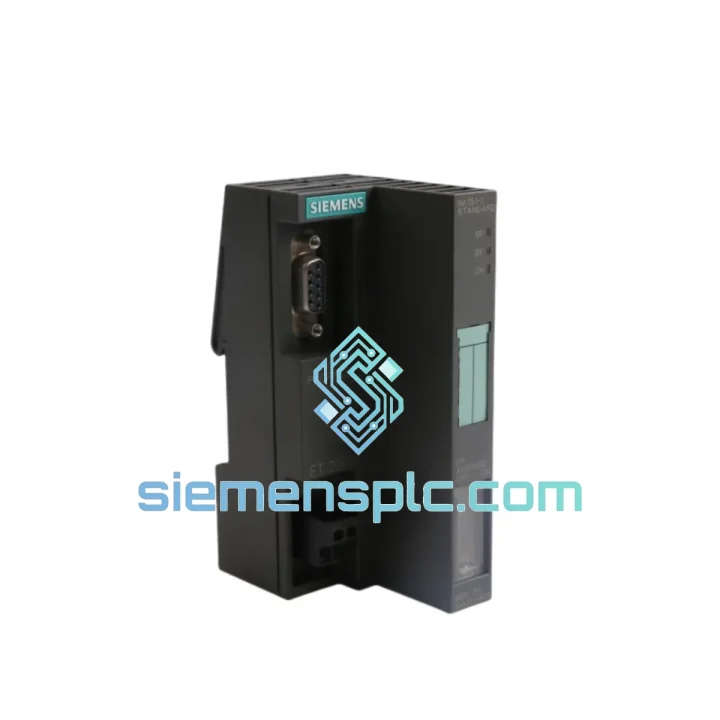

Siemens 6ES7151-1AA05-0AB0 PLC Interface Module

6ES7151-1AA05-0AB0 Down? Every Minute of Downtime Has a Price Tag — We Ship Today

Your ET200S station just dropped off the PROFIBUS segment. The BF LED is solid red. The S7-300 CPU is throwing OB86 — rack failure. Production is stopped. You’ve already pulled the IM151-1 Standard and confirmed it’s the culprit. Now you need a replacement module on-site, fast — not in three weeks from a distributor’s backorder queue.

We stock the Siemens 6ES7151-1AA05-0AB0 (IM151-1 Standard, ET200S PROFIBUS DP Interface Module) in Xiamen, China. Orders confirmed before 3:00 PM CST ship same day via DHL Express or FedEx International Priority. Most destinations in Southeast Asia receive within 48–72 hours. Europe and North America within 3–5 business days. No minimum order. No waiting for a quote to be approved by three departments.

This is the module that keeps your PROFIBUS segment alive. Don’t let a single failed IM cost you a shift — or a day.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Scenario: BF LED solid red, SF LED flashing, OB86 triggered on CPU

This is the classic IM151-1 failure signature. Before you condemn the module, run through this checklist — it takes 4 minutes and can save you from swapping a good module:

1. Check PROFIBUS cable continuity. Measure resistance between pins 3 and 8 at the IM’s Sub-D connector with the cable disconnected. Should read ≤ 5 Ω for a healthy segment. Open circuit or > 100 Ω means a cable or connector fault — not the IM.
2. Verify bus termination. The first and last physical device on the PROFIBUS segment must have termination active (DIP switch or integrated terminator ON). If the IM is at a segment end and termination is missing, you’ll get intermittent BF faults that look like module failure.
3. Check 24 V DC supply voltage at the TM-IM/IM terminal module. Measure between L+ and M terminals. Voltage below 20.4 V will cause the IM to drop off the bus. A failing PSU is a common root cause misdiagnosed as IM failure.
4. Confirm PROFIBUS address. The IM151-1 Standard sets its DP address via the address selector switches on the front face (two rotary switches, tens and units). After replacing the module, the address must be set to match the GSD configuration in STEP 7 or TIA Portal exactly. A mismatch causes immediate BF fault.
5. Hardware revision compatibility. If your STEP 7 project was configured with an older HW revision of the IM, a newer replacement module may trigger a configuration mismatch warning. In STEP 7 HW Config, right-click the IM → Object Properties → check “Use different module” if the revision differs. In TIA Portal, the hardware detection handles this automatically during online comparison.
6. GSD file version. Ensure the GSD file loaded in your DP master configuration matches the module’s firmware version. Download the current GSD from Siemens Industry Online Support (SIOS) if in doubt — file name: 6ES7151-1AA05-0AB0.gsd.

Replacement Procedure (field-verified, 15-minute swap):

1. Place CPU in STOP mode. Confirm all outputs are de-energized.
2. Disconnect PROFIBUS DP cable from the IM’s Sub-D connector.
3. Disconnect 24 V DC supply from the TM-IM/IM terminal module (L+ and M terminals).
4. Release the IM from the terminal module by pressing the orange release lever and sliding the module upward.
5. Set the PROFIBUS address on the replacement IM using the two rotary address switches — match exactly to the original module’s address (visible in STEP 7 HW Config or TIA Portal device properties).
6. Slide the replacement IM onto the TM-IM/IM terminal module until it clicks into place.
7. Reconnect 24 V DC supply. Confirm ON LED illuminates green.
8. Reconnect PROFIBUS DP cable. Confirm BF LED extinguishes within 5 seconds as the DP master re-establishes cyclic communication.
9. Place CPU in RUN mode. Monitor OB86 — no new calls confirm successful station recovery.

Common fault codes associated with IM151-1 failure: OB86 (rack/station failure), OB82 (diagnostic interrupt — module pulled/inserted), W#16#0A01 (station failure in diagnostic buffer), SF group error on CPU front panel.

Reliability in Harsh Conditions

The ET200S platform was not designed for climate-controlled server rooms. It was designed for the floor — marshalling cabinets next to hydraulic presses, junction boxes on conveyor frames, field panels in outdoor substations. The 6ES7151-1AA05-0AB0 carries the environmental ratings to back that up.

Vibration: Qualified to IEC 60068-2-6 — 10 to 58 Hz at 0.075 mm displacement amplitude, 58 to 150 Hz at 1 g acceleration. This covers the vibration spectrum generated by rotating machinery, press operations, and vehicle-mounted installations. The module’s backplane connector uses a positive-locking engagement mechanism that maintains contact integrity under sustained vibration without requiring additional mechanical retention.

Thermal cycling: Operating range of 0 °C to +60 °C (horizontal DIN rail mounting) accommodates the thermal swing inside a cabinet that cycles between ambient night temperatures and midday solar loading in tropical climates. The module’s conformal-coated PCB assembly resists the micro-cracking that causes intermittent failures in non-coated boards subjected to repeated thermal expansion and contraction.

Humidity and condensation: Rated to 95% relative humidity non-condensing per IEC 60068-2-30. In practice, this means the module survives the humidity conditions found in coastal industrial facilities, paper mills, and food processing plants where steam and washdown cycles drive ambient moisture levels well above typical office environments. The IP20 housing prevents direct water ingress from splash; for higher ingress protection, the module is installed inside IP54 or IP65 rated enclosures.

EMC immunity: Certified to EN 61000-6-2 (industrial immunity), covering conducted and radiated RF immunity, ESD (8 kV contact / 15 kV air discharge), electrical fast transient (EFT) at 2 kV, and surge immunity at 1 kV. In drive-heavy environments where VFDs generate significant conducted emissions on the 24 V DC supply rail, the IM151-1 Standard maintains stable PROFIBUS communication without requiring additional line filters — provided the 24 V supply is properly grounded and the PROFIBUS cable shield is terminated at one end per Siemens PROFIBUS installation guidelines.

Units shipped from our Xiamen warehouse are individually tested at 24 V DC before packaging. Modules that show any anomaly in power-on behavior, LED sequencing, or PROFIBUS communication establishment during bench test are quarantined and not shipped. You receive a module that has been confirmed operational — not one pulled from a shelf and assumed good.
