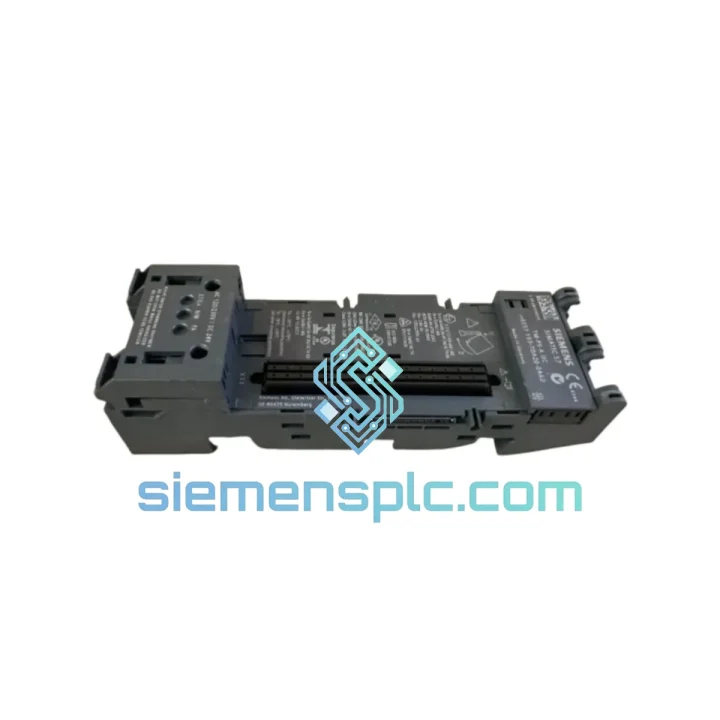

Siemens 6ES7193-7DA20-0AA0 ET 200SP BaseUnit

6ES7193-7DA20-0AA0 BaseUnit Failure: Your ET 200SP Rack Is Dead Until This Ships

The call comes in at 02:00. Fault light on the IM 155-6. Entire slice group offline. You pull the diagnostics and it points straight to the BaseUnit — 6ES7193-7DA20-0AA0, slot 4, bus continuity broken. The I/O modules are fine. The wiring is fine. The BaseUnit is not. You need one on a plane today, not in three weeks.

siemensplc.com maintains verified stock of the Siemens SIMATIC ET 200SP BU15-P16+A0+2D BaseUnit in our Xiamen facility. Same-day dispatch for orders confirmed before 14:00 CST. No minimum order. No waiting on a distributor’s quarterly allocation. One unit, shipped tonight, tracked to your door.

Every unit is sourced through authenticated supply channels. Factory-sealed packaging. Batch traceability on request. This is the exact component your system integrator specified — not a substitute, not a compatible alternative, not a refurbished pull.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on ET 200SP systems teach you one thing: the BaseUnit is the last thing technicians check and the first thing they should. The 6ES7193-7DA20-0AA0 is passive — no firmware, no configuration — but its failure modes are deceptive.

Fault Pattern 1 — IM 155-6 DIAG LED: Solid Red, No Module Faults Reported
This is the classic BaseUnit bus fracture signature. The IM sees the slot but cannot establish backplane communication. Root cause: the integrated bus connector has a hairline crack from repeated thermal cycling or a single mechanical impact. Swap the BaseUnit before touching anything else. Confirm with TIA Portal online diagnostics — if the slot shows “Module OK” after replacement, you found it.

Fault Pattern 2 — TIA Portal Diagnostic Buffer: 0x0200 / 0x0201 (Station Failure / Module Not Present)
After a power cycle, the IM cannot enumerate the slot. The P1/P2 rail contacts on the 6ES7193-7DA20-0AA0 are gold-plated but susceptible to oxidation in high-humidity environments. Inspect under magnification. If you see any discoloration on the contact fingers, the unit is condemned — cleaning is not a reliable fix in a production environment.

Fault Pattern 3 — Intermittent DI/DQ Channel Faults, Field Wiring Verified Good
The A0 auxiliary rail on this BaseUnit variant supplies reference potential to certain I/O module types. A degraded A0 contact causes sporadic signal dropout that perfectly mimics field wiring faults. Before you send a technician to check 32 field terminals, swap the BaseUnit. This saves hours.

Fault Pattern 4 — Hot-Swap Fails, Module Not Recognized After Insertion
Hot-swap on ET 200SP is not unconditional. Three prerequisites must all be true: (1) IM 155-6 firmware ≥ V3.0, (2) the slot is configured as hot-swap capable in TIA Portal hardware config, (3) the replacement BaseUnit order number matches exactly — a BU20 variant in a BU15 slot will not enumerate. Verify all three before concluding the replacement unit is faulty.

Replacement Procedure — Field Sequence:

• Pre-work: Export the TIA Portal hardware configuration and note the slot address. The 6ES7193-7DA20-0AA0 uses automatic slot addressing via the IM — no DIP switches, no manual node assignment. Document which I/O module type occupies this BaseUnit.
• Isolation: If hot-swap is not configured for this slot, execute a CPU STOP and de-energize the ET 200SP station at the 24 V supply. Do not simply pull the IM — this can corrupt the slot table and force a full hardware re-download.
• Extraction: Release the I/O module first using the orange lever (press inward, slide up). Then disengage the BaseUnit from the DIN rail — press the DIN rail clip downward and slide the unit toward the open end of the rail. The bus connector disengages automatically; do not force it.
• Inspection: Before installing the replacement, inspect the adjacent BaseUnit’s bus connector for damage. A failed unit that was caused by vibration often damages its neighbor. Check the DIN rail itself for deformation at the mounting point.
• Installation: Seat the new 6ES7193-7DA20-0AA0 onto the DIN rail and slide it toward the adjacent unit until the bus connector clicks audibly. Re-seat the I/O module. Restore 24 V supply.
• Verification: The IM 155-6 auto-enumerates the slot within 8–10 seconds. DIAG LED should return to green. In TIA Portal, confirm the slot shows the correct module type and no pending diagnostics. If the slot shows a different module type, the I/O module was re-seated in the wrong BaseUnit — recheck slot numbering from the IM outward.
• Critical variant check: The 6ES7193-7DA20-0AA0 carries the A0 auxiliary rail. If the I/O module in this slot requires an A1 rail (e.g., encoder power supply modules), this BaseUnit is the wrong variant. Cross-reference the I/O module’s BaseUnit compatibility table in Siemens manual A5E03576848 before installing.

Reliability in Harsh Conditions

The ET 200SP platform was not designed for clean rooms. It was designed for the floor — press shops, compressor stations, chemical dosing skids, paint booths. The 6ES7193-7DA20-0AA0 carries the certifications and test results to prove it.

Mechanical Stress: Validated to IEC 60068-2-6 sinusoidal vibration (5–150 Hz, 1g continuous) and IEC 60068-2-27 shock (15g peak, 11 ms half-sine). The DIN rail locking tab is spring-loaded stainless steel — it does not fatigue under the micro-vibration that causes plastic clips to crack over 18-month production cycles. The integrated bus connector eliminates the ribbon cable failure mode that plagued earlier distributed I/O generations.

Thermal Performance: Rated −30 °C to +70 °C operational. The push-in bus connector maintains contact force across the full thermal expansion range of the DIN rail and housing — no re-seating required after cold-start cycles in outdoor enclosures. Storage to −40 °C means units can be kept in unheated spare parts stores without degradation.

Moisture and Contamination: IP20 enclosure with conformal-coated bus PCB. Rated to 95% RH non-condensing per IEC 60068-2-78. In coastal and high-humidity plant environments where condensation is a recurring issue, the conformal coating is the difference between a five-year service life and a six-month replacement cycle.

EMC Immunity: Compliant with EN 61000-6-2 industrial immunity standard. The shielded backplane bus architecture suppresses conducted interference from VFDs, soft starters, and high-current contactors sharing the same cabinet. If you’ve been chasing spurious ET 200SP faults in a cabinet with a 75 kW drive, EMC susceptibility of a degraded BaseUnit is a legitimate suspect.

Hazardous Area Approval: ATEX Zone 2 / IECEx certified (gas group IIC, T4). This variant can be deployed in Zone 2 classified areas without additional barriers — relevant for chemical processing, offshore, and paint shop applications where standard modules are excluded by area classification.

All units shipped from our Xiamen facility are stored in climate-controlled conditions at 18–25 °C, 40–60% RH. Inventory is rotated on a FIFO basis. We do not ship units that have been in storage for more than 24 months without a pre-shipment inspection.

Global Express Logistics

Xiamen Gaoqi International Airport (XMN) operates direct cargo lanes to DHL Leipzig, FedEx Memphis, and regional hubs in Dubai, Singapore, and Hong Kong. When you order from siemensplc.com, your unit is not consolidating in Shanghai or Shenzhen — it moves directly from our warehouse to the cargo terminal.

• Order cutoff: 14:00 CST for same-business-day dispatch. Orders received after cutoff ship the following morning.
• DHL Express Worldwide: 3–5 business days to Europe (DE, NL, FR, IT, PL), Middle East (UAE, SA, KW), Southeast Asia (SG, TH, VN, ID), and Australia. 4–6 business days to the Americas (US, MX, BR, CL).
• FedEx International Priority: Available on request. 2–4 business days to major international hubs. Recommended when your maintenance window is fixed and transit time is the constraint.
• Export documentation: Commercial invoice, packing list, and certificate of origin issued with every shipment. HS Code 8538.90 declared. EX1 export declaration filed for EU-bound shipments.
• Customs experience: We have cleared shipments into Germany, Netherlands, UAE, India, Vietnam, Thailand, Mexico, Brazil, and Australia. Country-specific import requirements for industrial electronics are handled proactively — contact us before ordering if your country has licensing or import permit requirements for automation components.
• Tracking: AWB number provided within 2 hours of dispatch. Tracking link delivered via email and WhatsApp. We monitor shipments actively and flag customs holds before they become delays.
• Cargo insurance: Full declared-value coverage available on request. Standard on orders above USD 800. Required documentation for insurance claims is prepared by our logistics team — you don’t chase the carrier alone.

When your line is down, every hour has a cost. We’ve structured our entire logistics operation around that reality.

Contact Information

📧 Email: [email protected]
💬 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com
