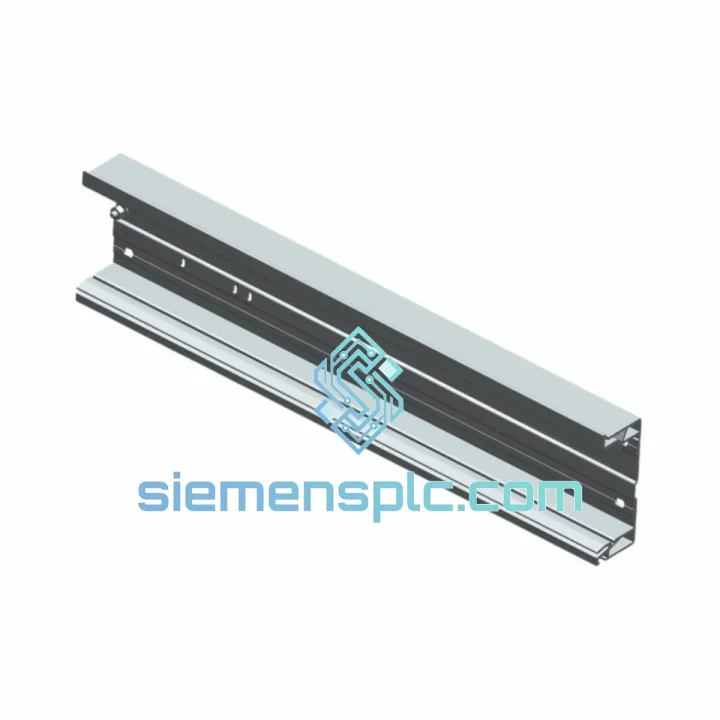

Siemens 6ES7195-1GG30-0XA0 Mounting Rail – ET 200M

Siemens 6ES7195-1GG30-0XA0 — 620 mm Mounting Rail for SIMATIC ET 200M Bus Module Assemblies

The Siemens 6ES7195-1GG30-0XA0 is a 620 mm profiled mounting rail engineered specifically for the SIMATIC ET 200M distributed I/O station. Within a PROFIBUS DP or PROFINET-based control architecture, the ET 200M station functions as a remote I/O node, bridging the fieldbus network to discrete and analog field devices. The rail itself is the structural and electromechanical foundation of that node: it positions bus modules at fixed 40 mm pitch intervals, maintains the mechanical alignment of the backplane bus connectors, and provides the grounding reference plane for the entire station assembly.

Unlike a generic 35 mm DIN rail, the 6ES7195-1GG30-0XA0 integrates a proprietary slot-and-latch geometry that accepts Siemens ET 200M bus modules (6ES7195-7xx00-0XA0 series) without tools. Each bus module snaps into a defined mechanical pocket, ensuring that the 48-pin backplane connector on the module aligns precisely with the mating connector on the adjacent module. Connector misalignment of even 0.3 mm can introduce intermittent bus errors under vibration; the OEM rail eliminates this variable by holding positional tolerance to ±0.1 mm across the full 620 mm span.

A 620 mm rail accommodates one interface module (IM 153-x) plus up to eight signal modules (SM 300/400 series), making it the correct choice for mid-density ET 200M stations with five to eight I/O modules. Stations requiring fewer than five modules should use the 480 mm variant (6ES7195-1GF30-0XA0); stations exceeding eight modules require the 830 mm variant (6ES7195-1GH30-0XA0).

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7195-1GG30-0XA0 rail performs three distinct hardware functions that are often underestimated in procurement decisions.

Backplane Bus Continuity: The ET 200M backplane is not a printed circuit board — it is a distributed bus formed by daisy-chaining individual bus modules. Each bus module carries the PROFIBUS DP or PROFINET data lines, the 24 V DC supply rail, and the PE conductor across its body. The mounting rail holds each bus module at a fixed lateral position so that the 48-pin blade connectors mate fully and remain mated under mechanical stress. Any lateral play in the rail geometry translates directly into connector fretting, which generates intermittent CRC errors on the fieldbus segment. The OEM rail’s slot geometry is machined to a tolerance that prevents lateral displacement exceeding 0.1 mm under a 10 G vibration load per IEC 60068-2-6.

EMC Ground Reference: The zinc-plated steel body of the rail provides a low-impedance ground path between the PE terminal of each bus module and the cabinet earth bar. In installations where high-frequency noise is present — variable-frequency drives, contactors, welding equipment — this ground plane attenuates common-mode interference before it reaches the signal module inputs. A generic DIN rail with paint or anodizing on the contact surface introduces a resistive discontinuity in this path; the Siemens rail’s zinc plating maintains contact resistance below 0.1 Ω across the full rail length.

Thermal Management: The rail’s steel mass acts as a passive heat spreader for the bus modules mounted on it. Bus modules dissipate a small but non-trivial amount of heat through their mounting feet. The rail conducts this heat laterally and into the cabinet backplate, reducing the thermal gradient across the station. In high-ambient-temperature installations (above 45 °C), this conduction path is a meaningful contributor to staying within the module’s 60 °C operating limit.

INS/REM Latch Mechanism: The tool-free insertion and removal feature is implemented via a spring-loaded latch on each bus module that engages a corresponding slot in the rail profile. The latch requires approximately 15 N of insertion force and provides audible confirmation of full engagement. This mechanism allows maintenance personnel to replace a failed I/O module in an active bus module configuration without disturbing adjacent modules, reducing mean time to repair (MTTR) in live production environments.

System Integration Benefits

• Deterministic bus timing preserved: OEM connector alignment eliminates the propagation delay variance introduced by misaligned connectors, maintaining the ET 200M station’s cycle time contribution within the PROFIBUS DP or PROFINET IO cycle budget.
• Hot-swap compatibility: When paired with active bus modules (6ES7195-7HB00-0XA0), the rail supports live module replacement without interrupting the fieldbus segment or the remaining I/O channels in the station.
• Scalable station density: The 620 mm length supports up to eight signal modules, covering the majority of mid-density distributed I/O applications without requiring a longer rail or a second station.
• Unified grounding topology: The integrated PE plane eliminates the need for separate ground jumpers between modules, simplifying cabinet wiring and reducing the number of potential ground loop paths.
• Diagnostic transparency: Proper mechanical alignment ensures that module status LEDs and STEP 7 / TIA Portal hardware diagnostics accurately reflect the physical state of each module, without false fault indications caused by connector intermittency.
• Reduced commissioning time: Tool-free INS/REM allows modules to be installed and repositioned during cabinet assembly without hand tools, reducing station build time by an estimated 20–30% compared to screw-mounted alternatives.
• Long-term spare parts availability: The 6ES7195-1GG30-0XA0 has been in continuous production since the ET 200M platform launch and remains available as a spare part for legacy S7-300 and S7-400 installations that are not yet migrated to ET 200SP or ET 200MP.
• Regulatory compliance retention: Using the OEM rail preserves the CE marking and UL listing of the ET 200M station assembly. Substituting a non-OEM rail may void the system-level certification, which is a compliance risk in regulated industries such as pharmaceuticals, food processing, and nuclear auxiliary systems.

Quality Assurance & Global Logistics

Every unit of the 6ES7195-1GG30-0XA0 supplied by siemensplc.com is sourced as genuine Siemens OEM product. New-in-box stock ships in original Siemens packaging with the manufacturer’s label, date code, and traceability markings intact. Each unit undergoes a pre-shipment inspection covering dimensional verification of the rail profile, latch mechanism function check, and surface condition assessment. A 12-month warranty applies from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Our logistics operation is based in Xiamen, China — a major export hub with direct access to international freight forwarders serving Europe, North America, Southeast Asia, the Middle East, and Australia. In-stock orders are processed within 24 hours of payment confirmation. Standard international shipment via DHL Express or FedEx International Priority reaches most destinations within 3–7 business days. For time-critical plant shutdowns or emergency MRO requirements, same-day dispatch is available on confirmed in-stock items when orders are placed before 14:00 CST.

Export documentation — including commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8538.90) — is prepared for every international shipment. Customers in regulated industries may request a material traceability report. Bulk orders of five or more units qualify for consolidated freight pricing; contact us for a freight-inclusive quotation.
