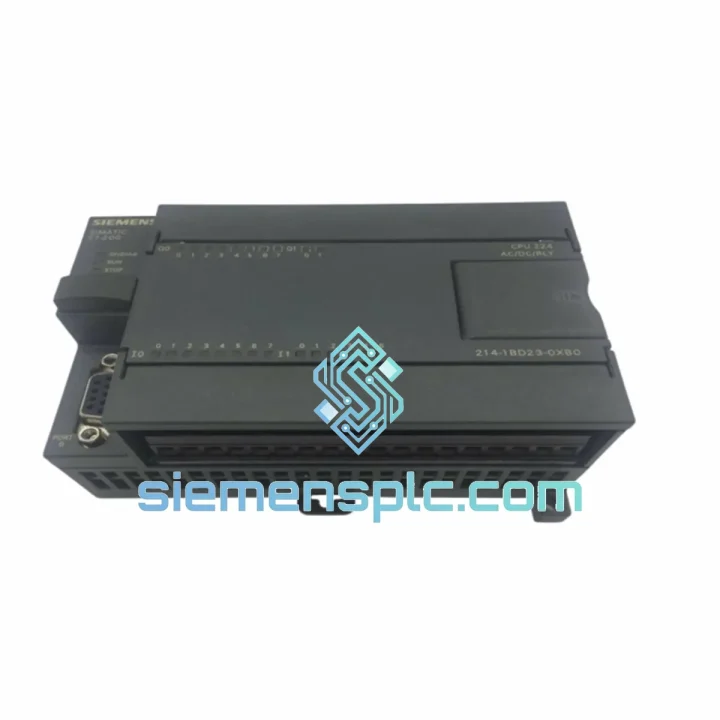

Siemens 6ES7214-1BD23-0XB0 CPU 224 PLC Module

Siemens 6ES7214-1BD23-0XB0 CPU 224 — Stop the Clock on Your Downtime

Every hour a production line sits idle because of a failed PLC CPU costs real money. The Siemens 6ES7214-1BD23-0XB0 — CPU 224 DC/DC/DC from the SIMATIC S7-200 series — is one of the most widely installed micro-PLC CPUs in Asian and European manufacturing. When it fails, there is no time for a 6-week lead time from a distributor. We stock this unit in Xiamen and ship globally via DHL/FedEx Express, with same-day dispatch for orders confirmed before 15:00 CST.

This is not a refurbished pull. This is a genuine Siemens unit, inspected, tested, and packed for immediate deployment. If your conveyor stopped, your packaging line tripped, or your HVAC controller went dark — this page is where you get back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 6ES7214-1BD23-0XB0 fails in predictable ways. Here is what field experience shows, and what to check before and after swapping the unit.

Common Failure Signatures

• SF/DIAG LED solid red, RUN LED off: Fatal CPU fault. Usually caused by EEPROM corruption from power cycling without proper UPS, or firmware mismatch after an unintended download. The CPU will not enter RUN mode. Replacement is the fastest path — attempting to recover via forced download often fails if the bootloader is affected.
• All outputs dead, inputs reading correctly: Transistor output stage failure. Common in environments with inductive loads (solenoids, relays) wired without flyback diodes. Check wiring before installing the replacement — the same fault will destroy the new unit within days.
• Intermittent communication loss on Port 0: RS-485 transceiver degradation. Often caused by ground loops between the CPU and HMI or SCADA. Verify cable shielding is grounded at one end only. If the new CPU resolves the issue, add a signal isolator to the bus.
• RTC drift or loss after power cycle: Backup battery (CR1025 or equivalent) is depleted. Replace the battery on the new unit before installation if the machine has been idle. Battery life is typically 200 days at 40 °C.
• CPU enters STOP mode randomly under load: Watchdog timeout caused by excessive scan time. Before condemning the CPU, check for runaway FOR-NEXT loops or unoptimized interrupt routines in the program. If the program is clean, the CPU’s internal oscillator is drifting — replace the unit.

Step-by-Step Replacement Procedure

1. Upload the existing program first. Connect via PC/PPI cable (6ES7901-3CB30-0XA0) or USB-PPI adapter. Use STEP 7-Micro/WIN → PLC → Upload to save the .mwp file. If the CPU is already dead and cannot communicate, check if a backup exists on the EEPROM card or in the HMI recipe memory.
2. Document the I/O wiring. Photograph the terminal block before disconnecting. The 6ES7214-1BD23-0XB0 uses a removable terminal block — label each wire before pulling the connector.
3. Power down the panel. Isolate 24 VDC supply to the CPU and all expansion modules. Wait 30 seconds for capacitors to discharge.
4. Remove expansion modules carefully. Disconnect the I/O bus connector on the right side of the CPU before sliding out the expansion modules. Do not pull modules while the bus connector is engaged.
5. Verify firmware compatibility. The replacement unit ships with firmware V2.0. If your STEP 7-Micro/WIN version is older than V4.0 SP5, update the software before downloading the program. Firmware mismatch causes a non-fatal error (SF LED blinks) that is often misdiagnosed as a hardware fault.
6. Set the CPU operating mode switch. The mode selector on the front panel must be in STOP position before downloading the program. After successful download, switch to RUN and verify the SF LED extinguishes within 5 seconds.
7. Check expansion module addressing. The S7-200 assigns I/O addresses automatically based on physical slot position — there are no DIP switches to set. Verify the I/O map in your program matches the physical module order after reinstallation.
8. Force a full I/O test. Use the Status Chart in STEP 7-Micro/WIN to force each output ON/OFF and verify field device response before returning the machine to automatic mode.

Reliability in Harsh Conditions

The SIMATIC S7-200 CPU 224 was designed for installation inside standard industrial control panels — not laboratory environments. The 6ES7214-1BD23-0XB0 carries design margins that matter in real plant conditions:

• Vibration resistance: Tested to IEC 60068-2-6 (sinusoidal, 10–57 Hz, 0.075 mm amplitude; 57–150 Hz, 1g). Suitable for installation on machinery frames with moderate vibration, provided the panel is mounted on anti-vibration isolators per Siemens installation guidelines.
• Thermal derating: Rated to +55 °C ambient inside the panel. In practice, panels in foundries and outdoor enclosures regularly exceed this. The CPU includes internal thermal monitoring — if the junction temperature approaches limits, the CPU logs a diagnostic event before faulting. This gives maintenance teams a warning window rather than a sudden stop.
• EMC immunity: Compliant with EN 61000-4-2 (ESD, 4 kV contact / 8 kV air), EN 61000-4-4 (EFT, 2 kV), and EN 61000-4-5 (surge, 1 kV). The RS-485 ports include internal TVS protection. In high-noise environments (VFD-heavy panels), route communication cables in separate conduit from power wiring.
• Humidity tolerance: 5–95% RH non-condensing. In coastal or high-humidity environments, ensure the panel has a working door seal and consider a panel heater to prevent condensation during temperature cycling.
• Power supply transient tolerance: The CPU accepts 24 VDC ±20% (20.4–28.8 V). Internal hold-up time is approximately 10 ms — sufficient to ride through most power dips. For longer outages, a 24 VDC UPS module (e.g., Siemens SITOP) is recommended to prevent EEPROM write corruption during power loss.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This is not a drop-ship arrangement. Stock is physically on our shelves.

• Same-day dispatch: Orders confirmed with payment before 15:00 CST ship the same business day.
• DHL Express / FedEx International Priority: Transit times of 2–4 business days to Europe, Middle East, and Southeast Asia; 3–5 days to North and South America.
• Export documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10) prepared for every shipment. ECCN classification available on request for US import compliance.
• DDP shipping available: We can ship Delivered Duty Paid to most destinations, eliminating customs clearance delays on your end. Confirm at order time.
• Packaging standard: Anti-static ESD bag, foam-lined carton, moisture indicator card, and desiccant pack. Units arrive in the same condition they left our warehouse.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent to your email.

For urgent freight requirements — including charter courier for critical plant shutdowns — contact us directly. We have handled emergency shipments to offshore platforms, remote mining sites, and island facilities where standard courier networks do not reach.
