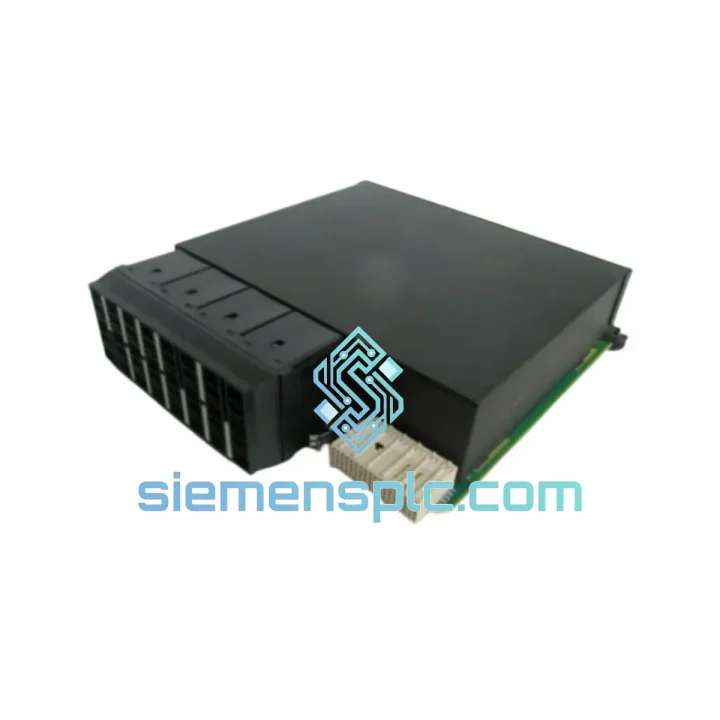

Siemens 6ES7216-2BD23-0XB0 PLC CPU Module

Siemens 6ES7216-2BD23-0XB0 — Stop the Clock on Your Downtime

Every minute your line is down, you’re bleeding money. A failed CPU 226 on a packaging machine, a conveyor system, or a water treatment station doesn’t wait for procurement cycles. The Siemens 6ES7216-2BD23-0XB0 — the highest I/O density controller in the entire S7-200 family — is physically in stock at our Xiamen warehouse right now. We’ve shipped this exact part number to plants in Southeast Asia, the Middle East, and Europe within 24 hours of order confirmation. If your line is down, this is the call you make.

This is not a listing built for browsing. It’s built for the engineer who already knows what they need and needs it yesterday.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a CPU 226 under pressure is where mistakes happen. Here’s what ten years of field replacements have taught us — skip any of these and you’ll be back on-site tomorrow.

1. Back up the program before you pull the old CPU. If the unit is still partially functional, connect via PC/PPI+ cable (6ES7901-3CB30-0XA0) and upload the program block, data block, and system block to your laptop using STEP 7-Micro/WIN. Do not assume the program is stored on a memory cartridge unless you physically see one installed.

2. Check for a memory cartridge (6ES7291-8GF23-0XA0). If one is present, the CPU will boot from the cartridge, not internal flash. Remove it before downloading your program to the replacement unit, or the cartridge program will overwrite your download on the next power cycle. This is the single most common mistake on emergency replacements.

3. Match the firmware version. The -0XB0 suffix denotes the hardware revision. Mixing hardware revisions with incompatible system blocks can cause SF/STOP faults on first power-up. Check the firmware version label on the CPU faceplate. If your STEP 7-Micro/WIN system block was compiled on a different hardware revision, re-read the system block from the new CPU before downloading.

4. Port address and baud rate. The CPU 226 ships with Port 0 defaulted to address 2 at 9.6 kbps PPI. If your HMI or SCADA is configured for a different node address, you must set the port parameters in the system block before downloading — or the HMI will fail to communicate and the operator will report a “communication fault” that has nothing to do with the CPU hardware.

5. Common fault codes on a degraded CPU 226:

• SF LED solid red + STOP: Fatal hardware fault. Non-recoverable. Replace the CPU. Do not attempt to clear with a power cycle loop — you will waste time.
• SF LED flashing + RUN: Non-fatal system fault. Read the error code via STEP 7-Micro/WIN → PLC → Information → Error Log. Common causes: I/O bus fault from a failed expansion module, or a corrupted data block.
• STOP after download: Almost always a system block mismatch or a program referencing I/O addresses beyond the configured expansion. Verify your EM configuration matches the physical modules on the bus.
• RTC drift or loss after power cycle: Battery is dead. The CR1025 coin cell is user-replaceable. A dead battery does not affect program execution but will corrupt time-stamped logs and scheduled tasks.
• Port 0 not responding to HMI: Check the RS-485 termination resistor. On long cable runs (>50 m), missing termination causes intermittent communication dropouts that look like CPU faults.

6. Transistor output inrush. The DC transistor outputs on the -2BD23 variant are sourcing type, rated 0.75 A per point. Inductive loads (solenoid valves, relay coils) must have flyback diodes fitted at the load — not at the CPU terminal. Missing flyback protection is the leading cause of premature output transistor failure on this model.

Reliability in Harsh Conditions

The S7-200 CPU 226 was not designed for climate-controlled server rooms. It was built for the floor — and the -2BD23-0XB0 variant has the field history to prove it.

The unit is rated for continuous operation from 0 °C to +55 °C with no derating. In practice, we’ve seen these CPUs running in enclosures where ambient temperatures regularly hit 50 °C during summer production peaks in Southeast Asian plants — no thermal shutdowns, no nuisance faults. The conformal-coated PCB resists condensation in high-humidity environments (up to 95% RH non-condensing), which matters in food processing and coastal installations where temperature swings cause moisture ingress in poorly sealed panels.

Vibration resistance is rated to IEC 68-2-6: 10–57 Hz at 0.075 mm displacement, 57–150 Hz at 1 g. This covers the vast majority of conveyor and packaging machine vibration profiles. The DIN rail mounting clip is steel, not plastic — it does not fatigue-crack after years of vibration the way cheaper rail clips do.

EMC performance is certified to EN 61000-4 series: 4 kV contact discharge, 8 kV air discharge (ESD), 2 kV burst on power lines, and 10 V/m radiated immunity. In practice, this means the CPU 226 coexists with VFDs, welding equipment, and high-current contactors in the same panel without spurious resets — provided the panel is properly grounded and cable segregation is maintained.

The unit carries CE, UL 508, cULus, and FM Class I Division 2 approvals. For hazardous location installations, the FM approval covers Groups A, B, C, and D — this is not a common certification for compact PLCs at this price point and is a key reason the CPU 226 remains specified in petrochemical and mining applications long after newer platforms have been introduced.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental: it gives us same-day handoff to DHL Express, FedEx International Priority, and UPS Worldwide Express for shipments to any major industrial region on the planet.

Standard dispatch timeline: Orders confirmed before 14:00 CST ship the same business day. Orders confirmed after 14:00 CST ship the following morning. There are no exceptions for weekends on urgent orders — contact us directly via WhatsApp for after-hours dispatch coordination.

Typical transit times from Xiamen:

• Southeast Asia (Thailand, Vietnam, Indonesia, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, Poland, UK): 4–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–6 business days via FedEx International Priority
• South Asia (India, Pakistan, Bangladesh): 3–5 business days via DHL Express
• Australia / New Zealand: 4–5 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of origin. HS Code 8537.10 is pre-declared on all export documentation. For customers requiring import duty pre-calculation or DDP (Delivered Duty Paid) terms, contact us before placing the order — we handle DDP regularly for customers in the EU and India where import compliance is complex.

Anti-static packaging with humidity indicator card is standard. For air freight, the unit is packed to IATA standards. We do not use bubble wrap alone — the CPU is foam-cradled in a rigid outer carton rated for the drop and compression forces of express courier handling.
