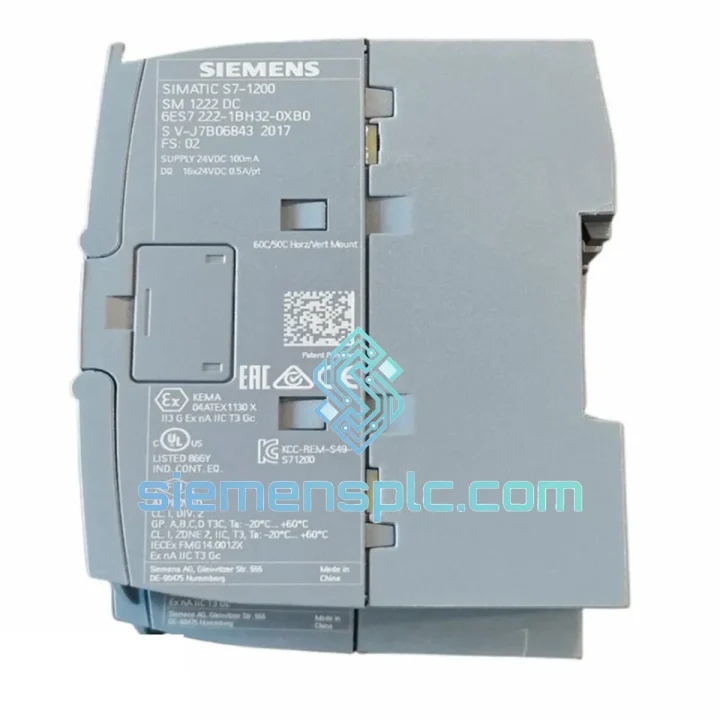

Siemens 6ES7222-1BH32-0XB0 Digital Output Module – SIMATIC S7-1200 SM 1222

Siemens 6ES7222-1BH32-0XB0 — SM 1222 16DO: High-Density Transistor Output Module for SIMATIC S7-1200 Control Systems

The Siemens 6ES7222-1BH32-0XB0 is a 16-channel digital output signal module (SM 1222) engineered for the SIMATIC S7-1200 compact PLC platform. Operating at 24 V DC with PNP (sourcing) transistor outputs rated at 0.5 A per channel, this module addresses the demand for high-density discrete output capacity within a 45 mm DIN-rail footprint. It connects directly to the S7-1200 CPU via the integrated expansion bus, requiring no additional communication hardware or gateway logic.

In a control loop architecture, the SM 1222 occupies the final output stage between the CPU’s process image output (PIO) and the physical field devices. On each PLC scan cycle, the CPU writes the updated PIO to the module over the internal expansion bus. The module’s output driver circuitry then latches the new state and drives the corresponding transistor switches within the same scan window, maintaining output determinism bounded by the CPU’s configured cycle time — typically 1–10 ms in standard S7-1200 applications. This tight coupling between logic execution and physical output switching is fundamental to achieving consistent actuation timing in sequenced machine operations such as indexing conveyors, pneumatic cylinder staging, and synchronised valve manifolds.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7222-1BH32-0XB0 implements a two-stage output architecture. The first stage is the optocoupler isolation barrier, which electrically decouples the 3.3 V CMOS logic domain of the expansion bus ASIC from the 24 V DC field domain. Each of the 16 channels uses a dedicated optocoupler, meaning a fault condition on one output channel — such as a short circuit or inductive transient — cannot propagate back through the isolation barrier to corrupt the logic bus or adjacent channels. The isolation withstand voltage of 500 V AC (1-minute test) satisfies the requirements of IEC 61131-2 for reinforced insulation in industrial environments.

The second stage is the power transistor driver. Each channel uses a discrete PNP-type power MOSFET configured in a high-side switch topology. In this arrangement, the load is connected between the transistor drain and the 0 V reference, while the source is tied to L+ (24 V DC). When the transistor is ON, current flows from L+ through the transistor and into the load. This sourcing configuration is compatible with standard 24 V DC sensors, solenoid valves, and relay coils that reference 0 V as their common return.

Short-circuit and overload protection is implemented per channel via an integrated current-sense resistor and comparator circuit. When the channel current exceeds approximately 0.75 A (150 % of rated), the protection circuit latches the transistor OFF and sets a diagnostic bit in the module’s status register. The CPU reads this register via the expansion bus and can generate a diagnostic interrupt (OB82) to alert the user program, enabling automated fault response without requiring external current monitoring hardware.

EMC performance is achieved through a combination of design measures: the PCB ground plane is split between the logic and field domains at the isolation barrier; all output traces are routed with controlled impedance and guarded by ground fills to reduce radiated emissions; and the module housing incorporates conductive gaskets at the DIN rail mounting points to provide a low-impedance chassis ground path. These measures collectively allow the module to meet IEC 61000-4-4 (electrical fast transient, 2 kV) and IEC 61000-4-5 (surge, 1 kV line-to-line) without external suppression components on the logic side.

System Integration Benefits

• Zero-configuration hardware detection: The S7-1200 CPU automatically identifies the SM 1222 on the expansion bus at power-up. TIA Portal reflects the module in the hardware catalog without requiring manual GSD file import, reducing commissioning time to under five minutes for a standard panel build.
• Deterministic output latency: Output state changes are applied within the same CPU scan cycle in which the PIO is updated. With a typical S7-1200 cycle time of 1–5 ms, the end-to-end latency from PLC logic execution to transistor switching is bounded and predictable — a prerequisite for time-sensitive sequencing applications.
• Per-channel diagnostic transparency: Each output channel reports its status (OK, short-circuit, overload, wire break on load-side variants) to the CPU via the expansion bus. This data is accessible in the user program through the I/O status area and can be forwarded to SCADA systems via PROFINET or Modbus TCP without additional hardware.
• Plug-in front connector for zero-downtime replacement: The optional 40-pin screw-terminal front connector (6ES7292-1AX30-0XA0) retains all field wiring when the module body is removed. Module swap during planned maintenance requires no rewiring, reducing mean time to repair (MTTR) to under two minutes.
• Scalable I/O expansion: Up to eight signal modules can be connected to a single S7-1200 CPU, allowing the 6ES7222-1BH32-0XB0 to be combined with digital input, analog input, and analog output modules in any configuration. The 16-channel density of this module maximises output points per expansion slot.
• Compatibility with S7-1200 safety CPUs: While the SM 1222 is a standard (non-safety) module, it can coexist in the same expansion rack as F-DQ safety output modules on S7-1200F CPUs, allowing mixed standard and safety I/O within a single compact controller assembly.
• Wide operating temperature range: The 0 °C to +55 °C horizontal operating range covers the majority of industrial panel environments without forced-air cooling, reducing panel design complexity and long-term maintenance burden.
• Proven ecosystem reliability: The S7-1200 platform has accumulated a global installed base across discrete manufacturing, process, and infrastructure sectors. The SM 1222 shares the same mechanical and electrical interface as all S7-1200 signal modules, ensuring long-term spare parts availability and cross-trained maintenance personnel.

Quality Assurance & Global Logistics

Every 6ES7222-1BH32-0XB0 unit dispatched from our Xiamen, China facility is a genuine Siemens-manufactured component sourced through verified industrial supply channels. Prior to dispatch, each unit undergoes a structured inspection protocol: visual examination of label integrity, connector pin condition, and housing for any evidence of resealing or remarking; firmware version confirmation against Siemens published release documentation; functional power-on test with an S7-1200 CPU under TIA Portal diagnostic monitoring; and anti-static packaging with humidity indicator card sealed inside.

Batch traceability records are retained for a minimum of five years, enabling full supply chain documentation for quality audits or warranty claims. Units are shipped in original Siemens packaging where available. All export shipments are accompanied by a commercial invoice, packing list, and HS code documentation (HS 8537.10) to support smooth customs clearance in destination countries.

Standard dispatch lead time is 1–3 business days for domestic China orders and 5–10 business days for international destinations via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. Urgent same-day dispatch is available for in-stock units — contact us via WhatsApp for availability confirmation before placing a time-critical order. All units are covered by a 12-month warranty from the date of dispatch, covering manufacturing defects and confirmed functional failures under normal operating conditions.
